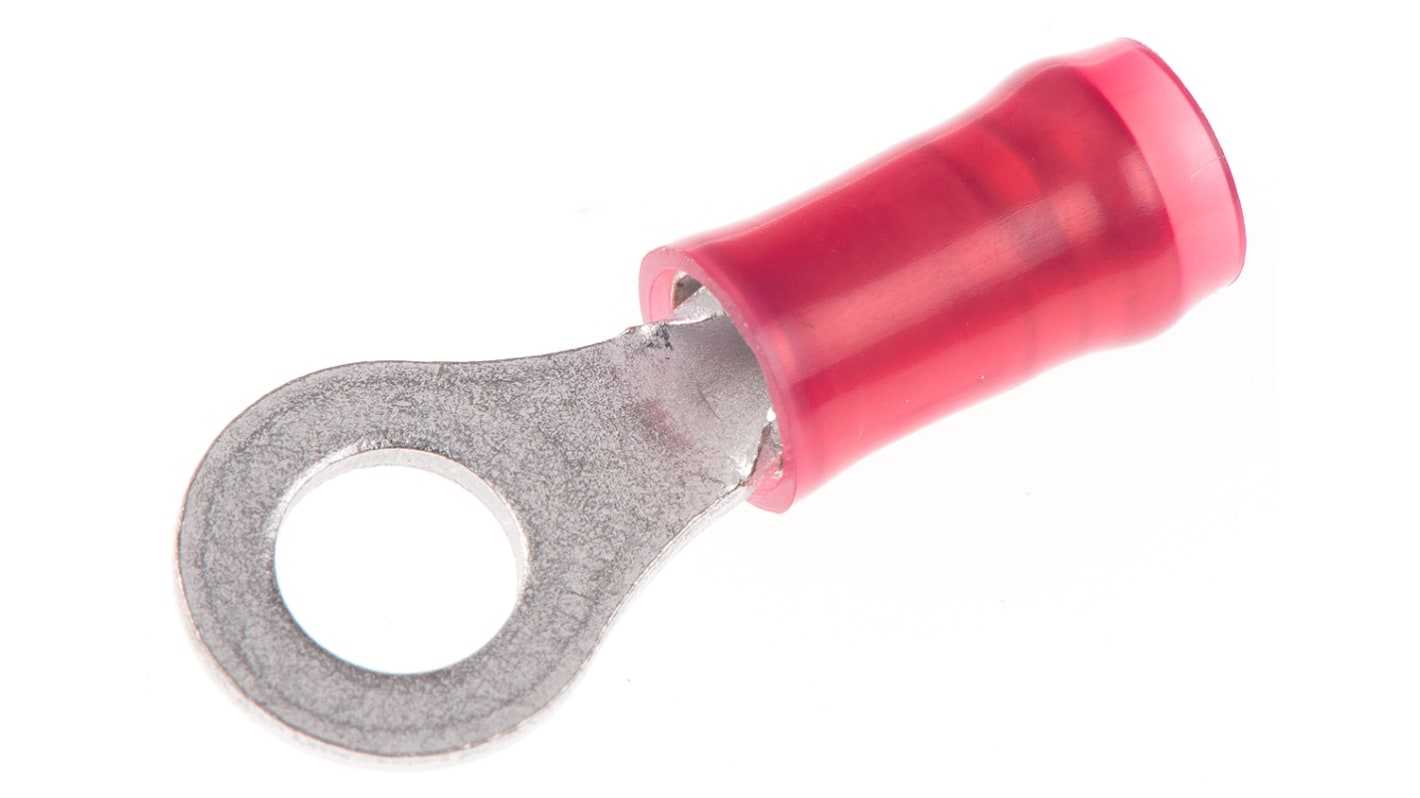

Te-connectivity Ring Terminals 2-31890-1

AED 1.77

Sale Sold out

Shipping calculated at checkout.

Quantity

Te-connectivity, TE Connectivity Insulated loop terminal, max wire dimens. 1.65mm , 16AWG, Red Alias: 403354103 PIDG R 22-16 COMM 22-18 MIL 8

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Series: PIDG
Insulation: Insulated
Insulation Material: Nylon
Inner Ring Diameter: 4.34mm
Outer Ring Diameter: 7.92mm
Minimum Wire Size mm²: 0.26mm²
Maximum Wire Size mm²: 1.65mm²
Maximum Wire Size (mm²): 1.65mm²
Minimum Wire Size (mm²): 0.26mm²

Minimum Wire Size AWG: 22AWG
Maximum Wire Size AWG: 16AWG
Maximum Wire Size (AWG): 16AWG
Minimum Wire Size (AWG): 22AWG
Stud Size: M4 (#8)
Colour: Red
Contact Plating: Tin
Contact Material: Copper
Thickness: 0.79mm
Overall Length: 21.44mm
