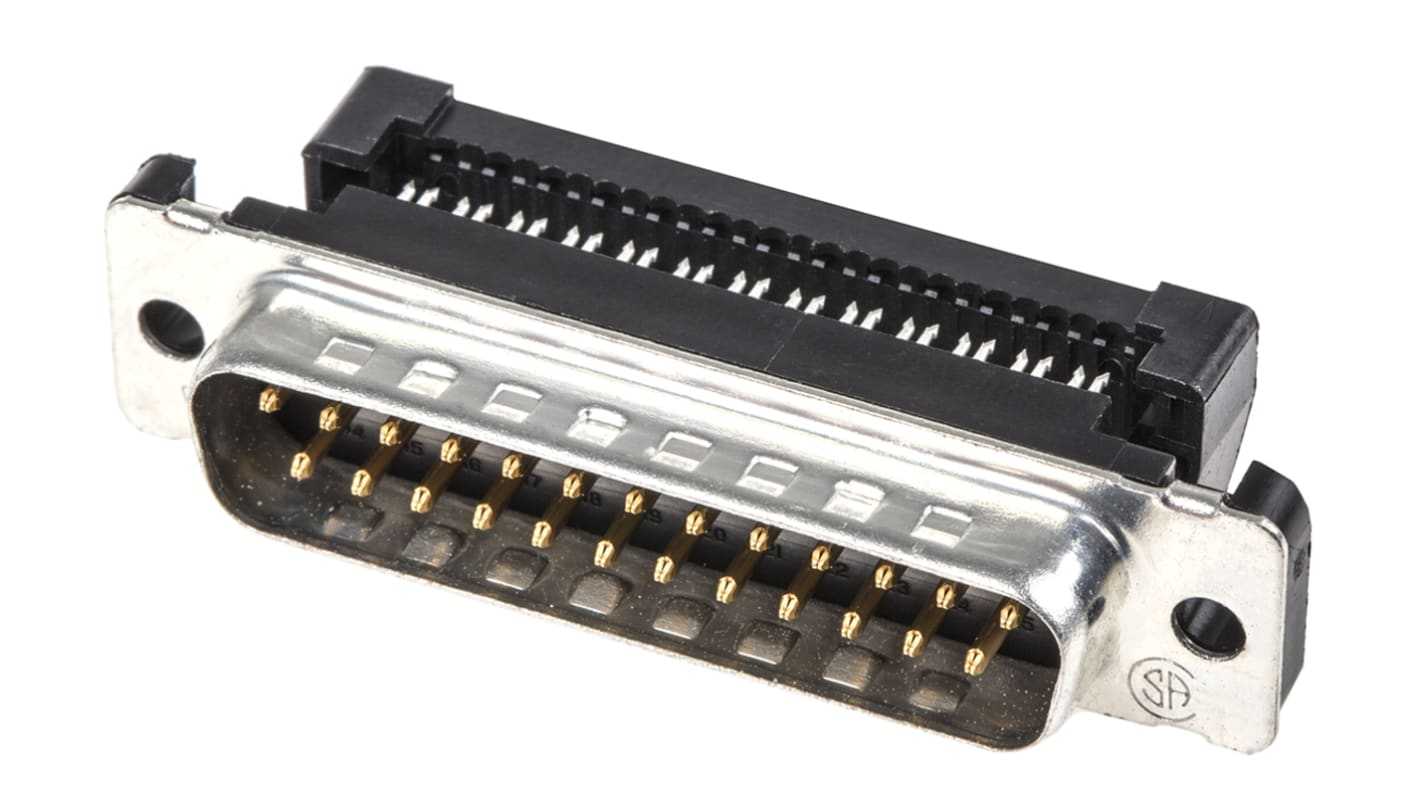

Te-connectivity D Sub Connectors 1658613-2

AED 28.60

Sale Sold out

Shipping calculated at checkout.

Quantity

Te-connectivity, IDC D-Sub Connectors, Plug, 28 â€“ 26 AWG Solid Wire Size, .1 â€“ .13 mm ² Solid Wire Size, Cable-to-Cable, 25 Position, AMPLIMITE HDF Alias: 106781625 POS HDF PLUG, MS, LEAD FREE

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Number Of Contacts: 25
Gender: Male
Body Orientation: Right Angle
Mounting Type: Cable Mount
Pitch: 2.76mm
Termination Method: IDC
Current Rating: 1.25A
Housing Material: Steel
Voltage Rating: 30.0 V

Length: 53.09mm
Width: 18.57mm
Depth: 12.59mm
Contact Material: Phosphor Bronze
Dimensions: 53.09 x 18.57 x 12.59mm
Series: AMPLIMITE HDF-20
Contact Plating: Gold over Nickel
Minimum Operating Temperature: -55.0°C
Maximum Operating Temperature: +105°C
