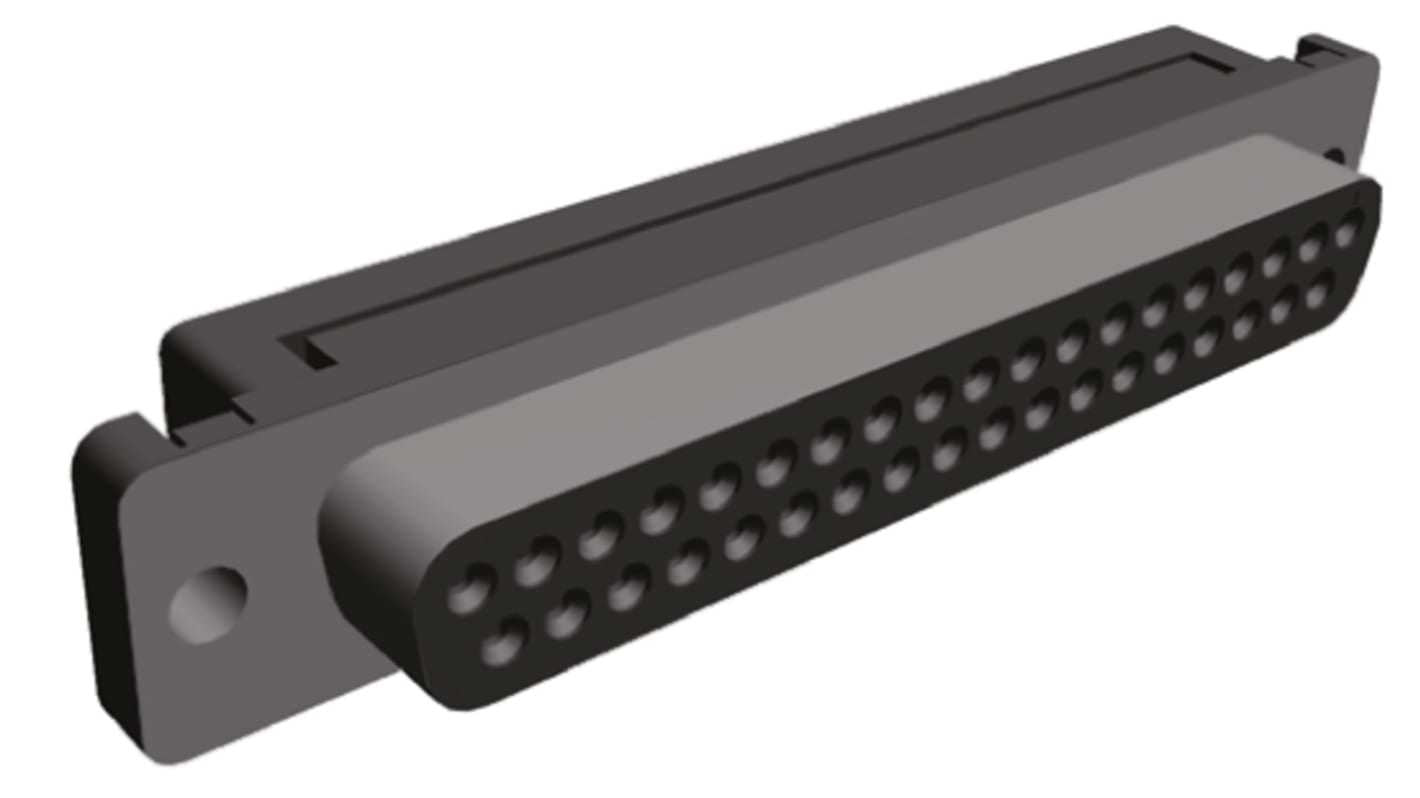

Te-connectivity D Sub Connectors 1658612-1

AED 30.41

Sale Sold out

Shipping calculated at checkout.

Quantity

Te-connectivity, IDC D-Sub Connectors, Receptacle, 28 â€“ 26 AWG Solid Wire Size, .1 â€“ .13 mm ² Solid Wire Size, Cable-to-Cable, 37 Position, AMPLIMITE HDF; Alias: 37 POS HDF RCPT, MS, LEAD FREE

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Number Of Contacts: 37
Gender: Female
Body Orientation: Right Angle
Mounting Type: Cable Mount
Pitch: 2.77mm
Termination Method: IDC
Current Rating: 1.25A
Housing Material: Steel
Voltage Rating: 250.0 V

Length: 69.39mm
Width: 18.61mm
Depth: 12.59mm
Dimensions: 69.39 x 18.61 x 12.59mm
Series: AMPLIMITE HDF-20
Contact Plating: Gold over Nickel
Contact Material: Phosphor Bronze
Minimum Operating Temperature: -55.0°C
Maximum Operating Temperature: +105°C
