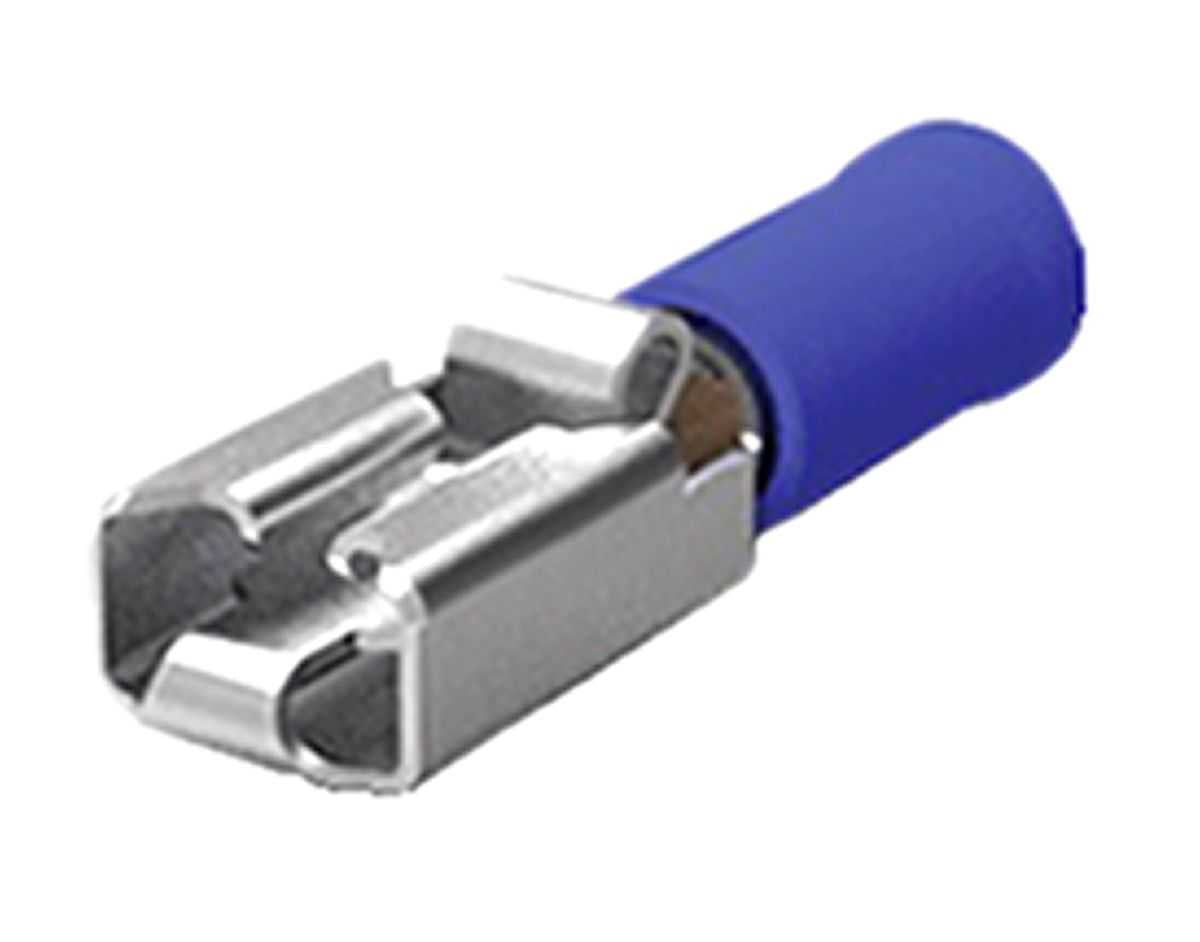

Te-connectivity Spade Connectors 165536-1

AED 4.00

Sale Sold out

Shipping calculated at checkout.

Quantity

Te-connectivity, Quick Disconnects, Receptacle, 15.5 â€“ 13.5 AWG Wire Size, 1.5 â€“ 2.5 mm ² Wire Size, 3000 â€“ 4919 CMA Wire Size, Mating Tab Width 6.35 mm [.25 in]; Alias: PIDG POS.LOCK ASSY

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Type: Receptacle
Series: PIDG Positive Lock .250 EX
Minimum Wire Size mm²: 1.5mm²
Gender: Female
Minimum Wire Size (mm²): 1.5mm²
Maximum Wire Size mm²: 2.5mm²
Maximum Wire Size (mm²): 2.5mm²
Tab Size: 6.35 x 0.81mm
Insulation: Insulated

Minimum Wire Size AWG: 15.5AWG
Maximum Wire Size AWG: 13.5AWG
Maximum Wire Size (AWG): 13.5AWG
Minimum Wire Size (AWG): 15.5AWG
Termination Method: Crimp
Colour: Blue
Contact Material: Brass
Contact Plating: Tin
Insulation Material: Nylon
Overall Length: 24.3mm
