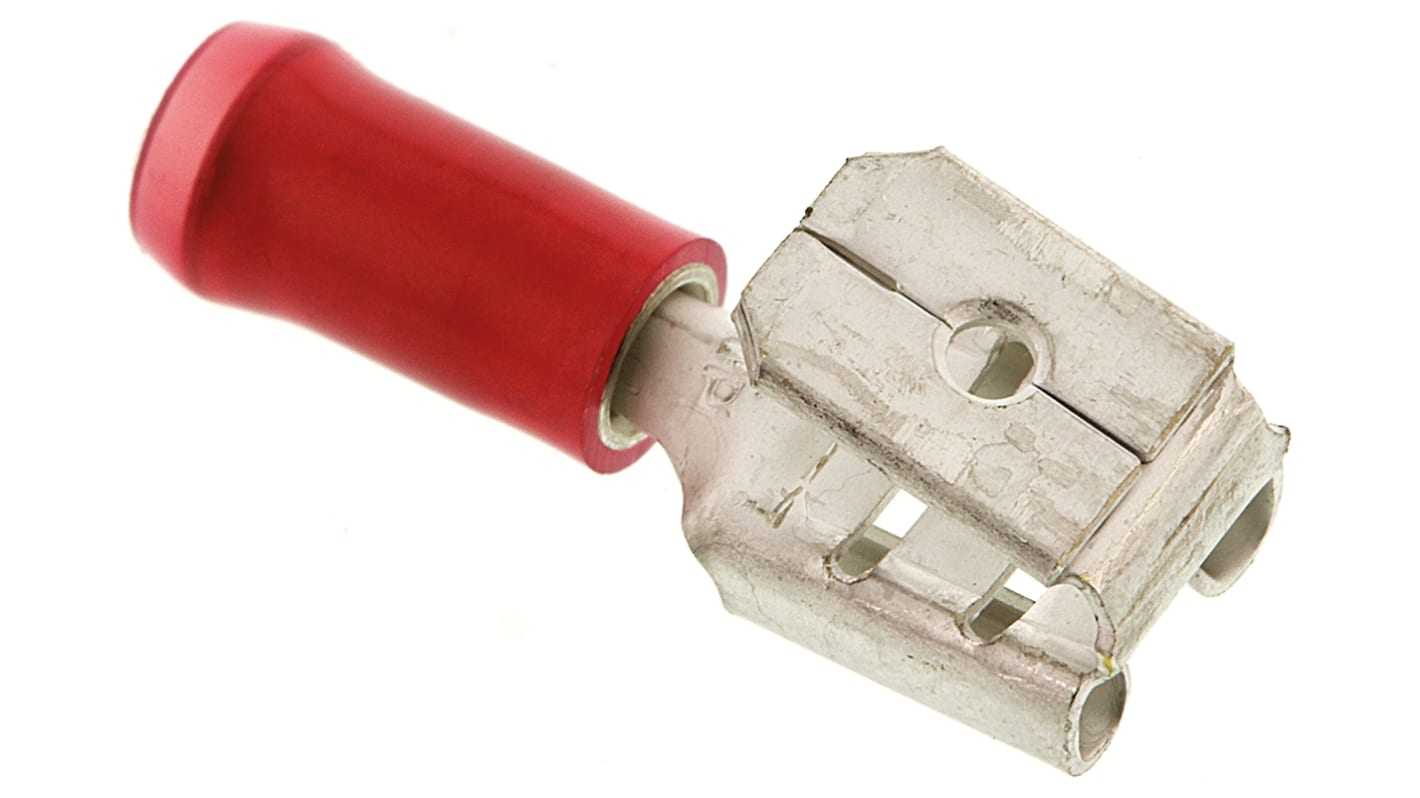

Te-connectivity Spade Connectors 160834-2

AED 2.55

Sale Sold out

Shipping calculated at checkout.

Quantity

Te-connectivity, Quick Disconnects, Tab & Receptacle, 22 â€“ 16 AWG Wire Size, .3 â€“ 1.5 mm ² Wire Size, 592 â€“ 3260 CMA Wire Size, Mating Tab Width 6.35 mm [.25 in], PIDG; Alias: 694190-000, AMPS-0-0160834-2 PIDG PIGGY-B FASTON

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Type: Piggyback Terminal
Series: PIDG FASTON .250
Minimum Wire Size mm²: 0.3mm²
Gender: Female
Minimum Wire Size (mm²): 0.3mm²
Maximum Wire Size mm²: 1.5mm²
Maximum Wire Size (mm²): 1.5mm²
Tab Size: 6.35 x 0.81mm
Tab Width: 6.35mm
Tab Thickness: 0.81mm

Insulation: Insulated
Minimum Wire Size AWG: 22AWG
Maximum Wire Size AWG: 16AWG
Minimum Wire Size (AWG): 22AWG
Maximum Wire Size (AWG): 16AWG
Termination Method: Crimp
Colour: Red
Contact Material: Brass
Contact Plating: Tin
Insulation Material: Nylon
Overall Length: 23.54mm
