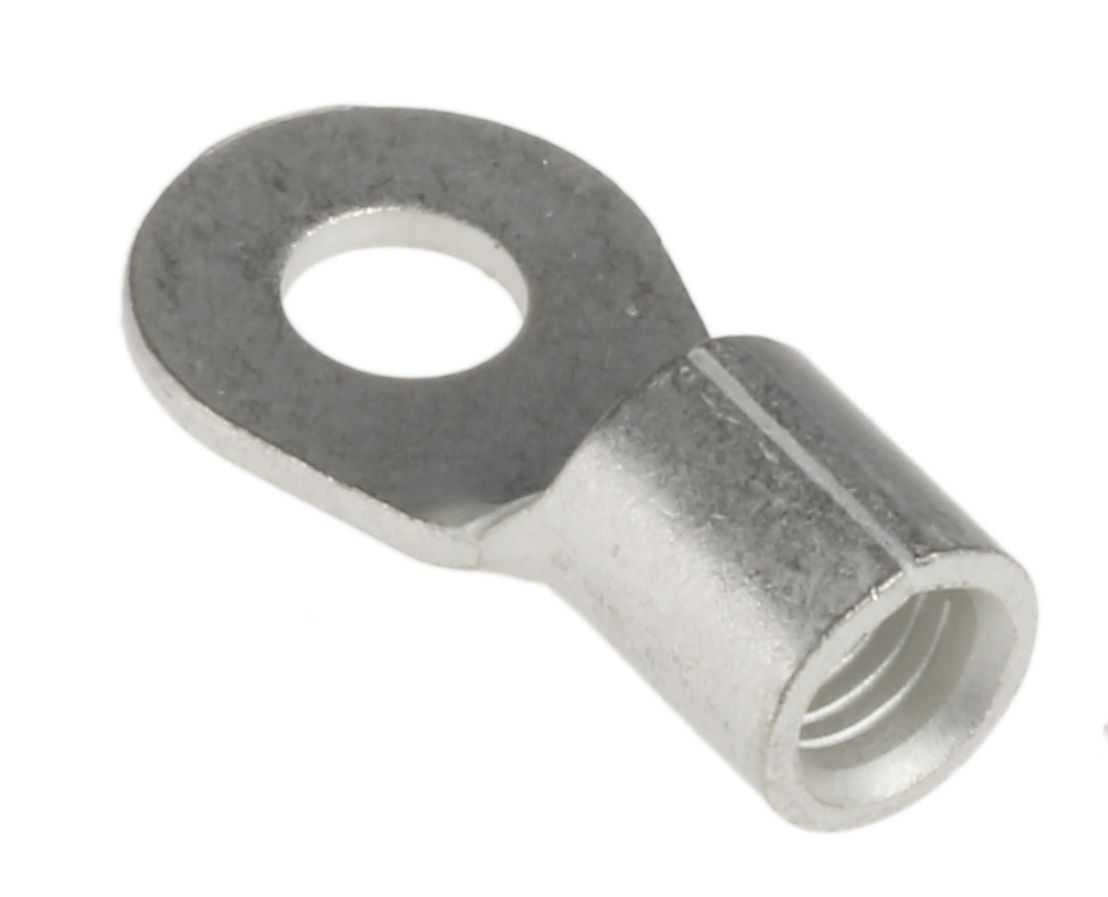

Te-connectivity Ring Terminals 160013

AED 4.41

Sale Sold out

Shipping calculated at checkout.

Quantity

Te-connectivity, TE Connectivity lugs, M5 pin, max wire dimens. 10.5mm , 8AWG Alias: AMPS-0-0160013-0, E14602-000 SOLIS 8 R M5

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Series: SOLISTRAND
Insulation: Uninsulated
Inner Ring Diameter: 5mm
Outer Ring Diameter: 11.9mm
Maximum Wire Size mm²: 10.5mm²
Minimum Wire Size mm²: 6.6mm²
Minimum Wire Size (mm²): 6.6mm²
Maximum Wire Size (mm²): 10.5mm²

Minimum Wire Size AWG: 8AWG
Maximum Wire Size AWG: 8AWG
Maximum Wire Size (AWG): 8AWG
Minimum Wire Size (AWG): 8AWG
Stud Size: M5
Contact Plating: Tin
Contact Material: Copper
Overall Length: 23.7mm
