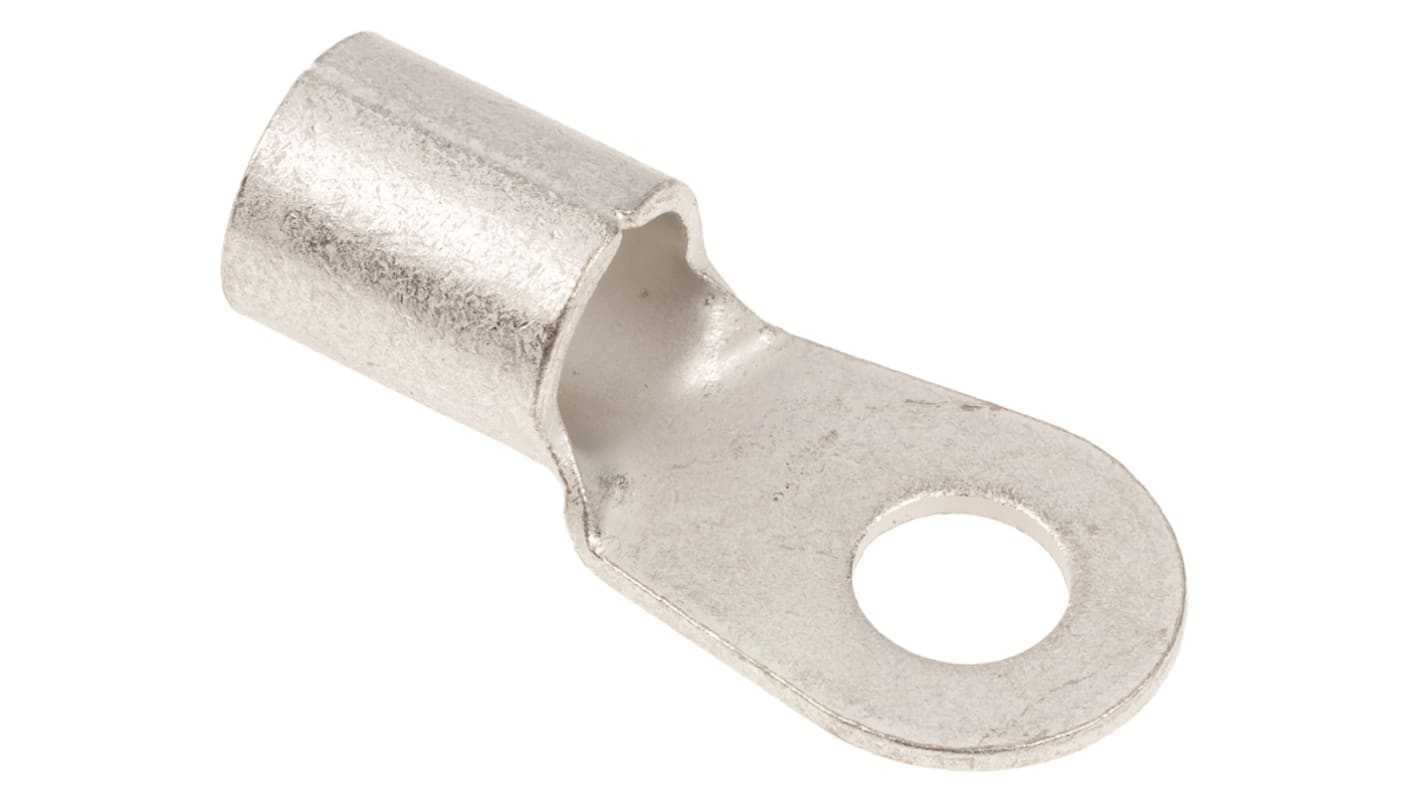

Te-connectivity Ring Terminals 160000

AED 16.48

Sale Sold out

Shipping calculated at checkout.

Quantity

Te-connectivity, Closed Ring Tongue Terminal, 0 AWG, M10 Stud Size, 10 mm / 10.5 mm [.413 in] Stud Diameter, Closed Barrel, Straight, Tin, Uninsulated; Alias: AMPS-0-0160000-0, CB4197-000 TERM,SOLIS R 1/0 M10

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Series: SOLISTRAND
Insulation: Uninsulated
Outer Ring Diameter: 22.2mm
Inner Ring Diameter: 10.5mm
Minimum Wire Size mm²: 42.4mm²
Maximum Wire Size mm²: 60.6mm²
Maximum Wire Size (mm²): 60.6mm²
Minimum Wire Size (mm²): 42.4mm²

Minimum Wire Size AWG: 1/0AWG
Maximum Wire Size AWG: 1/0AWG
Maximum Wire Size (AWG): 1/0AWG
Minimum Wire Size (AWG): 1/0AWG
Stud Size: M10
Contact Plating: Tin
Contact Material: Copper
Thickness: 1.8mm
Overall Length: 49.7mm
