Te-connectivity Spade Connectors 140896-2

AED 2,699.60

Sale Sold out

Shipping calculated at checkout.

Quantity

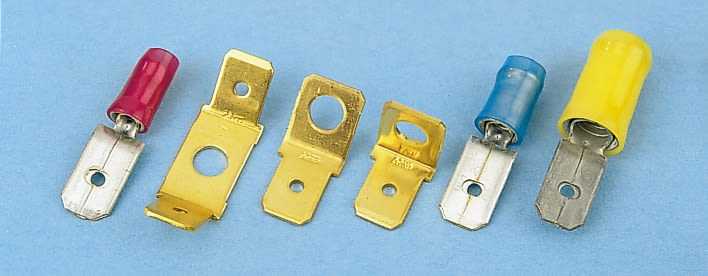

Te-connectivity, TE Connectivity Crimp Tab Lug, 5.14mm , Tin Plating, Red Alias: 815186-000, AMPS-0-0140896-2 TERMINAL TAB FASTON PIDG 6,35

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Type: Tab
Gender: Male
Series: PIDG FASTON .250
Minimum Wire Size mm²: 0.5mm²
Minimum Wire Size (mm²): 0.5mm²
Maximum Wire Size mm²: 1mm²
Maximum Wire Size (mm²): 1mm²
Tab Size: 5.14mm²
Tab Width: 6.35mm
Tab Thickness: 0.81mm

Insulation: Insulated
Minimum Wire Size AWG: 20AWG
Maximum Wire Size AWG: 17AWG
Maximum Wire Size (AWG): 17AWG
Minimum Wire Size (AWG): 20AWG
Termination Method: Crimp
Colour: Red
Contact Material: Brass
Contact Plating: Tin
Insulation Material: Nylon
Overall Length: 23.5mm
