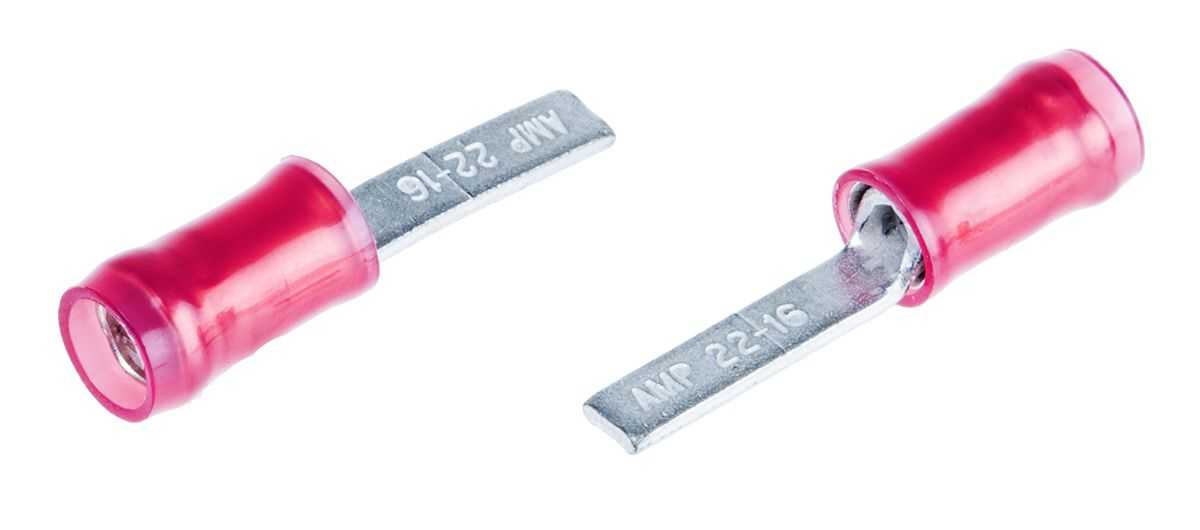

Te-connectivity Blade Terminals 131331

AED 160.75

Sale Sold out

Shipping calculated at checkout.

Quantity

Te-connectivity, Crimp blade terminal No TE Connectivity 131331, blade 12.4mm, 0.2mm - 1.6mm , Red Protected Alias: PIDG. WIRE. TAB, 22-16

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Gender: Male
Series: PIDG
Insulation: Insulated
Insulation Material: Nylon
Shrouded/Unshrouded: Shrouded
Minimum Wire Size mm²: 0.2mm²
Minimum Wire Size (mm²): 0.2mm²
Maximum Wire Size mm²: 1.6mm²
Maximum Wire Size (mm²): 1.6mm²
Minimum Wire Size AWG: 22AWG

Minimum Wire Size (AWG): 22AWG
Maximum Wire Size AWG: 16AWG
Overall Length: 23mm
Maximum Wire Size (AWG): 16AWG
Inner Diameter: 3.5mm
Blade Length: 12.4mm
Blade Width: 2.95mm
Hooked: No
Colour: Red
Contact Plating: Tin
Contact Material: Copper
