Te-connectivity Ring Terminals 130451

AED 4.20

Sale Sold out

Shipping calculated at checkout.

Quantity

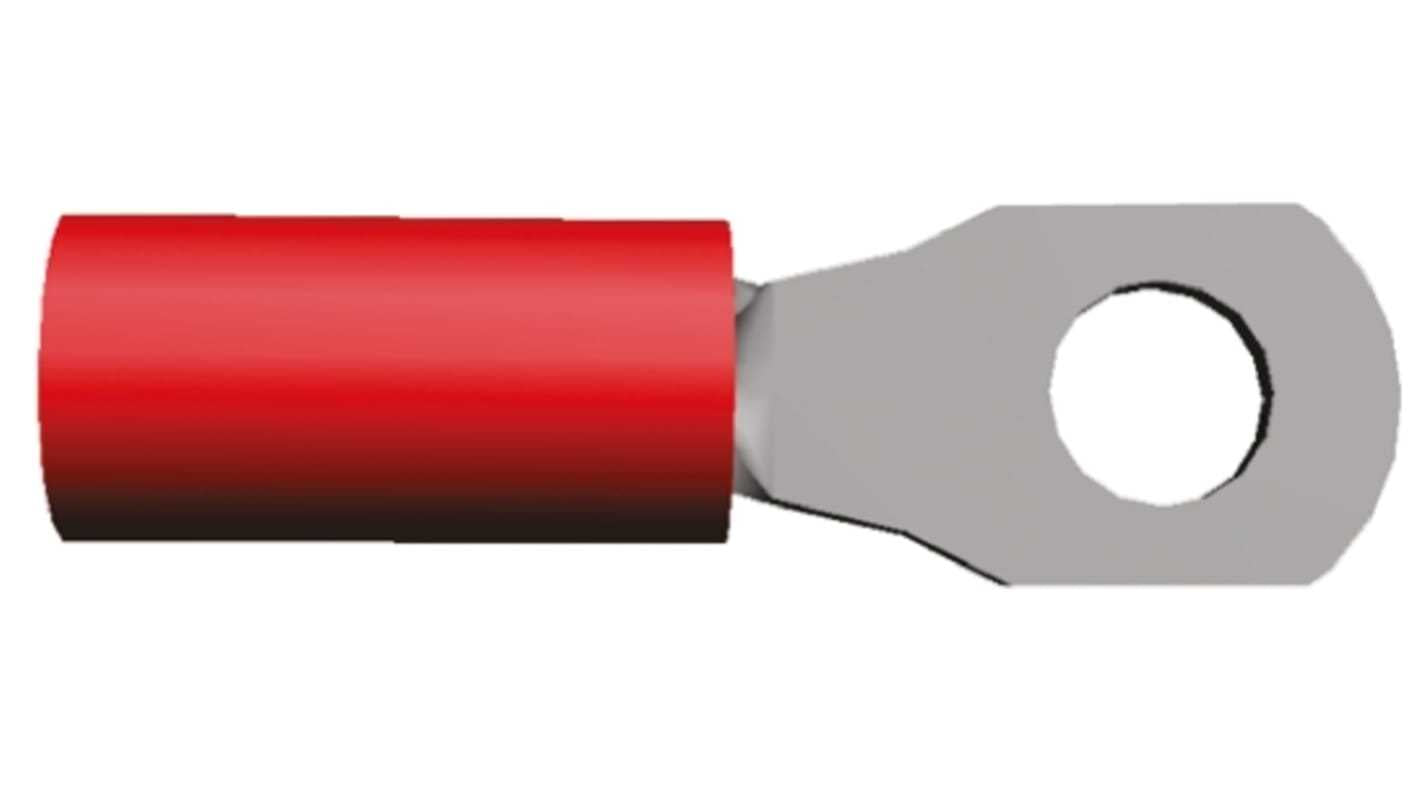

Te-connectivity, Closed Ring Tongue Terminal, 22 â€“ 16 AWG, M2.5 / #4 Stud Size, 3.02 mm [.119 in] Stud Diameter, Closed Barrel, Straight, Tin, PIDG; Alias: PIDG RECT.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Series: PIDG
Insulation: Insulated
Insulation Material: Nylon
Inner Ring Diameter: 3.1mm
Outer Ring Diameter: 5.5mm
Minimum Wire Size mm²: 0.25mm²
Maximum Wire Size mm²: 1.6mm²
Maximum Wire Size (mm²): 1.6mm²
Minimum Wire Size (mm²): 0.25mm²
Minimum Wire Size AWG: 22AWG

Maximum Wire Size AWG: 16AWG
Minimum Wire Size (AWG): 22AWG
Maximum Wire Size (AWG): 16AWG
Stud Size: M2.5
Colour: Red
Contact Plating: Tin
Contact Material: Copper
Thickness: 0.8mm
Overall Length: 20.5mm
Country of Origin: Netherlands
