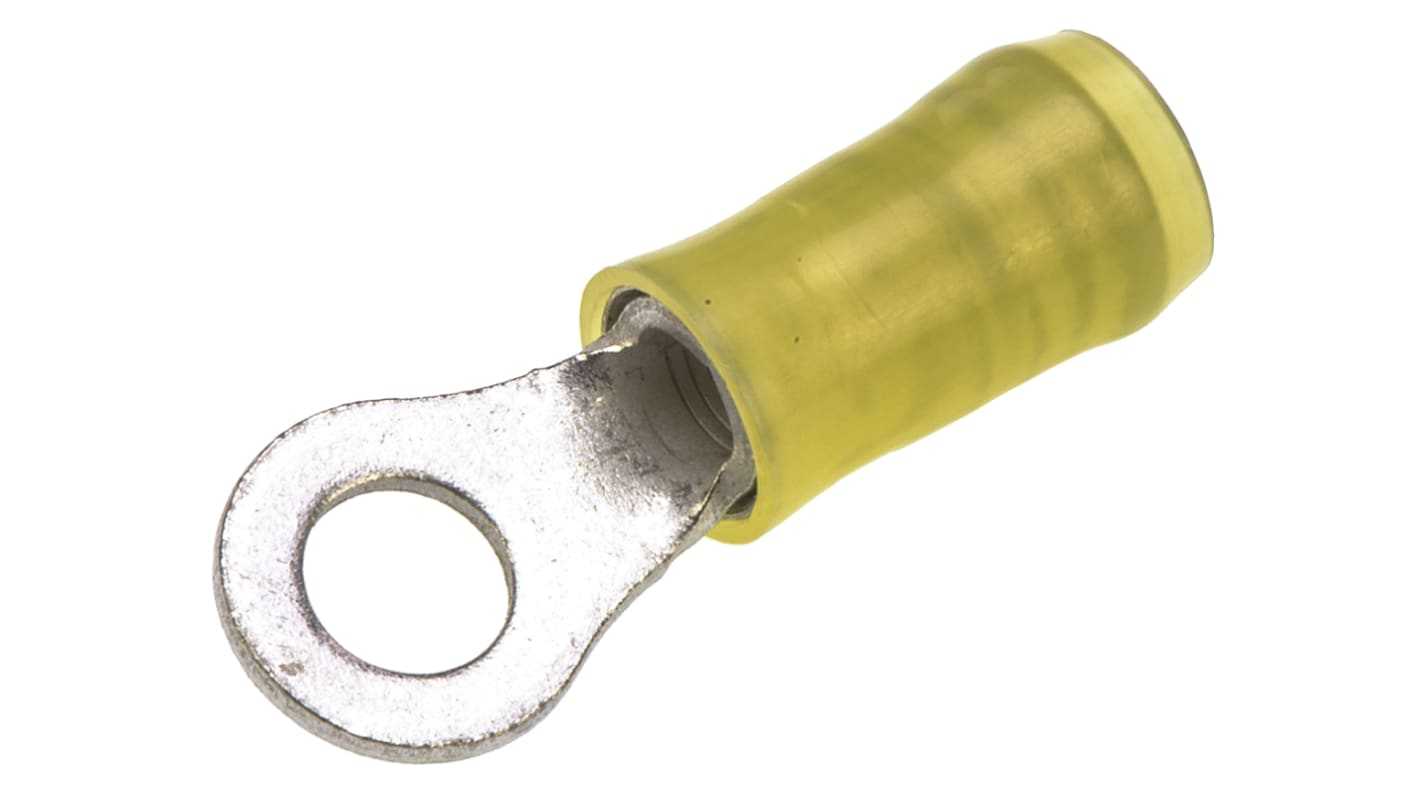

Te-connectivity Ring Terminals 130167

AED 3.34

Sale Sold out

Shipping calculated at checkout.

Quantity

Te-connectivity, Closed Ring Tongue Terminal, 12 â€“ 10 AWG, M5 Stud Size, 5.26 mm [.207 in] Stud Diameter, Closed Barrel, Straight, Tin, Partially Insulated, PIDG Alias: PIDG RING

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Series: PIDG
Insulation: Insulated
Insulation Material: Nylon
Inner Ring Diameter: 0.207in
Outer Ring Diameter: 0.375in
Minimum Wire Size mm²: 2.6mm²
Maximum Wire Size mm²: 6.6mm²
Minimum Wire Size (mm²): 2.6mm²
Maximum Wire Size (mm²): 6.6mm²

Minimum Wire Size AWG: 12AWG
Maximum Wire Size AWG: 10AWG
Maximum Wire Size (AWG): 10AWG
Minimum Wire Size (AWG): 12AWG
Stud Size: M5
Colour: Yellow
Contact Plating: Tin
Contact Material: Copper
Thickness: 0.039in
Overall Length: 27.69mm
