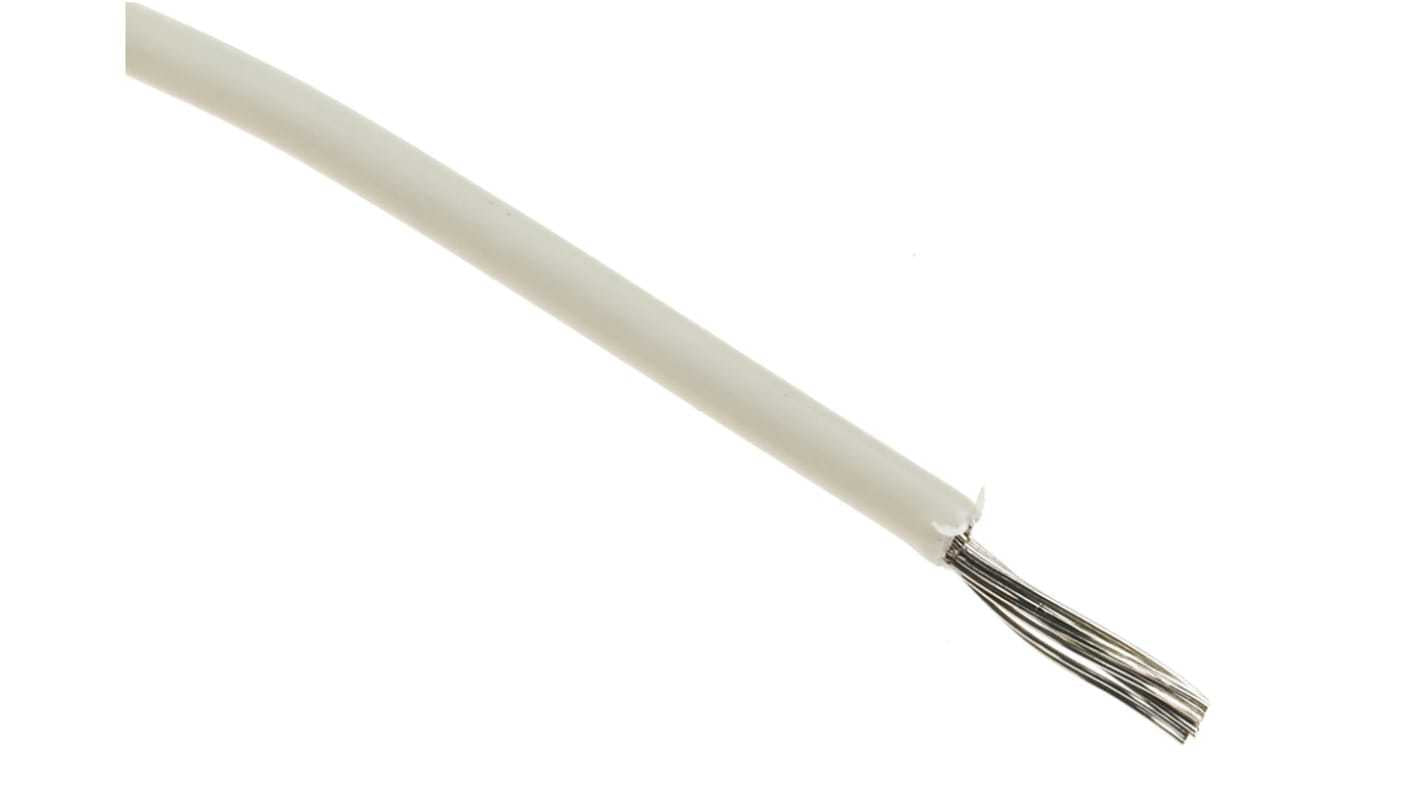

Te-connectivity Hook Up Wire 100G0111-1.50-9

Te-connectivity Hook Up Wire 100G0111-1.50-9

SKU100G0111-1.50-9BrandTe-connectivity
AED 534.27
AED 534.27
Sale Sold out
Shipping calculated at checkout.

Te-connectivity, Hook Up Wire, Spec 100G, 750/1300V Voltage Rating, Tin-Plated Copper, 15 AWG Wire Size, 1.5 mm ² Wire Size, Operating Temperature Range -55 – 125 °C; Alias: 3-1192295-8 100G0111-1.50-9

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: TE Connectivity
  • Cross Sectional Area: 1.5 mm²
  • Sheath Colour: White
  • Cable Shape: Single Core
  • Core Strands: 0.23 mm
  • Length: 100m
  • Insulation material: Polymer
  • Voltage Rating: 1.3 kV ac, 750 V ac
  • Outer Diameter: 2.08mm
  • Maximum Operating Temperature: +125°C
  • Minimum Operating Temperature: -55°C
  • Conductor Material: Tinned Copper
  • Fire Behaviour: Flame Retardant, Low Smoke Density, Low Smoke Halogen Free (LSZH), Self-extinguishing
  • Shield Type: Unshielded
  • Insulation Wall Thickness: 0.2mm
  • Size of Strands: 0.23 mm
  • Resistant To: Flame, Fluids
  • Number of Strands: 37
  • Country of Origin: United Kingdom
