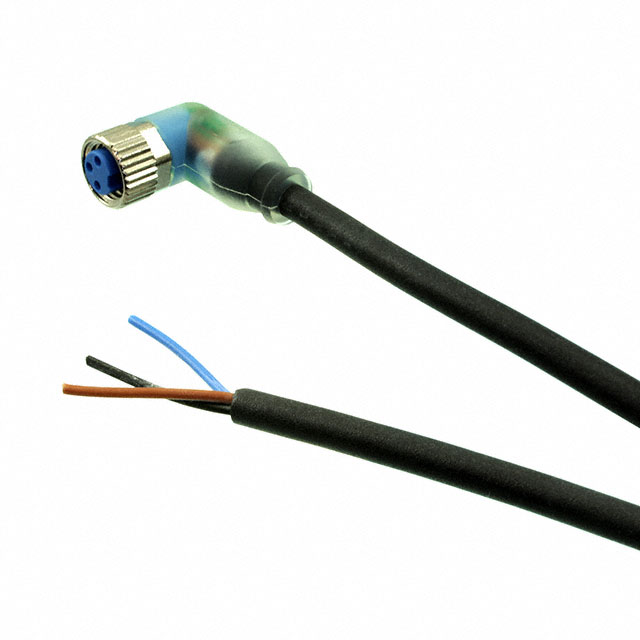

1-2273012-1 - Te-connectivity Sensor & Actuator Cable, 1.5m M8 to Unterminated (3-Core)

1-2273012-1 - Te-connectivity Sensor & Actuator Cable, 1.5m M8 to Unterminated (3-Core)

SKU1-2273012-1BrandTe-connectivity
AED 1,121.00
AED 1,121.00
Sale Sold out
Shipping calculated at checkout.

The 1-2273012-1 is a professional-grade sensor and actuator cable from Te-connectivity, part of the M8 series. Measuring 1.5m in length with 3 cores and 0.25 mm² cross-sectional area, this cable features a M8 Female (Right-Angle) connector to Unterminated. Constructed with a Black PUR sheath and rated IP65, IP67, supporting 24 VDC at 4 A, it is designed for dependable sensor-to-actuator connectivity in industrial automation, robotics, and process control environments.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Te-connectivity
  • American Wire Gauge: 24 AWG
  • Cable Shape: Multicore
  • Coding: A
  • Connector 1: M8
  • Connector 1 Gender: Female
  • Connector 1 Housing Gender: Female
  • Connector 1 Number of Contacts: 3
  • Connector 1 Orientation: Right-Angle
  • Connector 2: Unterminated
  • Cross Sectional Area: 0.25 mm²
  • Current Rating: 4000 mA
  • IP Rating: IP65, IP67
  • Insulation material: PVC
  • Length: 1.5m
  • Maximum Operating Temperature: 80 °C
  • Minimum Bend Radius: 45 mm
  • Minimum Operating Temperature: -30 °C
  • Number of Cores: 3
  • Operating Temperature Range: -30–80 °C
  • Outer Diameter: 4.5 mm
  • Sheath Colour: Black
  • Sheath Material: PUR
  • Shielded/Unshielded: Unshielded
  • Standards Met: CSA, ELV Compliant, EN 60529, RoHS Compliant, UL
  • Voltage Rating: 24 VDC
