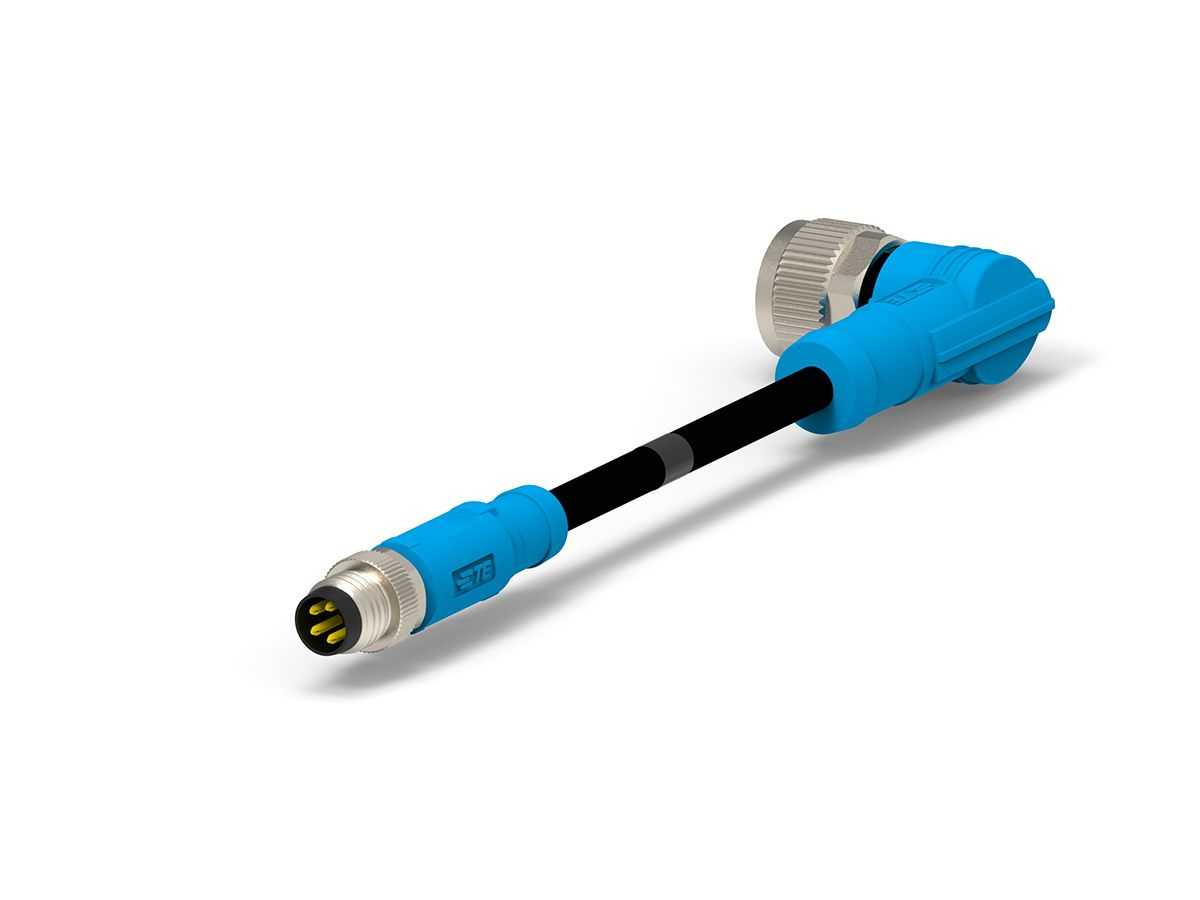

T4052118004-001 - Te-connectivity Sensor & Actuator Cable, 500 mm M8 to M12

T4052118004-001 - Te-connectivity Sensor & Actuator Cable, 500 mm M8 to M12

Regular price AED 45.00
Regular price Sale price AED 45.00
Sale Sold out
Shipping calculated at checkout.

The T4052118004-001 is a professional-grade sensor and actuator cable from Te-connectivity, part of the T405 series. Measuring 500 mm in length and 0.25 mm² cross-sectional area, this cable features a M8 Male (Right-Angle) connector to M12. Constructed with a Black Nylon sheath and rated IP67, supporting 30 V at 3 A, it is designed for dependable sensor-to-actuator connectivity in industrial automation, robotics, and process control environments.

View full details

Specifications

  • Brand: Te-connectivity
  • American Wire Gauge: 24 AWG
  • Coding: A
  • Conductor Material: Copper-Alloy
  • Connector 1: M8
  • Connector 1 Gender: Male
  • Connector 1 Number of Contacts: 4
  • Connector 1 Orientation: Right-Angle
  • Connector 2: M12
  • Connector 2 Gender: Female
  • Connector 2 Number of Contacts: 4
  • Connector 2 Orientation: Straight
  • Cross Sectional Area: 0.25 mm²
  • Current Rating: 3000 mA
  • IP Rating: IP67
  • Insulation material: PVC
  • Length: 500 mm
  • Maximum Operating Temperature: 80 °C
  • Minimum Operating Temperature: -25 °C, -40 °C
  • Outer Diameter: 4.5 mm
  • Series: T405
  • Sheath Colour: Black
  • Sheath Material: Nylon
  • Voltage Rating: 30 V
