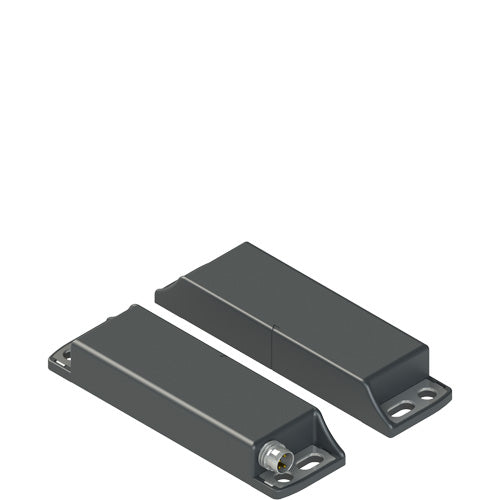

SR BD40ALK-B02F - Coded magnetic safety sensor Non-Contact Safety Switch, Glass fibre reinforced technopolymer Housing with Integrated M8 connector

SR BD40ALK-B02F - Coded magnetic safety sensor Non-Contact Safety Switch, Glass fibre reinforced technopolymer Housing with Integrated M8 connector

SKUSR BD40ALK-B02FBrandPizzato
AED 165.00
AED 165.00
Sale Sold out
Shipping calculated at checkout.

The SR BD40ALK-B02F is a highly reliable coded magnetic safety sensor non-contact safety switch engineered for secure, wear-free access control on industrial machine guards and doors. Enclosed in a rugged Glass fibre reinforced technopolymer housing, this switch utilizes a SM B02F, actuation distance 8 mm actuator to prevent tampering. Equipped with 2NC safety contact(s) and a pre-wired Integrated M8 connector connection, it delivers dependable safety circuit integration.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Talk to a Specialist
  • Brand: Pizzato
  • Supply Voltage: 24 Vac/dc
  • Safety Contacts: 2NC
  • Housing Material: Technopolymer (Glass Fibre Reinforced)
  • Connection Type: Integrated M8 Connector
  • Installation Type: Surface mount
  • Switch Type: Coded Magnetic Safety Sensor
  • Actuator Type: SM B02F, Actuation Distance 8 mm
  • Safety Category: Category 4 acc. to EN ISO 13849-1
  • Sensor Principle: Magnetic
  • Actuator Included: Yes
  • Series: SR B
  • Switching Distance: 8 mm
  • Range: SR B series
  • IP Rating: IP67 / IP69K
  • Depth: 78 mm
  • Supply Current: 0.25 A max
  • Length: 88 mm
  • Width: 25 mm
  • Standards Met: EN ISO 13849-1, EN IEC 62061, EN ISO 14119, IEC 60947-5-3
