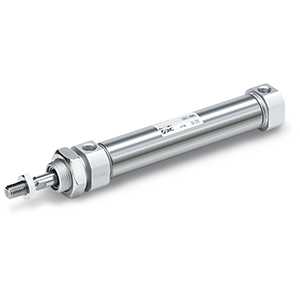

CD85F16-25-B - Smc Double Pneumatic Piston Rod Cylinder, 16 mm Bore × 25 mm Stroke (CD85 Series)

CD85F16-25-B - Smc Double Pneumatic Piston Rod Cylinder, 16 mm Bore × 25 mm Stroke (CD85 Series)

SKUCD85F16-25-BBrandSmc
AED 186.00
AED 186.00
Sale Sold out
Shipping calculated at checkout.

The CD85F16-25-B is a high-performance Double pneumatic piston rod cylinder manufactured by Smc, part of the CD85 series. Featuring a 16 mm bore and a 25 mm stroke, this cylinder operates at a maximum pressure of 10 bar, with M5x0.8 port connections, and Rubber cushioning. It operates reliably across a temperature range of -10 °C to 60 °C in a compact 19.7 / Dia. x 113 mm form factor. Engineered for precise linear actuation, this pneumatic cylinder is ideal for clamping, pressing, pushing, and material handling applications in automated manufacturing and packaging systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Stroke: 25 mm
  • Manufacturer Series: CD85
  • Bore: 16 mm
  • Action Type: Double
  • Port Connection: M5x0.8
  • Length: 88 mm
  • Cushioning Type: Rubber
  • Dimensions: 19.7 / Dia. x 113 mm
  • Maximum Operating Pressure: 10 bar
  • Absolute Maximum Pressure: 15 bar
  • Minimum Operating Temperature: -10 °C
  • Maximum Operating Temperature: 60 °C
  • Weight: 109g
