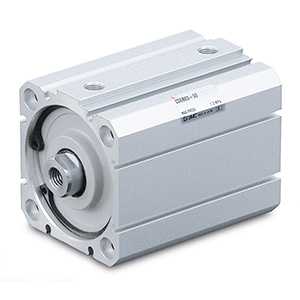

CD55B40-100 - Smc Double Pneumatic Piston Rod Cylinder, 40 mm Bore × 100 mm Stroke (C55 Series)

CD55B40-100 - Smc Double Pneumatic Piston Rod Cylinder, 40 mm Bore × 100 mm Stroke (C55 Series)

SKUCD55B40-100BrandSmc
AED 409.00
AED 409.00
Sale Sold out
Shipping calculated at checkout.

The CD55B40-100 is a high-performance Double pneumatic piston rod cylinder manufactured by Smc in Czech-Republic, part of the C55 series. Featuring a 40 mm bore and a 100 mm stroke, this cylinder operates at a maximum pressure of 10 bar, with G1/8 port connections, and Rubber cushioning. It operates reliably across a temperature range of -10 °C to 70 °C in a compact 152 x 52 x 52 mm form factor. Engineered for precise linear actuation, this pneumatic cylinder is ideal for clamping, pressing, pushing, and material handling applications in automated manufacturing and packaging systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Stroke: 100 mm
  • Manufacturer Series: C55
  • Bore: 40 mm
  • Action Type: Double
  • Port Connection: G1/8
  • Length: 152 mm
  • Cushioning Type: Rubber
  • Dimensions: 152 x 52 x 52 mm
  • Width: 52 mm
  • Maximum Operating Pressure: 10 bar
  • Absolute Maximum Pressure: 15 bar
  • Minimum Operating Temperature: -10 °C
  • Maximum Operating Temperature: 70 °C
  • Height: 52 mm
  • Weight: 776g
