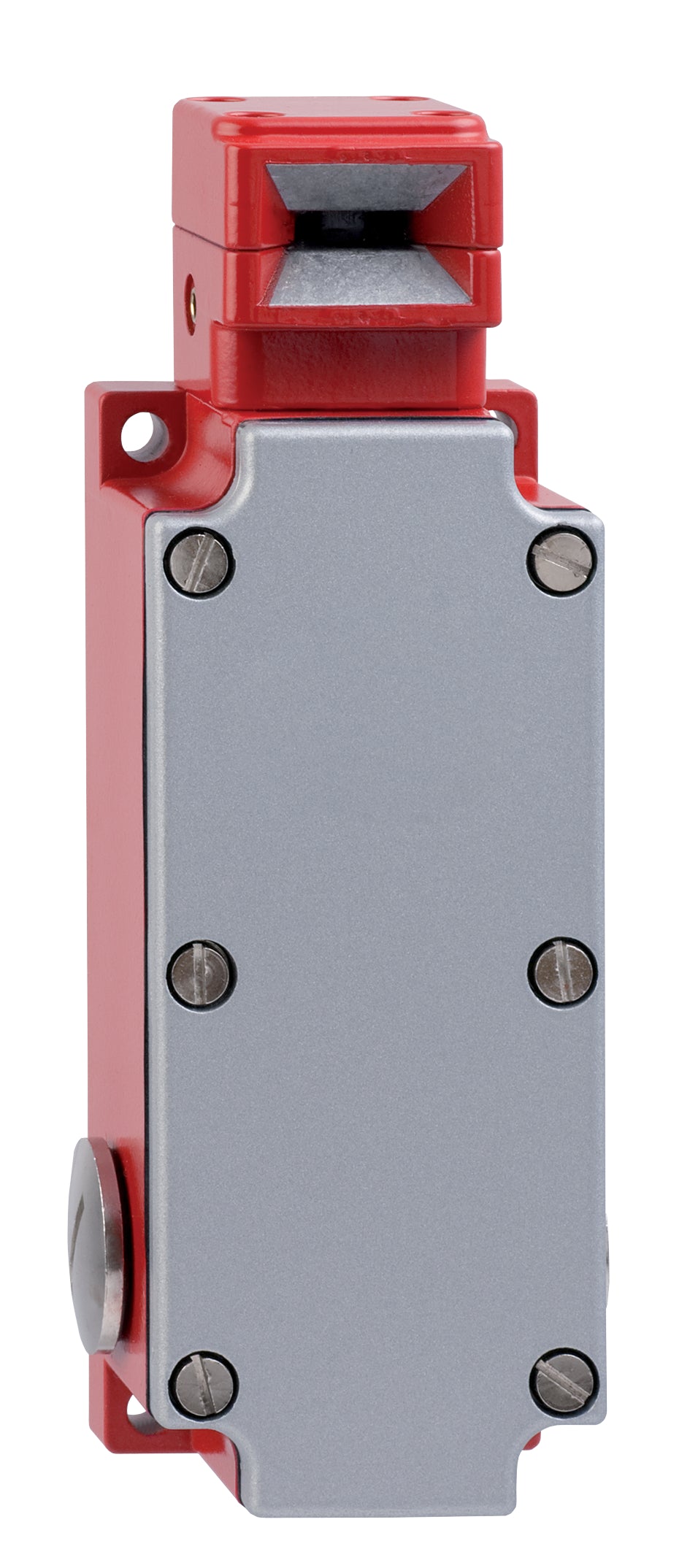

SDG01.1103 - Metal enclosure Safety Interlock Switch - IP67

SDG01.1103 - Metal enclosure Safety Interlock Switch - IP67

SKUSDG01.1103BrandSchmersal
AED 757.00
AED 757.00
Sale Sold out
Shipping calculated at checkout.

The SDG01.1103 is a highly durable safety interlock switch designed to provide reliable access control for industrial machinery. Featuring a robust metal enclosure housing and a 10 a, this switch ensures that hazardous equipment remains secure during operation. It comes equipped with 2 safety contacts for dependable safety circuit integration and utilizes a standard 2.5 mm² connection type for straightforward installation. This switch is an essential component for maintaining a safe and compliant manufacturing environment.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Schmersal
  • Normal State Configuration: NO contact, NC contact
  • Safety Contacts: 2
  • Maximum AC Voltage: 400 V
  • Connection Type: 2.5 mm²
  • Housing Material: Metal
  • IP Rating: IP67
  • Dimensions: 50 mm x 152 mm x 43 mm
  • Series: SDG
  • Maximum Operating Temperature: +70 °C
  • Depth: 152 mm
  • Standards Met: EN ISO 13849-1
  • Minimum Operating Temperature: -25 °C
  • Length: 43 mm
  • Auxiliary Contacts: 1
  • Width: 50 mm
  • Maximum Current: 10 A
