• Schmersal - SCG01.103
1 1

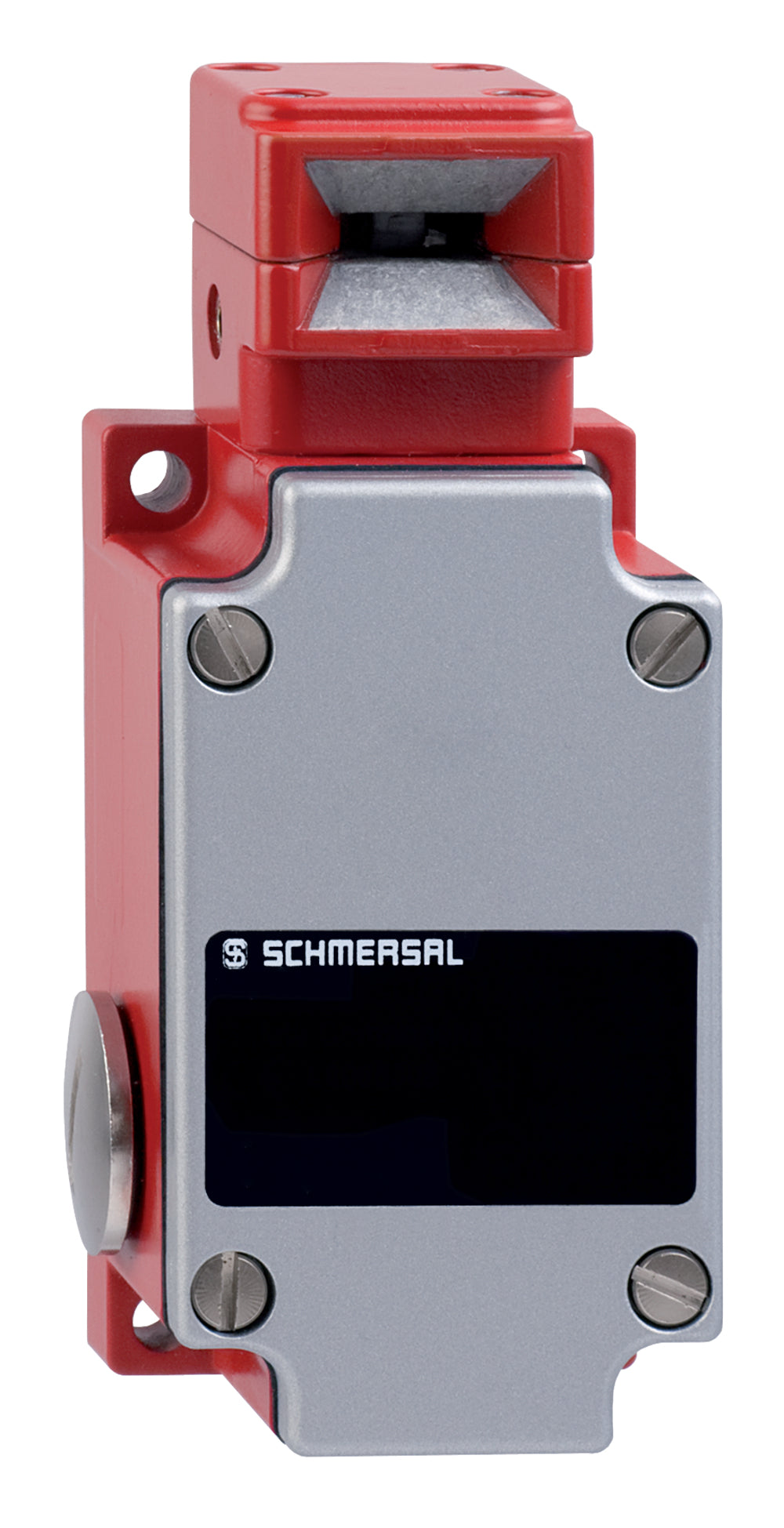

SCG01.103 - Metal Safety Interlock Switch with Head positioned to the front Actuator

SCG01.103 - Metal Safety Interlock Switch with Head positioned to the front Actuator

SKUSCG01.103BrandSchmersal
AED 562.00
AED 562.00
Sale Sold out
Shipping calculated at checkout.

The SCG01.103 is a highly durable safety interlock switch designed to provide reliable access control for industrial machinery. Featuring a robust metal housing and an ip67 protection rating, this switch ensures that hazardous equipment remains secure during operation. It comes equipped with 1 safety contacts for dependable safety circuit integration and utilizes a standard 2.5 mm² connection type for straightforward installation. This head positioned to the front actuator is an essential component for maintaining a safe and compliant manufacturing environment.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Schmersal
  • Actuator Type: Head positioned to the front
  • Normal State Configuration: NO contact, NC contact
  • Safety Contacts: 1
  • Maximum AC Voltage: 400 V
  • Connection Type: 2.5 mm²
  • Housing Material: Metal
  • IP Rating: IP67
  • Dimensions: 50 mm x 120 mm x 43 mm
  • Series: SCG
  • Maximum Operating Temperature: +70 °C
  • Depth: 120 mm
  • Standards Met: EN ISO 13849-1
  • Minimum Operating Temperature: -25 °C
  • Length: 43 mm
  • Auxiliary Contacts: 1
  • Width: 50 mm
  • Maximum Current: 10 A
