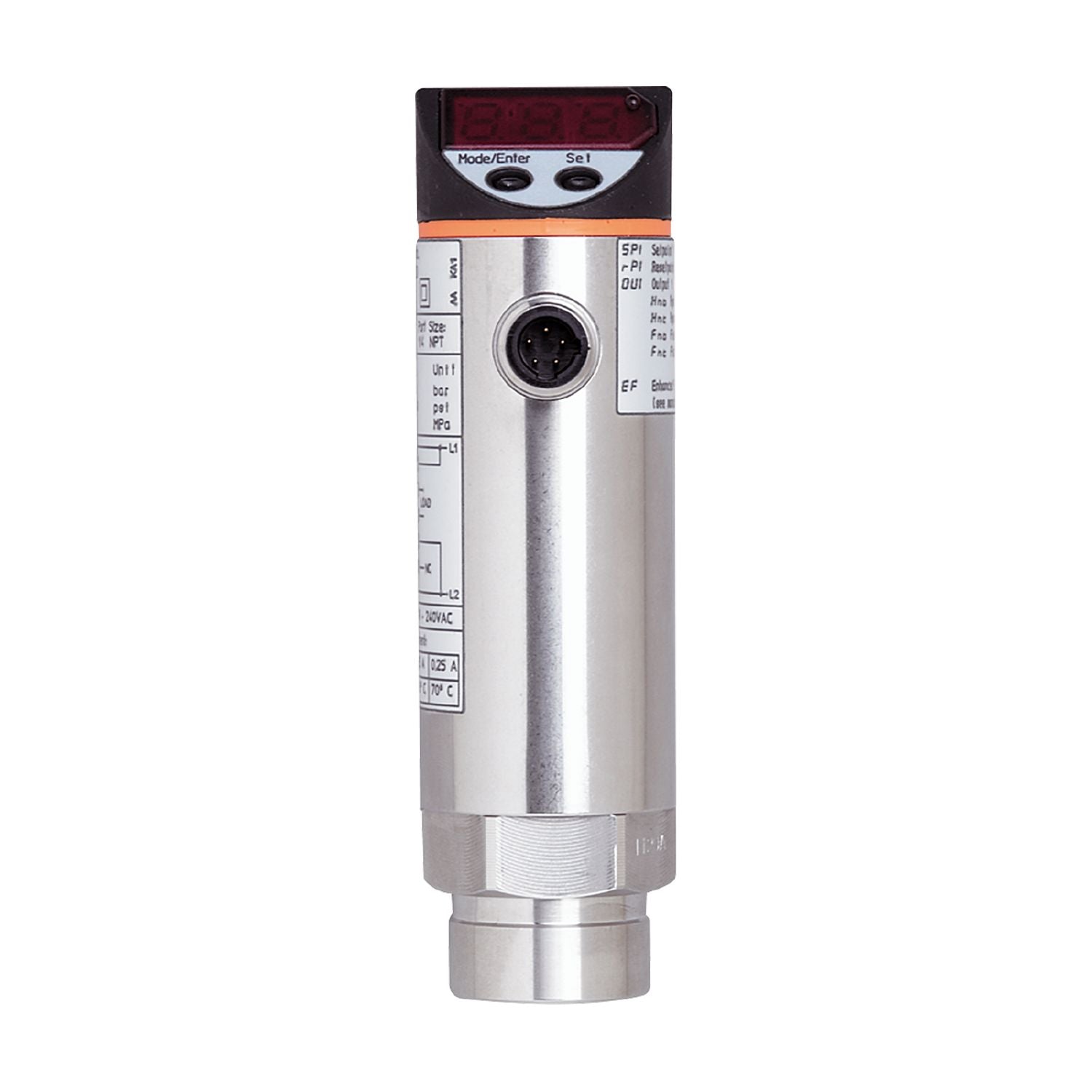

PY9920 - FKM Pressure Sensor, IP67 (0 bar to 600 bar)

PY9920 - FKM Pressure Sensor, IP67 (0 bar to 600 bar)

SKUPY9920Brandifm
AED 2,415.00
AED 2,415.00
Sale Sold out
Shipping calculated at checkout.

The PY9920 is a high-precision pressure sensor engineered for reliable pressure measurement in demanding industrial applications. Encased in a durable FKM housing and featuring IP67 protection, this sensor accurately reads pressures ranging from 0 bar to 600 bar. Operating on a 85...265 AC supply voltage and delivering a precise triac output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: ifm
  • Housing Material: FKM
  • IP Rating: IP67
  • Maximum Operating Temperature: 80°C
  • Minimum Operating Temperature: -25°C
  • Output Type: Triac
  • Series: PY
  • Standards/Approvals: EMC: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 10 V; Shock resistance: DIN IEC 68-2-27 | 50 g (11 ms); Vibration resistance: DIN IEC 68-2-6 | 20 g (10...2000 Hz); Pressure Equipment Directive: Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
  • Supply Voltage: 85...265 AC
  • Electrical Connection: 1 x 1/2"; coding: C
  • Accuracy: < ± 0.1
  • Process Connection: threaded connection G 1/4 internal thread
  • Maximum Current: 250.0
  • Maximum Pressure Reading: 600 bar
  • Minimum Pressure Reading: 0 bar
