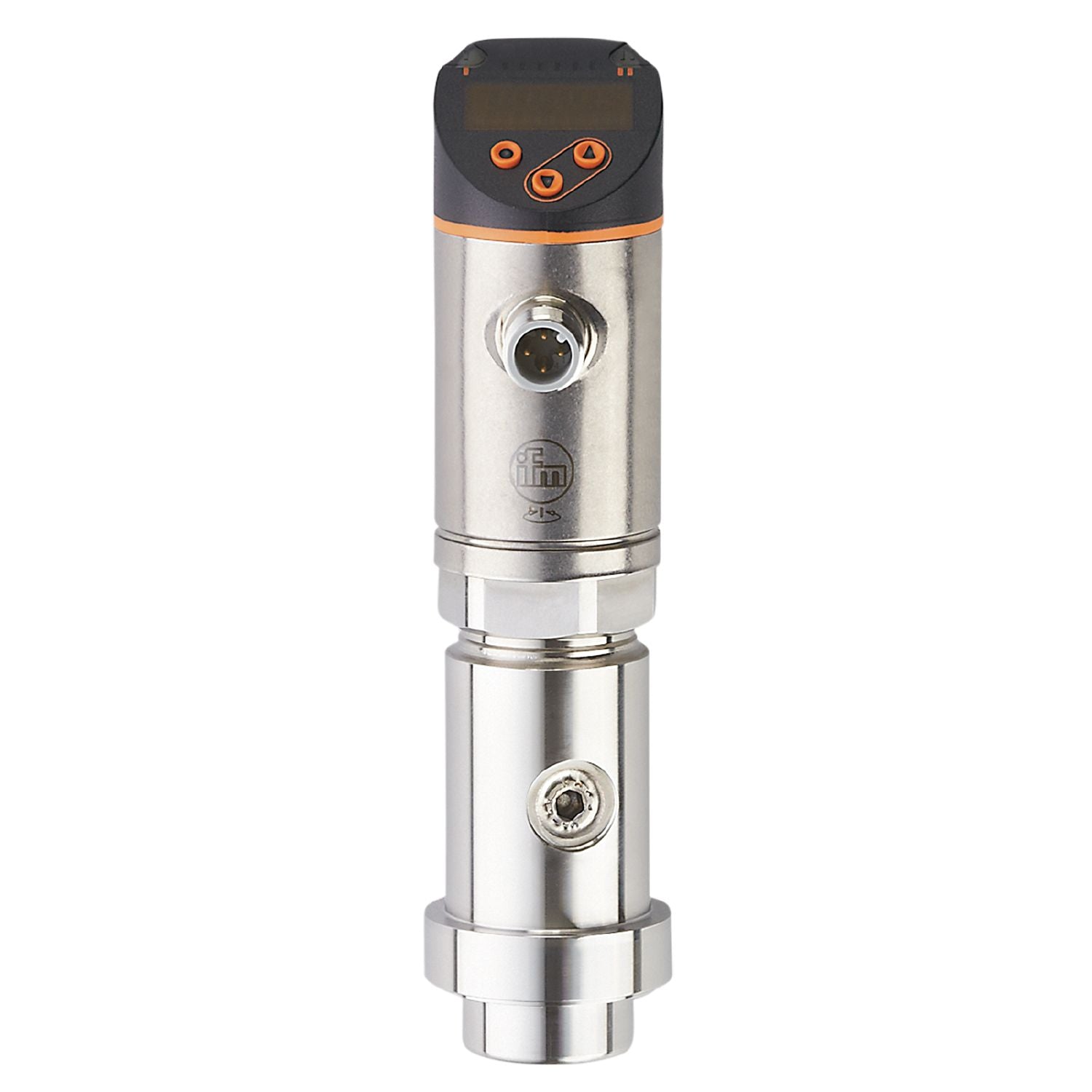

PY9060 - Stainless Steel (630/1.4542/17-4 PH) Relative Pressure Sensor, IP67 (0 bar to 800 bar)

PY9060 - Stainless Steel (630/1.4542/17-4 PH) Relative Pressure Sensor, IP67 (0 bar to 800 bar)

SKUPY9060Brandifm
AED 4,858.00
AED 4,858.00
Sale Sold out
Shipping calculated at checkout.

The PY9060 is a high-precision pressure sensor engineered for reliable relative pressure measurement in demanding industrial applications. Encased in a durable stainless steel (630/1.4542/17-4 PH) housing and featuring IP67 protection, this sensor accurately reads pressures ranging from 0 bar to 800 bar. Operating on a 18...30 DC supply voltage and delivering a precise PNP/NPN output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: ifm
  • Housing Material: Stainless Steel (630/1.4542/17-4 PH)
  • IP Rating: IP67
  • Interface: IO-Link
  • Maximum Operating Temperature: 80°C
  • Minimum Operating Temperature: 5°C
  • Output Type: PNP/NPN
  • Series: PY
  • Standards/Approvals: EMC: DIN EN 61000-6-2 | ; DIN EN 61000-6-3 | ; Shock resistance: DIN EN 60068-2-27 | 50 g (11 ms); Vibration resistance: DIN EN 60068-2-6 | 10 g (10...2000 Hz)
  • Supply Voltage: 18...30 DC
  • Electrical Connection: 1 x M12; coding: A; Contacts: gold-plated
  • Accuracy: < ± 0.1
  • Response Time: < 1.5 ms
  • Communication Protocol: 1.1
  • Process Connection: homogeniser connection
  • Maximum Current: 250.0
  • Analogue Output: 4...20
  • Media Measured: liquids and gases
  • Maximum Pressure Reading: 800 bar
  • Minimum Pressure Reading: 0 bar
  • Pressure Reading Type: Relative
