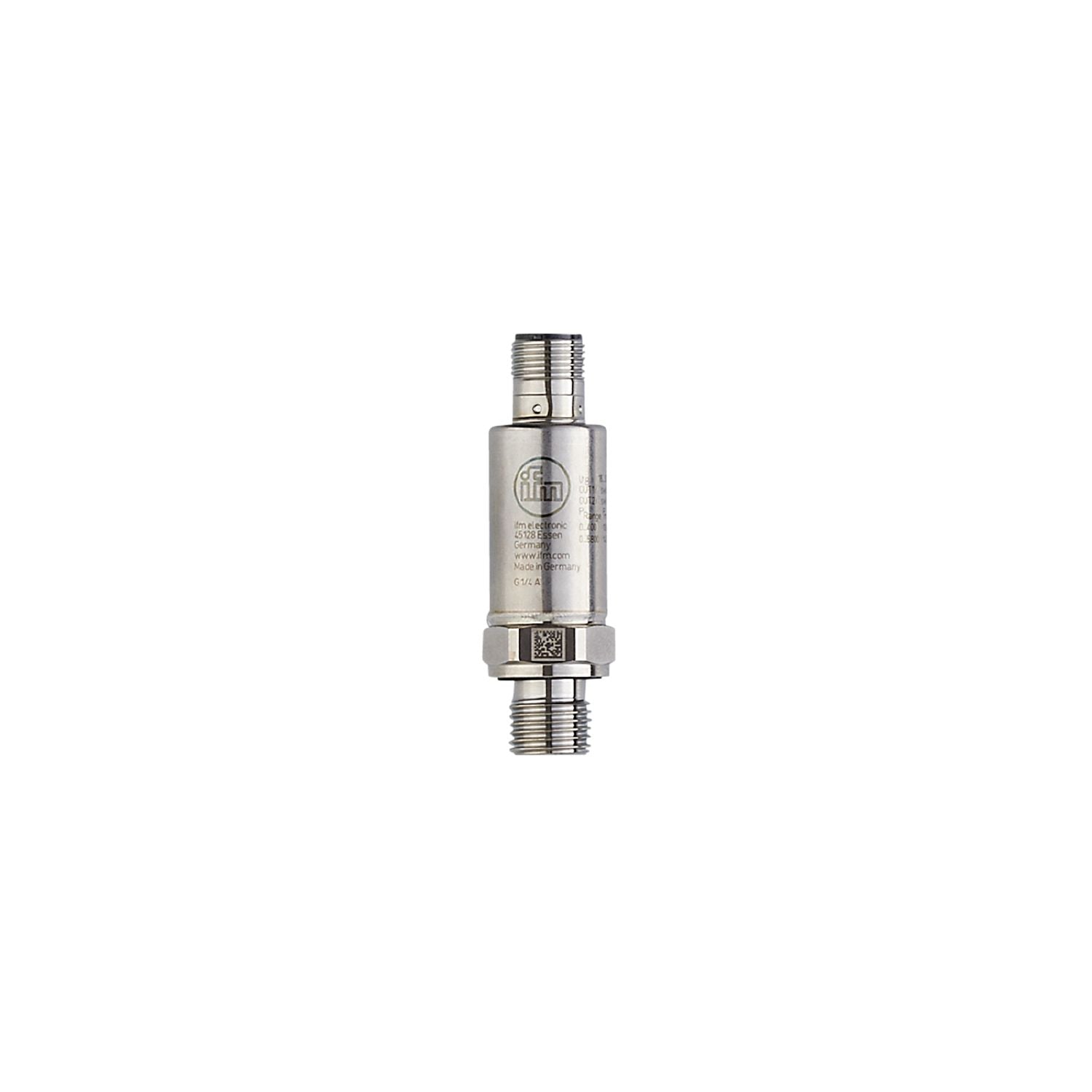

PV8000 - Stainless Steel (630/1.4542/17-4 PH) Relative Pressure Sensor, IP67; IP69K (0 bar to 1000 bar)

Name: PV8000 - Stainless Steel (630/1.4542/17-4 PH) Relative Pressure Sensor, IP67; IP69K (0 bar to 1000 bar)
Brand: ifm
SKU: PV8000
Price: 824.00 AED
Availability: InStock

SKUPV8000Brandifm

AED 824.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The PV8000 is a high-precision pressure sensor engineered for reliable relative pressure measurement in demanding industrial applications. Encased in a durable stainless steel (630/1.4542/17-4 PH) housing and featuring IP67; IP69K protection, this sensor accurately reads pressures ranging from 0 bar to 1000 bar. Operating on a 18...30 DC supply voltage and delivering a precise PNP/NPN output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Brand: ifm
Housing Material: Stainless Steel (630/1.4542/17-4 PH)
IP Rating: IP67; IP69K
Interface: IO-Link
Maximum Operating Temperature: 90°C
Minimum Operating Temperature: -40°C
Output Type: PNP/NPN
Series: PV
Standards/Approvals: EMC: DIN EN 61326-1 | ; Shock resistance: DIN EN 60068-2-27 | 500 g (1 ms); Vibration resistance: DIN EN 60068-2-6 | 20 g (10...2000 Hz); UL approval: UL approval no. | J038; File number UL | E174189; Pressure Equipment Directive: Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Supply Voltage: 18...30 DC

Electrical Connection: 1 x M12; coding: A
Accuracy: < ± 0.05
Response Time: < 3 ms
Communication Protocol: 1.1
Process Connection: threaded connection G 1/4 external thread (DIN EN ISO 1179-2); internal thread:M5
Maximum Current: 100.0
Media Measured: liquids and gases
Maximum Pressure Reading: 1000 bar
Minimum Pressure Reading: 0 bar
Pressure Reading Type: Relative
