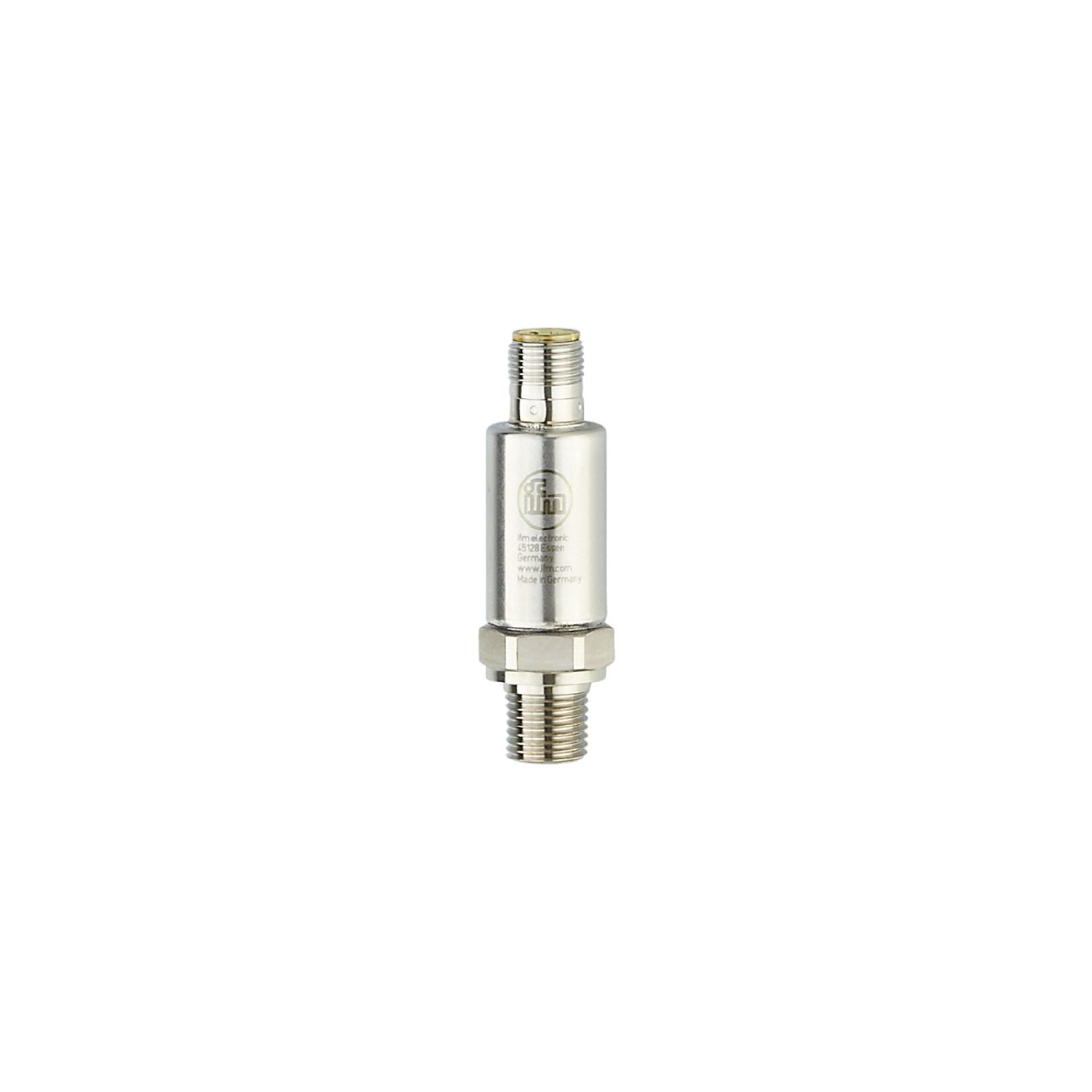

PV7704 - Stainless Steel (630/1.4542/17-4 PH) Relative; Vacuum Pressure Sensor, IP67; IP69K (-100 kPa to 2.5 MPa)

Name: PV7704 - Stainless Steel (630/1.4542/17-4 PH) Relative; Vacuum Pressure Sensor, IP67; IP69K (-100 kPa to 2.5 MPa)
Brand: ifm
SKU: PV7704
Price: 757.00 AED
Availability: InStock

SKUPV7704Brandifm

AED 757.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The PV7704 is a high-precision pressure sensor engineered for reliable relative; vacuum pressure measurement in demanding industrial applications. Encased in a durable stainless steel (630/1.4542/17-4 PH) housing and featuring IP67; IP69K protection, this sensor accurately reads pressures ranging from -100 kpa to 2.5 mpa. Operating on a 18...30 DC supply voltage and delivering a precise PNP/NPN output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Brand: ifm
Housing Material: Stainless Steel (630/1.4542/17-4 PH)
IP Rating: IP67; IP69K
Interface: IO-Link
Maximum Operating Temperature: 90°C
Minimum Operating Temperature: -40°C
Output Type: PNP/NPN
Series: PV
Standards/Approvals: EMC: DIN EN 61326-1 | ; Shock resistance: DIN EN 60068-2-27 | 500 g (1 ms); Vibration resistance: DIN EN 60068-2-6 | 20 g (10...2000 Hz); UL approval: UL approval no. | J015; Pressure Equipment Directive: Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Supply Voltage: 18...30 DC

Electrical Connection: 1 x M12; coding: A
Accuracy: < ± 0.05
Response Time: < 3 ms
Communication Protocol: 1.1
Process Connection: threaded connection R 1/4 external thread internal thread:M5
Maximum Current: 100.0
Media Measured: liquids and gases
Maximum Pressure Reading: 2.5 MPa
Minimum Pressure Reading: -100 kPa
Pressure Reading Type: Relative; Vacuum
