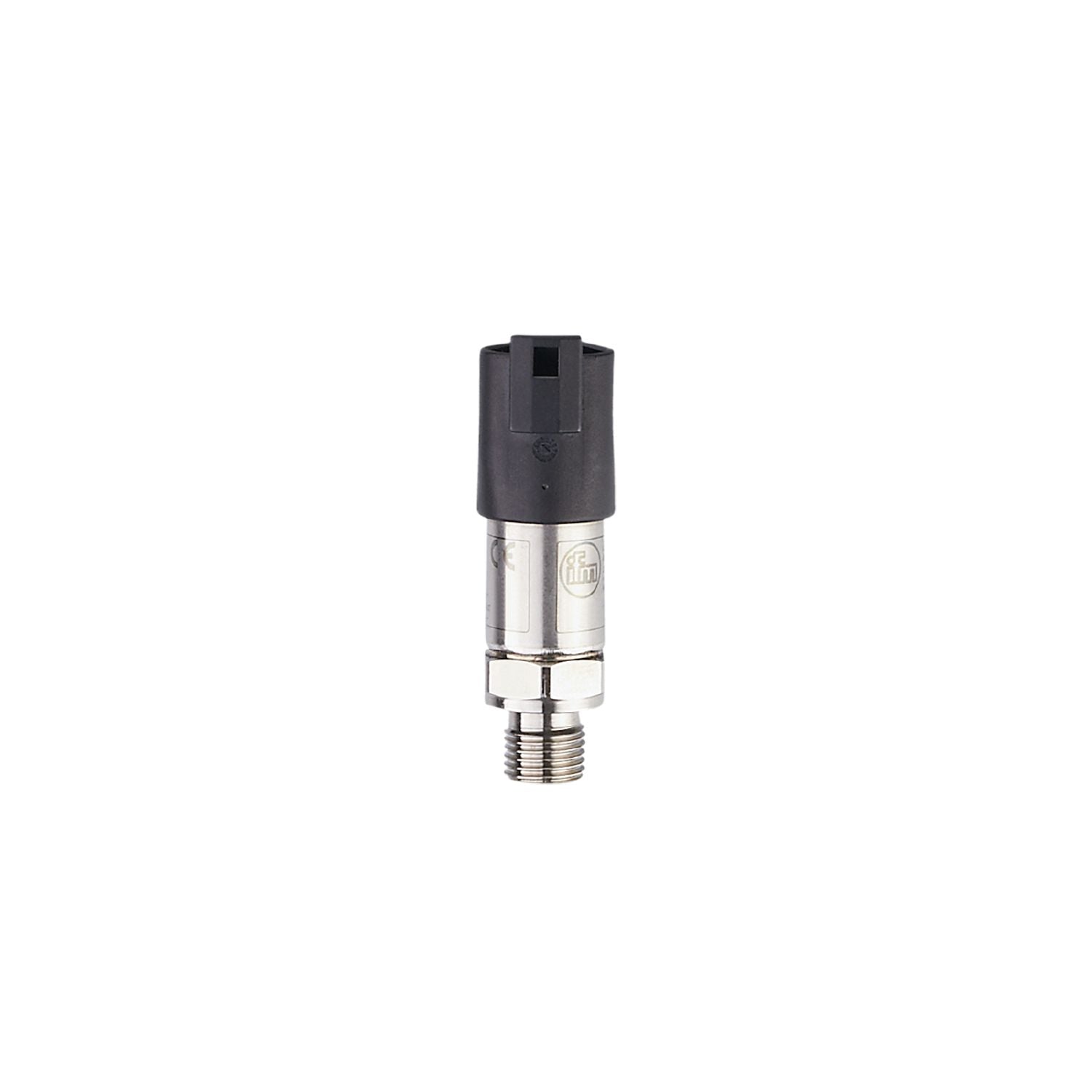

PU8703 - Stainless Steel (630/1.4542/17-4 PH) Relative Pressure Sensor, IP67; IP69K (0 bar to 65 bar)

Name: PU8703 - Stainless Steel (630/1.4542/17-4 PH) Relative Pressure Sensor, IP67; IP69K (0 bar to 65 bar)
Brand: ifm
SKU: PU8703
Price: 663.00 AED
Availability: InStock

SKUPU8703Brandifm

AED 663.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The PU8703 is a high-precision pressure sensor engineered for reliable relative pressure measurement in demanding industrial applications. Encased in a durable stainless steel (630/1.4542/17-4 PH) housing and featuring IP67; IP69K protection, this sensor accurately reads pressures ranging from 0 bar to 65 bar. Operating on a 8...32 DC supply voltage and designed to measure liquids and gases, it provides seamless integration into your process control and automated monitoring systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Housing Material: Stainless Steel (630/1.4542/17-4 PH)
IP Rating: IP67; IP69K
Maximum Operating Temperature: 100°C
Minimum Operating Temperature: -40°C
Series: PU
Standards/Approvals: EMC: compliant with UN ECE R10, rev. 5 | ; ISO 11452-2 | 100 V/m; DIN EN 61326-1 | ; Shock resistance: DIN EN 60068-2-27 | 500 g (1 ms); Vibration resistance: DIN EN 60068-2-6 | 20 g (10...2000 Hz); Pressure Equipment Directive: Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Supply Voltage: 8...32 DC

Electrical Connection: 1 x DEUTSCH connector (DT04-3P); Maximum cable length: 30 m
Accuracy: < ± 0.05
Response Time: 2 ms
Process Connection: threaded connection G 1/4 external thread (DIN EN ISO 1179-2)
Media Measured: liquids and gases
Maximum Pressure Reading: 65 bar
Minimum Pressure Reading: 0 bar
Pressure Reading Type: Relative
