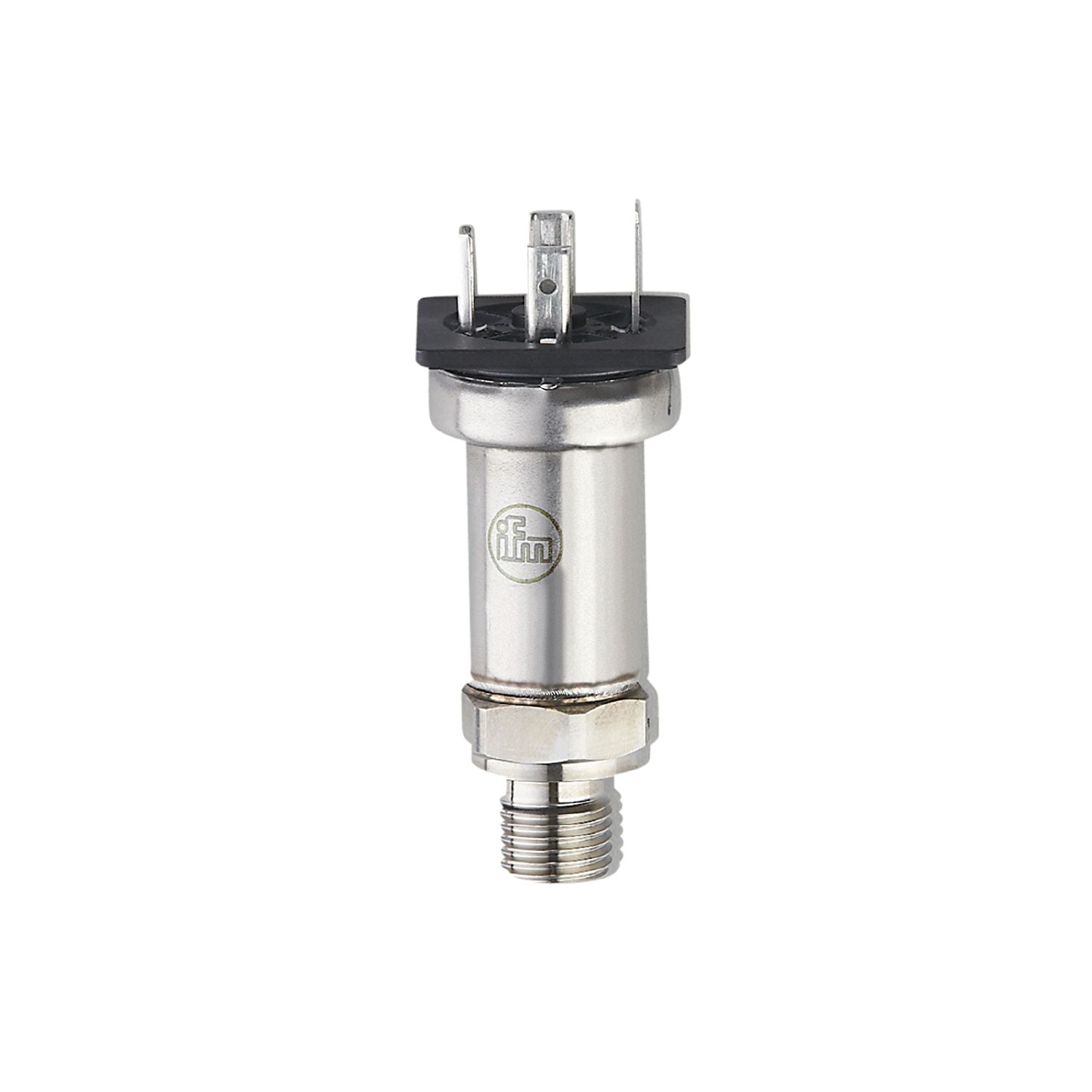

PT5095 - Stainless Steel (630/1.4542/17-4 PH) Relative Pressure Sensor, IP67 (-1 bar to 15 bar)

Name: PT5095 - Stainless Steel (630/1.4542/17-4 PH) Relative Pressure Sensor, IP67 (-1 bar to 15 bar)
Brand: ifm
SKU: PT5095
Price: 609.00 AED
Availability: InStock

SKUPT5095Brandifm

AED 609.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The PT5095 is a high-precision pressure sensor engineered for reliable relative pressure measurement in demanding industrial applications. Encased in a durable stainless steel (630/1.4542/17-4 PH) housing and featuring IP67 protection, this sensor accurately reads pressures ranging from -1 bar to 15 bar. Operating on a 8...36 DC supply voltage and delivering a precise 4...20 mA analogue output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Housing Material: Stainless Steel (630/1.4542/17-4 PH)
IP Rating: IP67
Maximum Operating Temperature: 100°C
Minimum Operating Temperature: -40°C
Series: PT
Standards/Approvals: EMC: Compliant with ECE R 10, rev. 5 | (E1 compliant); DIN EN ISO 13766-1 : 2018 | earthworks and construction machines; DIN EN ISO 14982 : 2009 | agricultural and forestry machines; ISO 11452-2 | 100 V/m; ISO 7637-2 : 2011 pulse 1 | Test severity III. function state C; ISO 7637-2 : 2011 pulse 2b | test severity IV. function state C; DIN EN 61326-1 | ; Shock resistance: DIN EN 60068-2-27 | 500 g (1 ms); Vibration resistance: DIN EN 60068-2-6 | 20 g (10...2000 Hz); UL approval: UL approval no. | J078; File number UL | E174189; Pressure Equipment Directive: Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Supply Voltage: 8...36 DC
Electrical Connection: 1 x valve plug type A DIN (EN175301-803-A)

Accuracy: < ± 0.05
Response Time: 2 ms
Process Connection: threaded connection G 1/4 external thread (DIN EN ISO 1179-2)
Analogue Output: 4...20
Media Measured: liquids and gases
Maximum Pressure Reading: 15 bar
Minimum Pressure Reading: -1 bar
Pressure Reading Type: Relative
