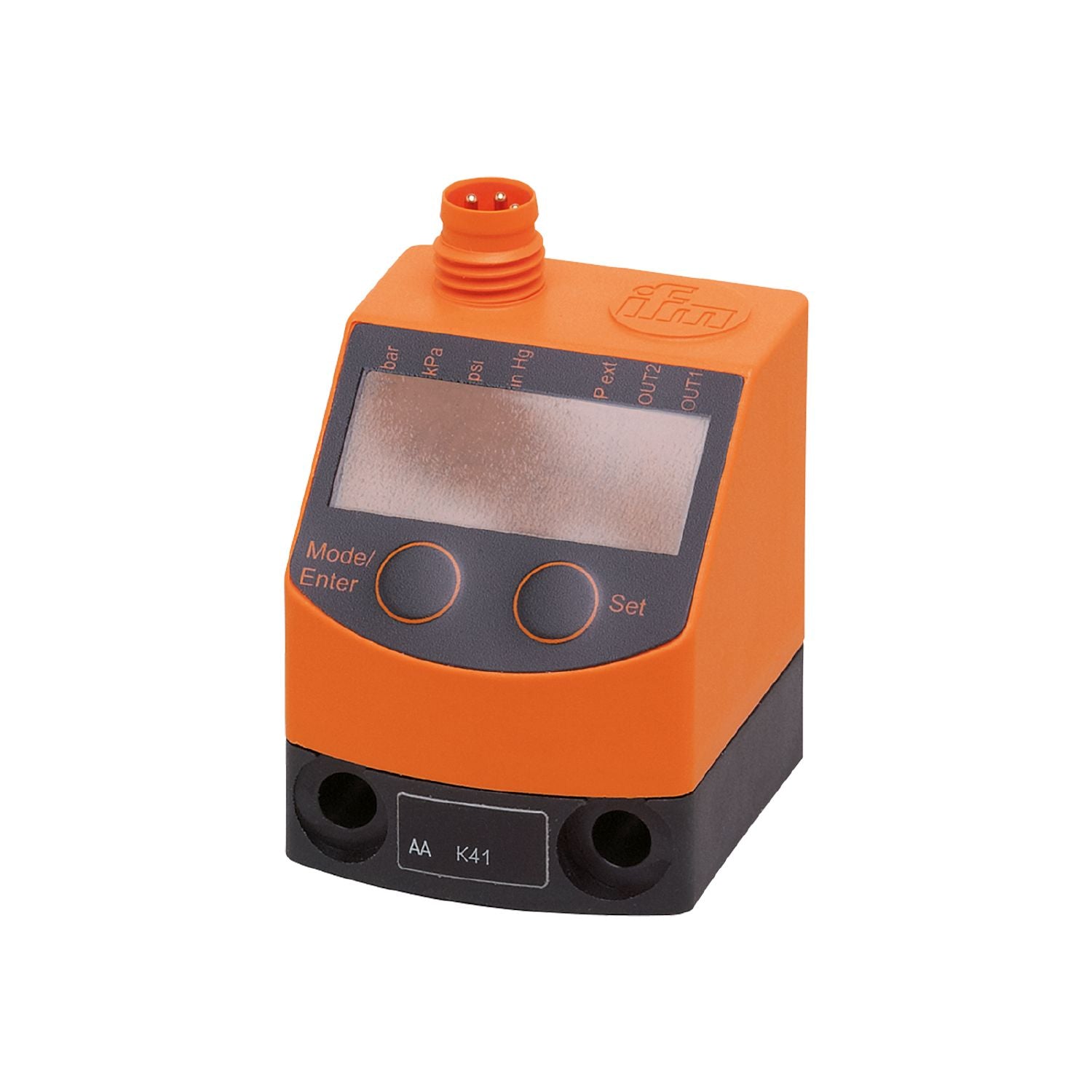

PQ3809 - PBT Relative; Differential; Vacuum Pressure Sensor, IP65 (-1 bar to 20 bar)

Name: PQ3809 - PBT Relative; Differential; Vacuum Pressure Sensor, IP65 (-1 bar to 20 bar)
Brand: ifm
SKU: PQ3809
Price: 958.00 AED
Availability: InStock

SKUPQ3809Brandifm

AED 958.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The PQ3809 is a high-precision pressure sensor engineered for reliable relative; differential; vacuum pressure measurement in demanding industrial applications. Encased in a durable PBT housing and featuring IP65 protection, this sensor accurately reads pressures ranging from -1 bar to 20 bar. Operating on a 18...32 DC supply voltage and delivering a precise PNP output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Housing Material: PBT
IP Rating: IP65
Interface: IO-Link
Maximum Operating Temperature: 70°C
Minimum Operating Temperature: 0°C
Output Type: PNP
Series: PQ
Standards/Approvals: EMC: DIN EN 61000-6-2 | ; DIN EN 61000-6-3 | ; Shock resistance: DIN EN 60068-2-27 | 50 g (11 ms); Vibration resistance: DIN EN 60068-2-6 | 20 g (10...2000 Hz); Pressure Equipment Directive: Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Supply Voltage: 18...32 DC

Electrical Connection: 1 x M8; coding: A; Contacts: gold-plated
Accuracy: < ± 0.1
Response Time: < 6 ms
Communication Protocol: 1.1
Process Connection: threaded connection G 1/8 internal thread internal thread:M5
Maximum Current: 100.0
Analogue Output: 4...20
Maximum Pressure Reading: 20 bar
Minimum Pressure Reading: -1 bar
Pressure Reading Type: Relative; Differential; Vacuum
