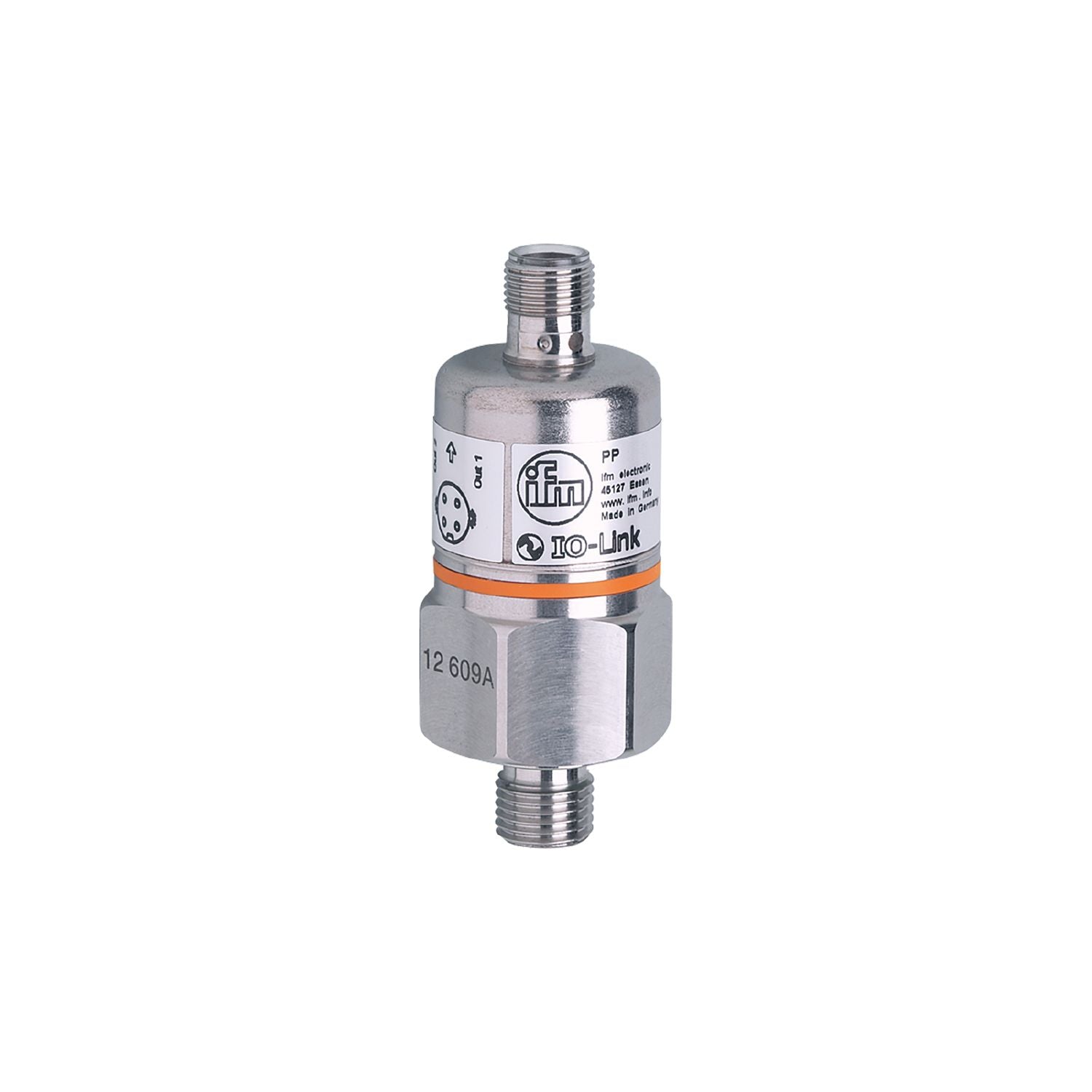

PP7553 - Stainless Steel (304/1.4301) Relative Pressure Sensor, IP68 (0 bar to 150 bar)

Name: PP7553 - Stainless Steel (304/1.4301) Relative Pressure Sensor, IP68 (0 bar to 150 bar)
Brand: ifm
SKU: PP7553
Price: 1194.00 AED
Availability: InStock

SKUPP7553Brandifm

AED 1,194.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The PP7553 is a high-precision pressure sensor engineered for reliable relative pressure measurement in demanding industrial applications. Encased in a durable stainless steel (304/1.4301) housing and featuring IP68 protection, this sensor accurately reads pressures ranging from 0 bar to 150 bar. Operating on a 9.6...36 DC supply voltage and delivering a precise PNP output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Housing Material: Stainless Steel (304/1.4301)
IP Rating: IP68
Interface: IO-Link
Maximum Operating Temperature: 85°C
Minimum Operating Temperature: -25°C
Output Type: PNP
Series: PP
Standards/Approvals: EMC: immunity | EN 61000-6-2; EN 61000-4-2 ESD | 4 kV contact discharge / 15 kV air discharge; EN 61000-4-3 HF radiated | 20 V/m; EN 61000-4-4 Burst | 4 kV coupling clamp; EN 61000-4-5 Surge | 0.5 kV supply / 1 kV signal for DC units; EN 61000-4-6 HF conducted | 10 V; immunity | according to the automotive directive 1995/54/EC / 04/104EG / 05/83/EG; absorber chamber test to ISO 11452-2: | 80 V/m; Shock resistance: DIN IEC 60068-2-27 / DIN IEC 60068-2-29 | 1000 g; DIN EN 61373 | category 3; Vibration resistance: DIN IEC 68-2-6 | 20 g (10...2000 Hz); DIN EN 60068-2-64 | 14 g; DIN EN 61373 | category 2; Pressure Equipment Directive: Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request; Railway applications: DIN EN 50155 | Klasse T3, C1, S1
Supply Voltage: 9.6...36 DC

Electrical Connection: 1 x M12; coding: A
Accuracy: < ± 0.1
Response Time: < 3 ms
Communication Protocol: 1.0
Process Connection: threaded connection G 1/4 external thread internal thread:M5
Maximum Current: 250.0
Media Measured: liquids and gases
Maximum Pressure Reading: 150 bar
Minimum Pressure Reading: 0 bar
Pressure Reading Type: Relative
