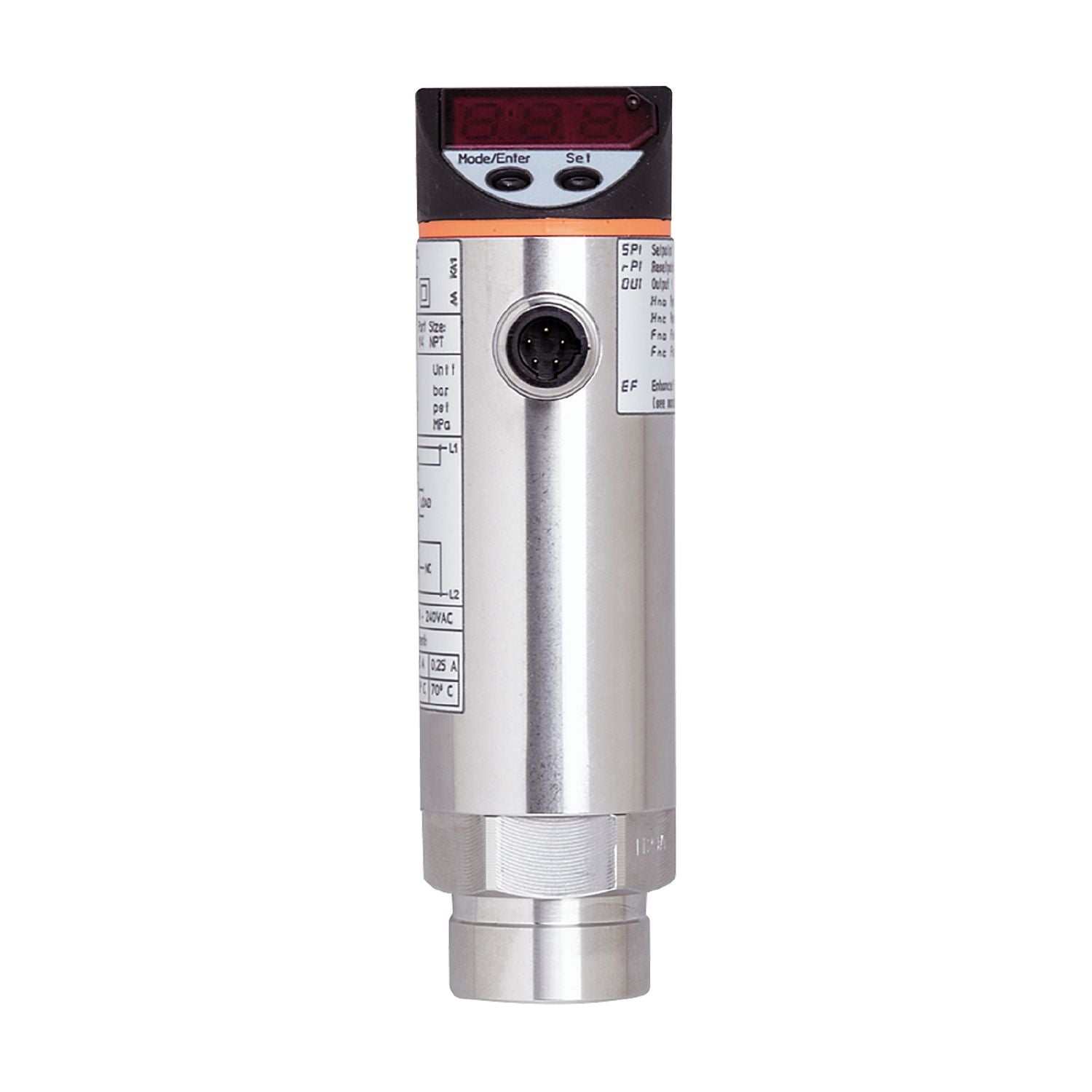

PN4223 - Stainless Steel (304/1.4301) Relative Pressure Sensor, IP65 (0 bar to 100 bar)

Name: PN4223 - Stainless Steel (304/1.4301) Relative Pressure Sensor, IP65 (0 bar to 100 bar)
Brand: ifm
SKU: PN4223
Price: 2290.00 AED
Availability: InStock

SKUPN4223Brandifm

AED 2,290.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The PN4223 is a high-precision pressure sensor engineered for reliable relative pressure measurement in demanding industrial applications. Encased in a durable stainless steel (304/1.4301) housing and featuring IP65 protection, this sensor accurately reads pressures ranging from 0 bar to 100 bar. Operating on a 90...250 AC supply voltage and delivering a precise triac output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Housing Material: Stainless Steel (304/1.4301)
IP Rating: IP65
Maximum Operating Temperature: 80°C
Minimum Operating Temperature: -25°C
Output Type: Triac
Series: PN
Standards/Approvals: EMC: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 10 V; Shock resistance: DIN IEC 68-2-27 | 50 g (11 ms); Vibration resistance: DIN IEC 68-2-6 | 20 g (10...2000 Hz); Pressure Equipment Directive: Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Supply Voltage: 90...250 AC
