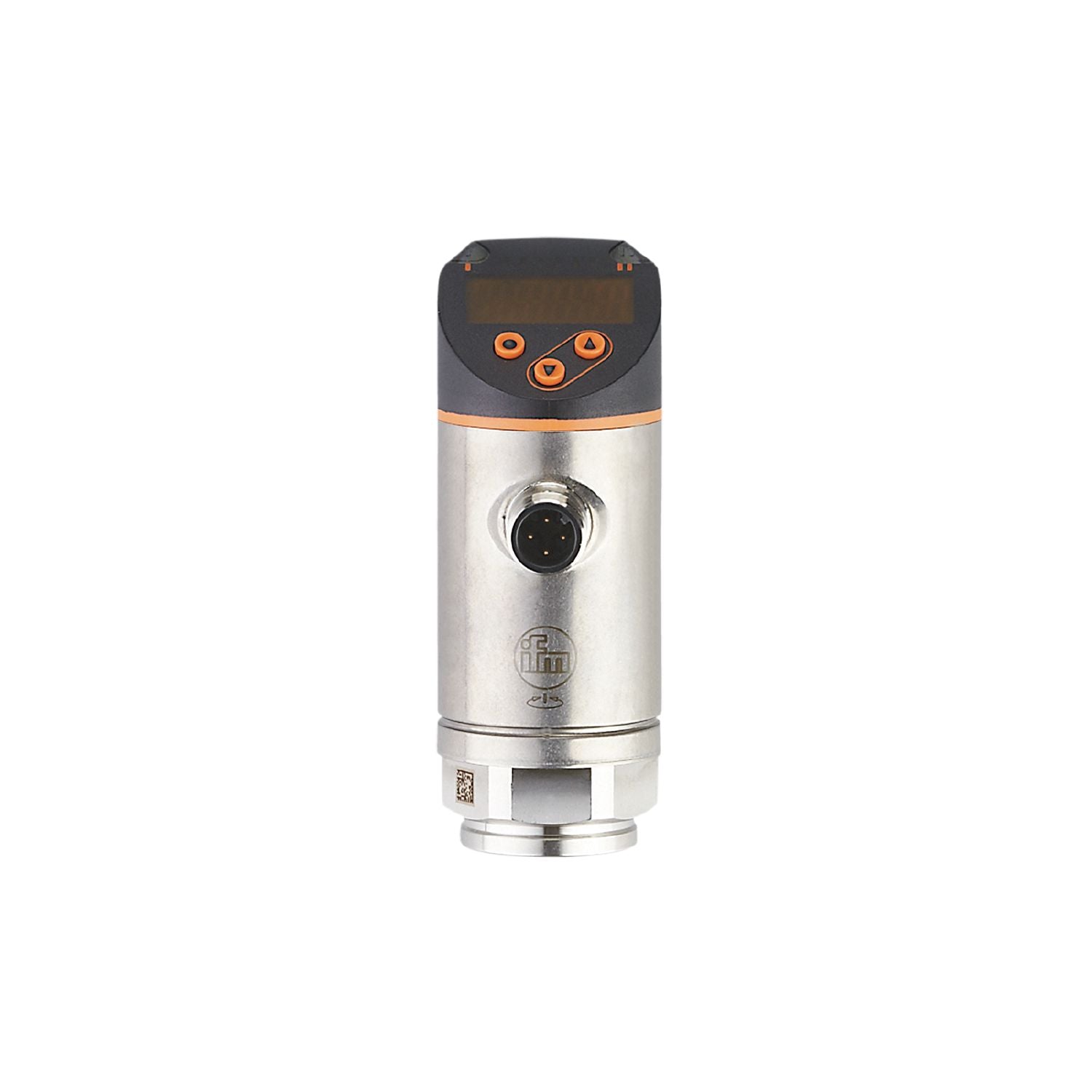

PN3092 - Stainless Steel (316L/1.4404) Relative Pressure Sensor, IP65; IP67 (0 bar to 300 bar)

Name: PN3092 - Stainless Steel (316L/1.4404) Relative Pressure Sensor, IP65; IP67 (0 bar to 300 bar)
Brand: ifm
SKU: PN3092
Price: 2021.00 AED
Availability: InStock

SKUPN3092Brandifm

AED 2,021.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The PN3092 is a high-precision pressure sensor engineered for reliable relative pressure measurement in demanding industrial applications. Encased in a durable stainless steel (316L/1.4404) housing and featuring IP65; IP67 protection, this sensor accurately reads pressures ranging from 0 bar to 300 bar. Operating on a 18...30 DC supply voltage and delivering a precise PNP output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Housing Material: Stainless Steel (316L/1.4404)
IP Rating: IP65; IP67
Interface: IO-Link
Maximum Operating Temperature: 80°C
Minimum Operating Temperature: -25°C
Output Type: PNP
Series: PN
Standards/Approvals: EMC: DIN EN 61000-6-2 | ; DIN EN 61000-6-3 | ; Shock resistance: DIN EN 60068-2-27 | 50 g (11 ms); Vibration resistance: DIN EN 60068-2-6 | 20 g (10...2000 Hz); UL approval: UL approval no. | J005; Pressure Equipment Directive: Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Supply Voltage: 18...30 DC
Electrical Connection: 1 x M12; coding: A; Contacts: gold-plated
