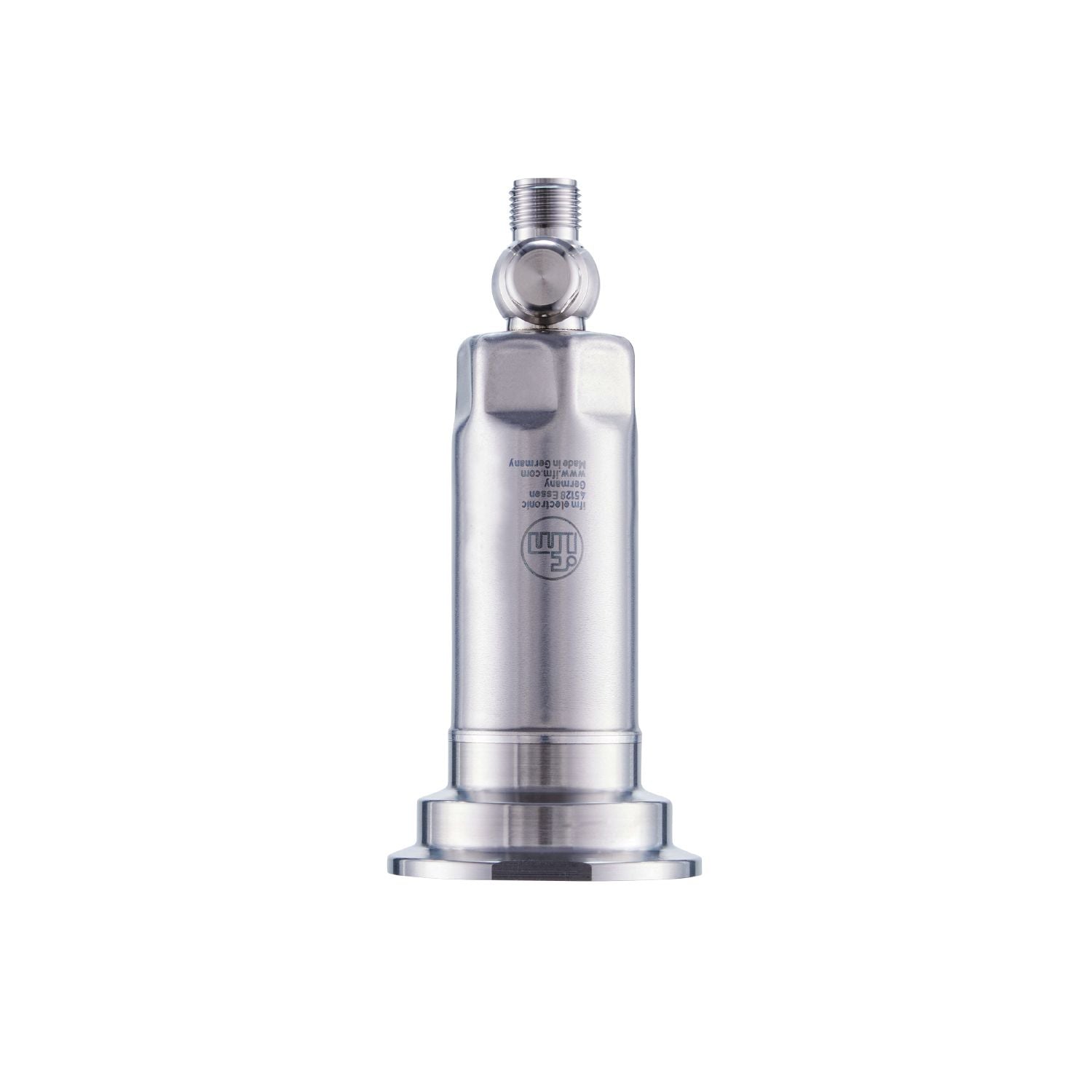

PM1115 - Stainless Steel (316L/1.4404) Relative; Vacuum Pressure Sensor, IP67; IP68; IP69K (-1 bar to 30 bar)

Name: PM1115 - Stainless Steel (316L/1.4404) Relative; Vacuum Pressure Sensor, IP67; IP68; IP69K (-1 bar to 30 bar)
Brand: ifm
SKU: PM1115
Price: 2527.00 AED
Availability: InStock

SKUPM1115Brandifm

AED 2,527.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The PM1115 is a high-precision pressure sensor engineered for reliable relative; vacuum pressure measurement in demanding industrial applications. Encased in a durable stainless steel (316L/1.4404) housing and featuring IP67; IP68; IP69K protection, this sensor accurately reads pressures ranging from -1 bar to 30 bar. Operating on a 18...30 DC supply voltage and delivering a precise 4...20 mA analogue output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Housing Material: Stainless Steel (316L/1.4404)
IP Rating: IP67; IP68; IP69K
Interface: IO-Link
Maximum Operating Temperature: 80°C
Minimum Operating Temperature: -25°C
Series: PM
Standards/Approvals: EMC: DIN EN 61000-6-2 | ; DIN EN 61000-6-3 | ; Shock resistance: DIN EN 60068-2-27 | 50 g (11 ms); Vibration resistance: DIN EN 60068-2-6 | 20 g (10...2000 Hz); Note on approval: factory certificate available as download at www.factory-certificate.ifm; UL approval: UL approval no. | J055; File number UL | E174189
Supply Voltage: 18...30 DC
Electrical Connection: 1 x M12; coding: A; Contacts: gold-plated

Accuracy: < ± 0.1
Response Time: 7 ms
Communication Protocol: 1.1
Process Connection: Clamp DN25...DN40 (1...1.5") DIN 32676 (ISO 2852)
Analogue Output: 4...20
Media Measured: viscous media and liquids with suspended particles; liquids and gases
Maximum Pressure Reading: 30 bar
Minimum Pressure Reading: -1 bar
Pressure Reading Type: Relative; Vacuum
