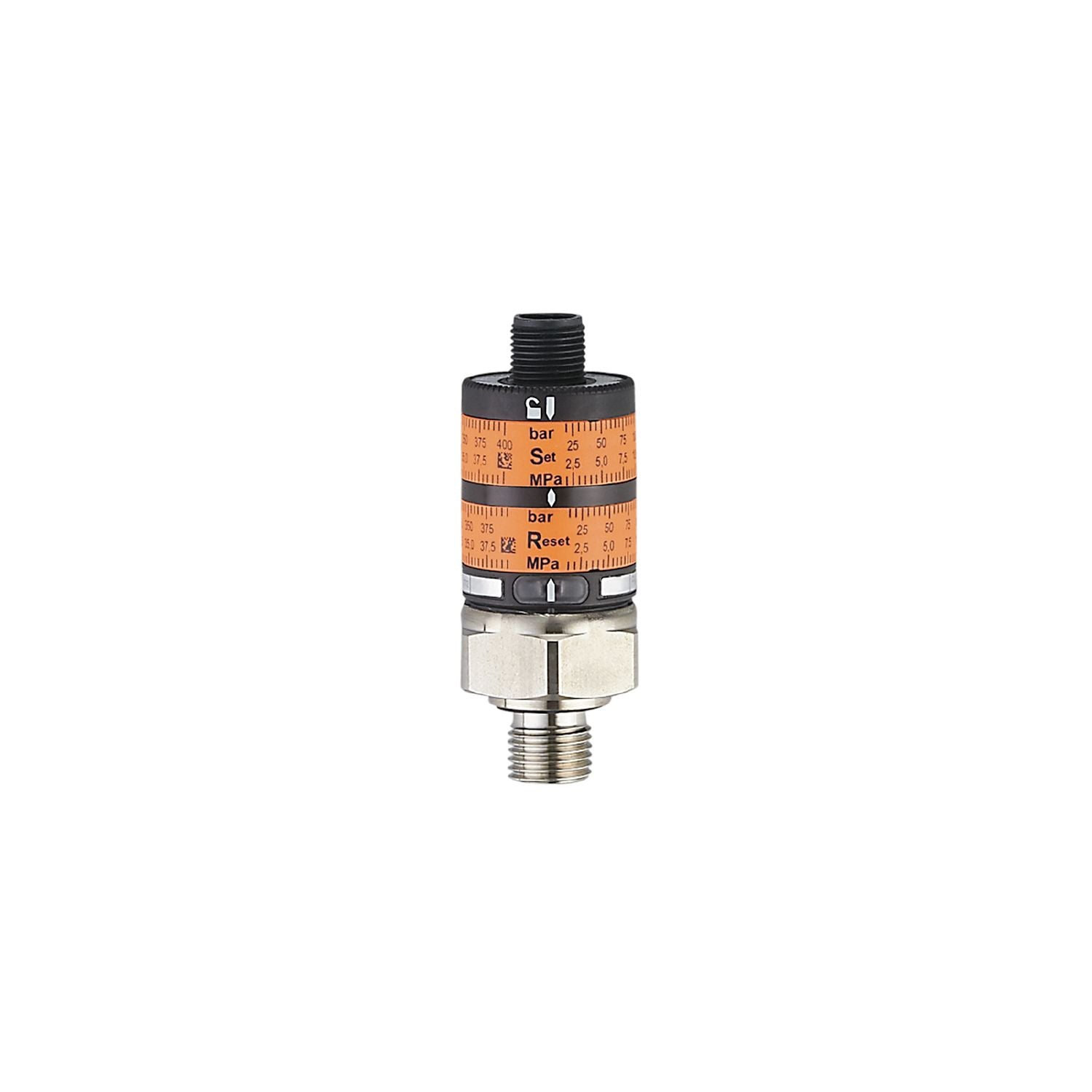

PK6534 - PBT Relative Pressure Sensor, IP67 (0 bar to 25 bar)

Name: PK6534 - PBT Relative Pressure Sensor, IP67 (0 bar to 25 bar)
Brand: ifm
SKU: PK6534
Price: 967.00 AED
Availability: InStock

SKUPK6534Brandifm

AED 967.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The PK6534 is a high-precision pressure sensor engineered for reliable relative pressure measurement in demanding industrial applications. Encased in a durable PBT housing and featuring IP67 protection, this sensor accurately reads pressures ranging from 0 bar to 25 bar. Operating on a 9.6...32 DC supply voltage and delivering a precise PNP output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Housing Material: PBT
IP Rating: IP67
Maximum Operating Temperature: 80°C
Minimum Operating Temperature: -25°C
Output Type: PNP
Series: PK
Standards/Approvals: EMC: DIN EN 61000-6-2 | ; DIN EN 61000-6-3 | ; Shock resistance: DIN IEC 68-2-27 | 50 g (11 ms); Vibration resistance: DIN IEC 68-2-6 | 20 g (10...2000 Hz); Pressure Equipment Directive: Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Supply Voltage: 9.6...32 DC

Electrical Connection: 1 x M12; coding: A
Accuracy: < ± 0.5
Process Connection: threaded connection G 1/4 external thread internal thread:M5
Maximum Current: 500.0
Media Measured: liquids and gases
Maximum Pressure Reading: 25 bar
Minimum Pressure Reading: 0 bar
Pressure Reading Type: Relative
