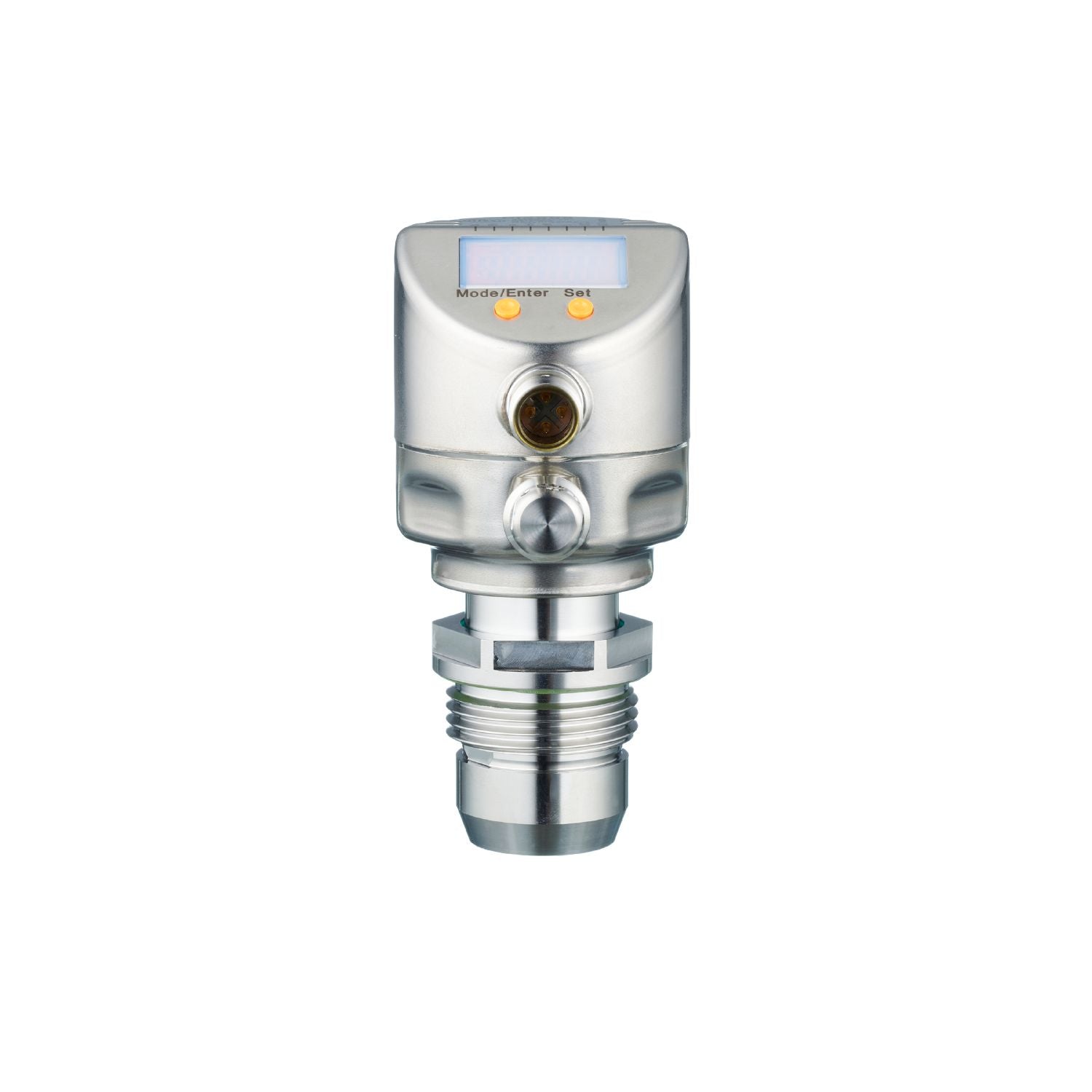

PI2895 - Stainless Steel (316L/1.4404) Relative; Vacuum Pressure Sensor, IP67; IP68; IP69K (-1 bar to 30 bar)

Name: PI2895 - Stainless Steel (316L/1.4404) Relative; Vacuum Pressure Sensor, IP67; IP68; IP69K (-1 bar to 30 bar)
Brand: ifm
SKU: PI2895
Price: 3458.00 AED
Availability: InStock

SKUPI2895Brandifm

AED 3,458.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The PI2895 is a high-precision pressure sensor engineered for reliable relative; vacuum pressure measurement in demanding industrial applications. Encased in a durable stainless steel (316L/1.4404) housing and featuring IP67; IP68; IP69K protection, this sensor accurately reads pressures ranging from -1 bar to 30 bar. Operating on a 18...32 DC supply voltage and delivering a precise PNP/NPN output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Housing Material: Stainless Steel (316L/1.4404)
IP Rating: IP67; IP68; IP69K
Interface: IO-Link
Maximum Operating Temperature: 80°C
Minimum Operating Temperature: -25°C
Output Type: PNP/NPN
Series: PI
Standards/Approvals: EMC: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-5 Surge | 0.5/1 kV; EN 61000-4-6 HF conducted | 10 V; Shock resistance: DIN IEC 68-2-27 | 50 g (11 ms); Vibration resistance: DIN IEC 68-2-6 | 20 g (10...2000 Hz)
Supply Voltage: 18...32 DC
Electrical Connection: 1 x M12; coding: A; Contacts: gold-plated

Accuracy: < ± 0.1
Response Time: 7 ms
Communication Protocol: 1.0
Process Connection: threaded connection G 1 external thread sealing cone Attention: The unit must only be installed in a process connection for G1 sealing cone.; The G1A sealing cone of the unit is only suited for adapters with metal end stop.
Maximum Current: 250.0
Analogue Output: 4...20, invertible
Media Measured: viscous media and liquids with suspended particles; liquids and gases
Maximum Pressure Reading: 30 bar
Minimum Pressure Reading: -1 bar
Pressure Reading Type: Relative; Vacuum
