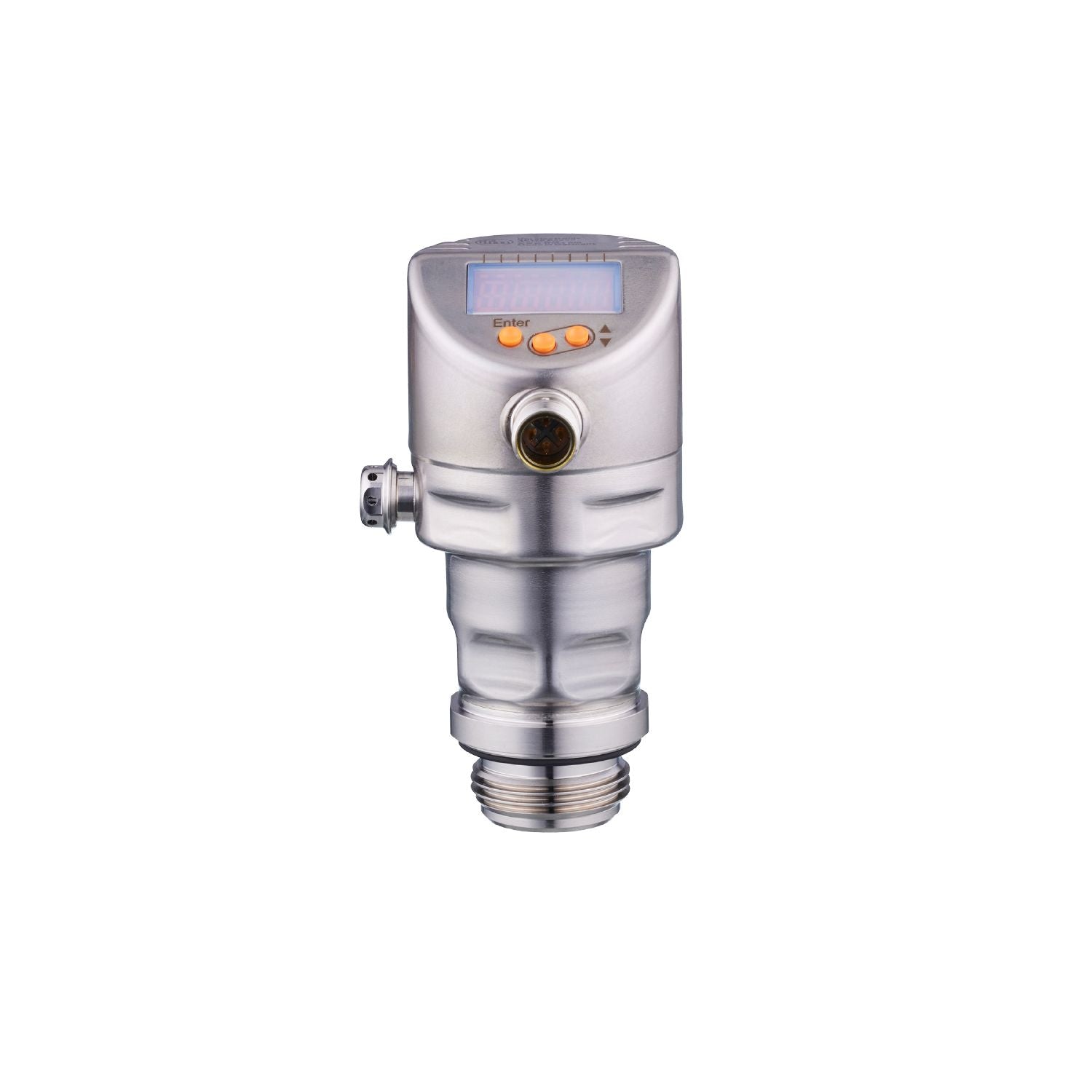

PI1008 - Stainless Steel (316L/1.4404) Relative; Vacuum Pressure Sensor, IP67; IP68; IP69K (-12.4 mbar to 6000 mbar)

Name: PI1008 - Stainless Steel (316L/1.4404) Relative; Vacuum Pressure Sensor, IP67; IP68; IP69K (-12.4 mbar to 6000 mbar)
Brand: ifm
SKU: PI1008
Price: 3098.00 AED
Availability: InStock

SKUPI1008Brandifm

AED 3,098.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The PI1008 is a high-precision pressure sensor engineered for reliable relative; vacuum pressure measurement in demanding industrial applications. Encased in a durable stainless steel (316L/1.4404) housing and featuring IP67; IP68; IP69K protection, this sensor accurately reads pressures ranging from -12.4 mbar to 6000 mbar. Operating on a 20...30 DC supply voltage and delivering a precise PNP/NPN output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Housing Material: Stainless Steel (316L/1.4404)
IP Rating: IP67; IP68; IP69K
Interface: IO-Link
Maximum Operating Temperature: 80°C
Minimum Operating Temperature: -25°C
Output Type: PNP/NPN
Series: PI
Standards/Approvals: UL: UL approval no.J048 File number ULE174189; EMC: DIN EN 61326-1
Supply Voltage: 20...30 DC
Electrical Connection: 1 x M12; coding: A; Contacts: gold-plated

Accuracy: < ± 0.1
Response Time: 30 ms
Communication Protocol: 1.1
Process Connection: threaded connection S30x2 external thread Aseptoflex
Maximum Current: 100.0
Analogue Output: 4...20, invertible
Media Measured: viscous media and liquids with suspended particles; liquids and gases
Maximum Pressure Reading: 6000 mbar
Minimum Pressure Reading: -12.4 mbar
Pressure Reading Type: Relative; Vacuum
