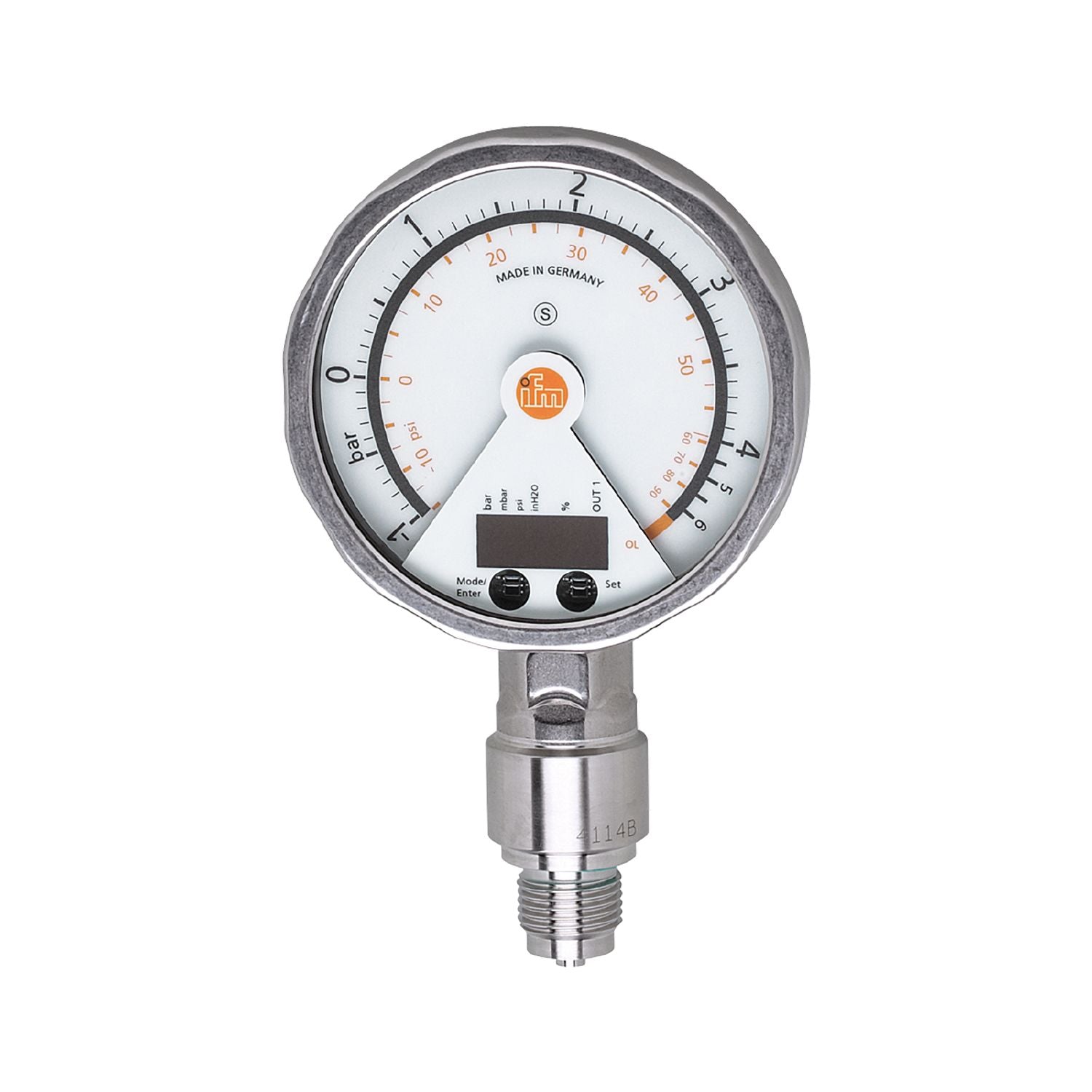

PG2455 - Stainless Steel (316L/1.4404) Relative; Vacuum Pressure Sensor, IP67; IP69K (-1 bar to 30 bar)

Name: PG2455 - Stainless Steel (316L/1.4404) Relative; Vacuum Pressure Sensor, IP67; IP69K (-1 bar to 30 bar)
Brand: ifm
SKU: PG2455
Price: 2620.00 AED
Availability: InStock

SKUPG2455Brandifm

AED 2,620.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The PG2455 is a high-precision pressure sensor engineered for reliable relative; vacuum pressure measurement in demanding industrial applications. Encased in a durable stainless steel (316L/1.4404) housing and featuring IP67; IP69K protection, this sensor accurately reads pressures ranging from -1 bar to 30 bar. Operating on a 18...32 DC supply voltage and delivering a precise PNP/NPN output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Housing Material: Stainless Steel (316L/1.4404)
IP Rating: IP67; IP69K
Maximum Operating Temperature: 80°C
Minimum Operating Temperature: -20°C
Output Type: PNP/NPN
Series: PG
Standards/Approvals: EMC: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-5 Surge | 0.5/1 kV; EN 61000-4-6 HF conducted | 10 V; Shock resistance: DIN EN 60068-2-27 | 50 g (11 ms); Vibration resistance: DIN EN 60068-2-6 | 10 g (10...2000 Hz); Pressure Equipment Directive: Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Supply Voltage: 18...32 DC
Electrical Connection: 1 x M12; coding: A; Contacts: gold-plated
