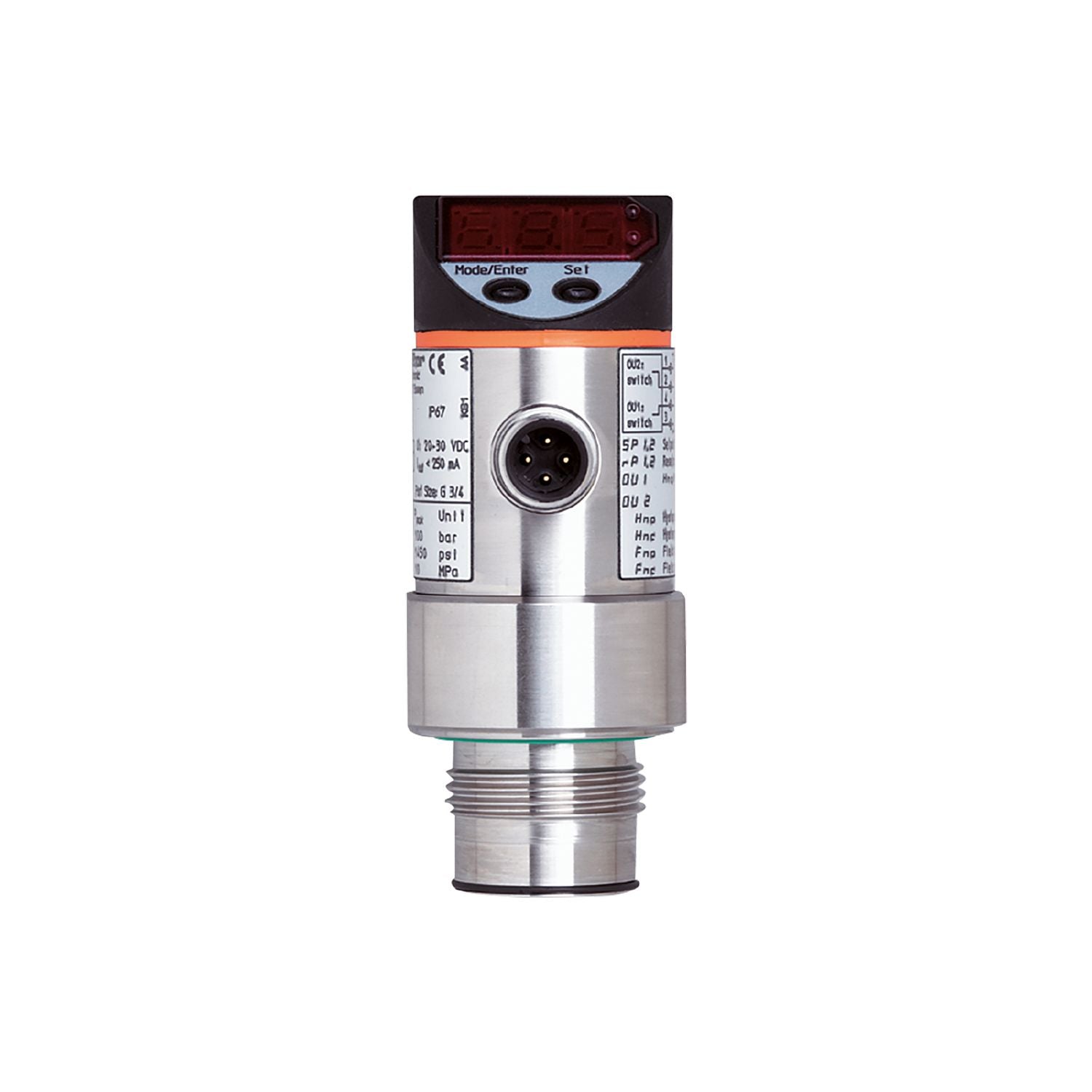

PF2956 - Stainless Steel (316L/1.4404) Relative Pressure Sensor, IP67 (-0.13 bar to 20 bar)

Name: PF2956 - Stainless Steel (316L/1.4404) Relative Pressure Sensor, IP67 (-0.13 bar to 20 bar)
Brand: ifm
SKU: PF2956
Price: 3625.00 AED
Availability: InStock

SKUPF2956Brandifm

AED 3,625.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The PF2956 is a high-precision pressure sensor engineered for reliable relative pressure measurement in demanding industrial applications. Encased in a durable stainless steel (316L/1.4404) housing and featuring IP67 protection, this sensor accurately reads pressures ranging from -0.13 bar to 20 bar. Operating on a 20...30 DC supply voltage and delivering a precise PNP/NPN output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Housing Material: Stainless Steel (316L/1.4404)
IP Rating: IP67
Maximum Operating Temperature: 80°C
Minimum Operating Temperature: -25°C
Output Type: PNP/NPN
Series: PF
Standards/Approvals: EMC: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 10 V; Shock resistance: DIN IEC 68-2-27 | 50 g (11 ms); Vibration resistance: DIN IEC 68-2-6 | 20 g (10...2000 Hz)
Supply Voltage: 20...30 DC
Electrical Connection: 1 x M12; coding: A; Contacts: gold-plated

Accuracy: < ± 0.1
Response Time: < 3 ms
Process Connection: threaded connection G 3/4 external thread
Maximum Current: 250.0
Analogue Output: 4...20
Media Measured: viscous media and liquids with suspended particles; liquids and gases
Maximum Pressure Reading: 20 bar
Minimum Pressure Reading: -0.13 bar
Pressure Reading Type: Relative
