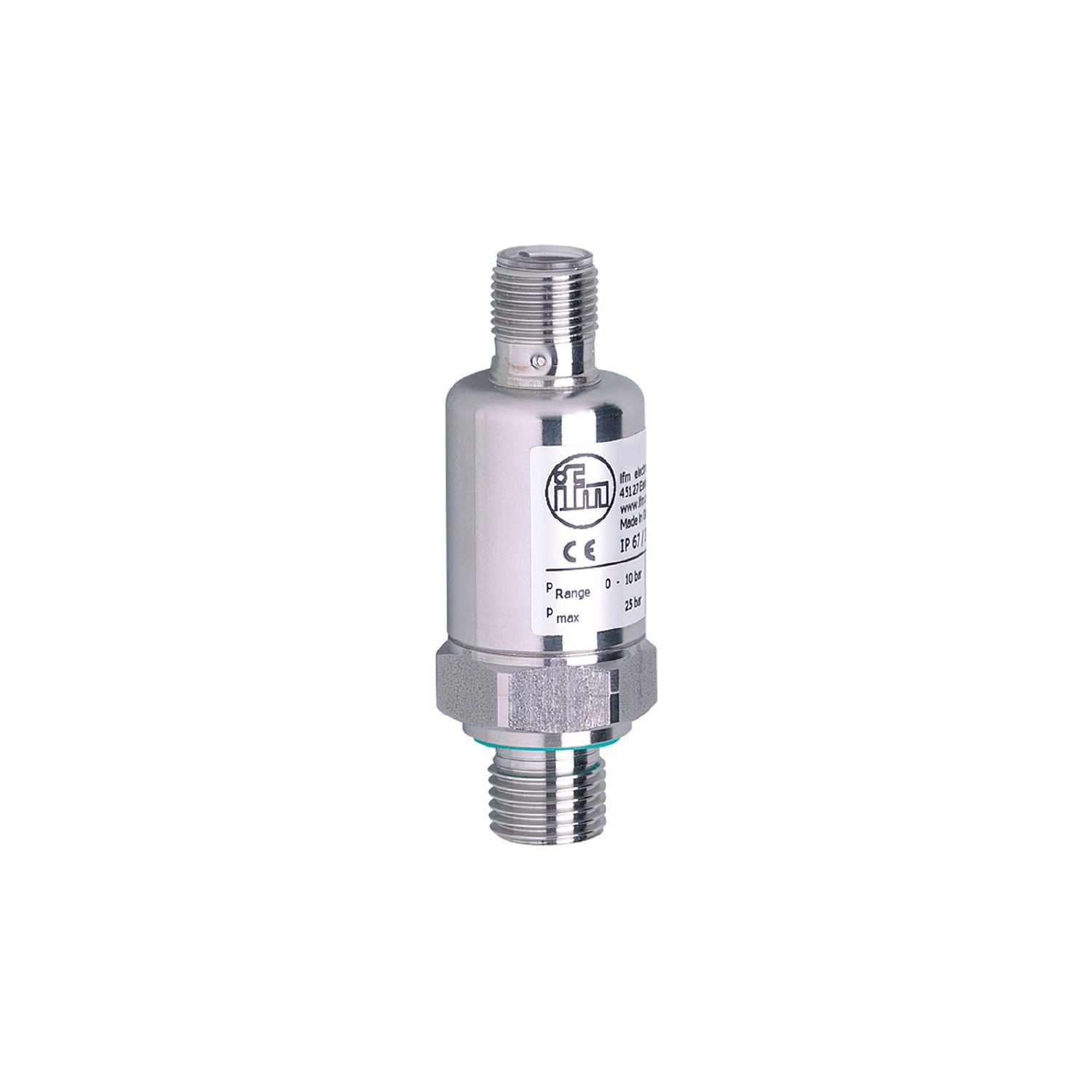

PC9050 - Stainless Steel (316L/1.4404) Relative Pressure Sensor, IP67; IP69K (0 bar to 600 bar)

Name: PC9050 - Stainless Steel (316L/1.4404) Relative Pressure Sensor, IP67; IP69K (0 bar to 600 bar)
Brand: ifm
SKU: PC9050
Price: 787.00 AED
Availability: InStock

SKUPC9050Brandifm

AED 787.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The PC9050 is a high-precision pressure sensor engineered for reliable relative pressure measurement in demanding industrial applications. Encased in a durable stainless steel (316L/1.4404) housing and featuring IP67; IP69K protection, this sensor accurately reads pressures ranging from 0 bar to 600 bar. Operating on a 5 DC supply voltage and designed to measure liquids and gases, it provides seamless integration into your process control and automated monitoring systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Housing Material: Stainless Steel (316L/1.4404)
IP Rating: IP67; IP69K
Maximum Operating Temperature: 90°C
Minimum Operating Temperature: -25°C
Series: PC
Standards/Approvals: EMC: immunity | according to the automotive directive 1995/54/EC; ISO 11452-2 | 100 V/m; ISO 11452-4 | 100 mA / severity level 4; DIN EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; DIN EN 61000-6-2 | ; radiation of interference | ; CISPR 25 | ; DIN EN 61000-6-3 | ; Shock resistance: DIN EN 60068-2-27 | 50 g (11 ms); Vibration resistance: DIN EN 60068-2-6 | 20 g (10...2000 Hz); UL approval: UL approval no. | J04X
Supply Voltage: 5 DC
