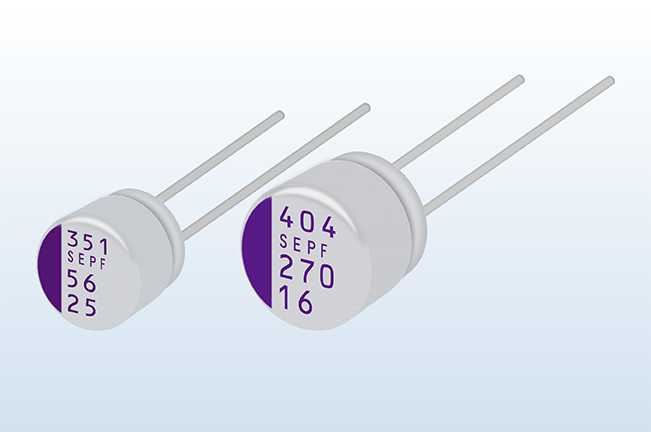

Panasonic Polymer Capacitors 20SEPF180M

Panasonic Polymer Capacitors 20SEPF180M

SKU20SEPF180MBrandPanasonic
Regular price AED 513.21
Regular price Sale price AED 513.21
Sale Sold out
Shipping calculated at checkout.

Panasonic, SEPF polymeric capacitor, 180 F, 20V dc, through-hole mounting

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Talk to a Specialist
  • Brand: Panasonic
  • Technology: Polymer
  • Capacitance: 180µF
  • Voltage: 20V dc
  • Mounting Type: Through Hole
  • Equivalent Series Resistance: 25m?
  • Lead Pitch: 3.5mm
  • Tolerance: ±20%
  • Height: 7mm
  • Maximum Operating Temperature: +105°C
  • Dimensions: 8 (Dia) x 7mm
  • Series: SEPF
  • Polarised: Polar
  • Ripple Current: 3.2A
  • Minimum Operating Temperature: -55°C
  • Diameter: 8mm
  • Leakage Current: 720 ?A
  • Lifetime: 5000h
  • Dissipation Factor: 12%
