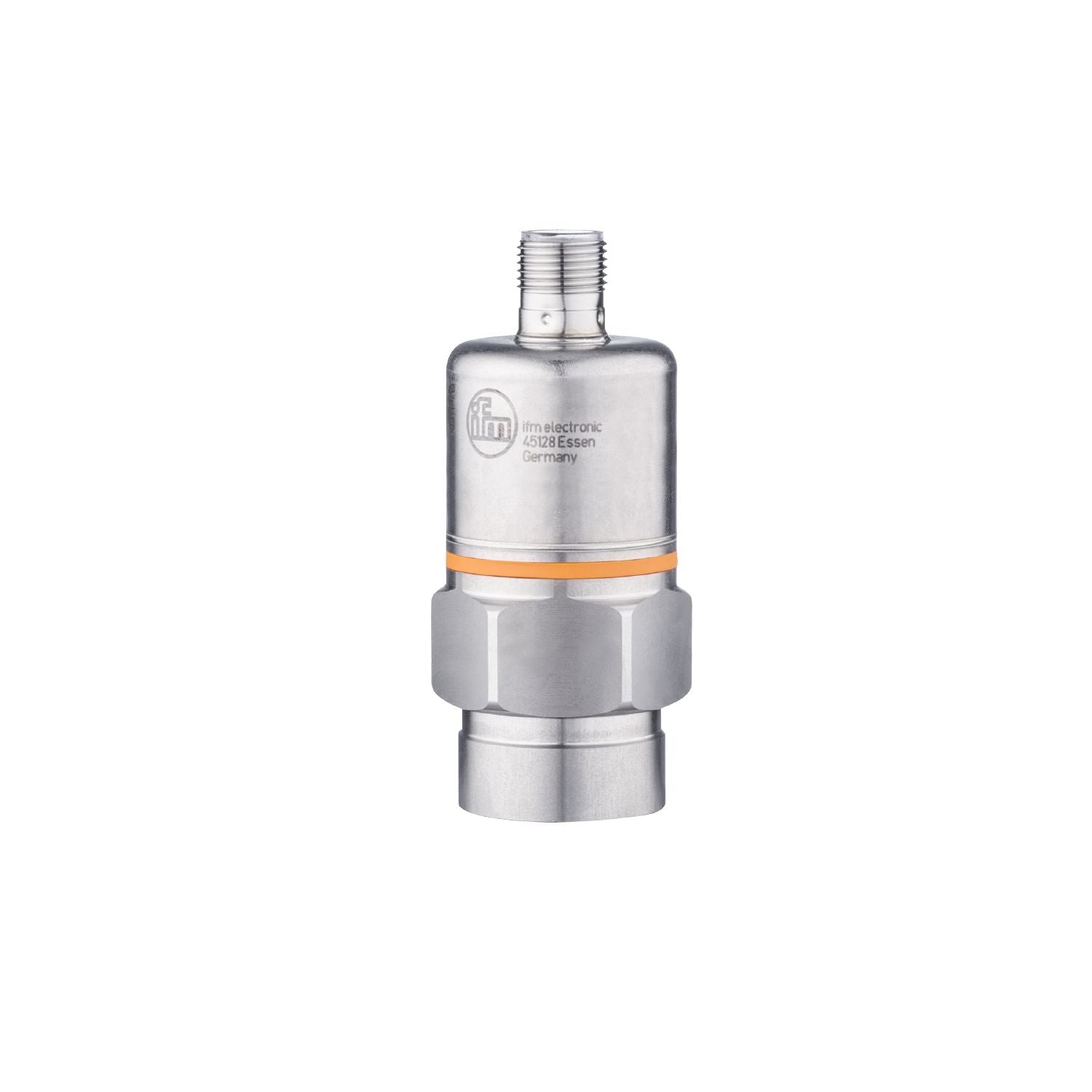

PA30ZA - Stainless Steel (316L/1.4404) Relative Pressure Sensor, IP65; IP67 (0 bar to 4000 mbar)

Name: PA30ZA - Stainless Steel (316L/1.4404) Relative Pressure Sensor, IP65; IP67 (0 bar to 4000 mbar)
Brand: ifm
SKU: PA30ZA
Price: 1609.00 AED
Availability: InStock

SKUPA30ZABrandifm

AED 1,609.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The PA30ZA is a high-precision pressure sensor engineered for reliable relative pressure measurement in demanding industrial applications. Encased in a durable stainless steel (316L/1.4404) housing and featuring IP65; IP67 protection, this sensor accurately reads pressures ranging from 0 bar to 4000 mbar. Operating on a 9.6...32 DC supply voltage and delivering a precise 4...20 mA analogue output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Brand: ifm
Hazardous Area Certification: II 3D Ex tc IIIC T85°C Dc X
Housing Material: Stainless Steel (316L/1.4404)
IP Rating: IP65; IP67
Maximum Operating Temperature: 60°C
Minimum Operating Temperature: -20°C
Series: PA
Standards/Approvals: ATEX marking: II 3D Ex tc IIIC T85°C Dc X; EMC: DIN EN 61000-6-2 | ; DIN EN 61000-6-3 | ; Shock resistance: DIN EN 60068-2-27 | 50 g (11 ms); Vibration resistance: DIN EN 60068-2-6 | 20 g (10...2000 Hz); Pressure Equipment Directive: Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Supply Voltage: 9.6...32 DC

Electrical Connection: 1 x M12; coding: A; Contacts: gold-plated
Accuracy: < 0.2
Response Time: 3 ms
Process Connection: threaded connection G 1/4 internal thread
Analogue Output: 4...20
Media Measured: liquids and gases
Maximum Pressure Reading: 4000 mbar
Minimum Pressure Reading: 0 bar
Pressure Reading Type: Relative
