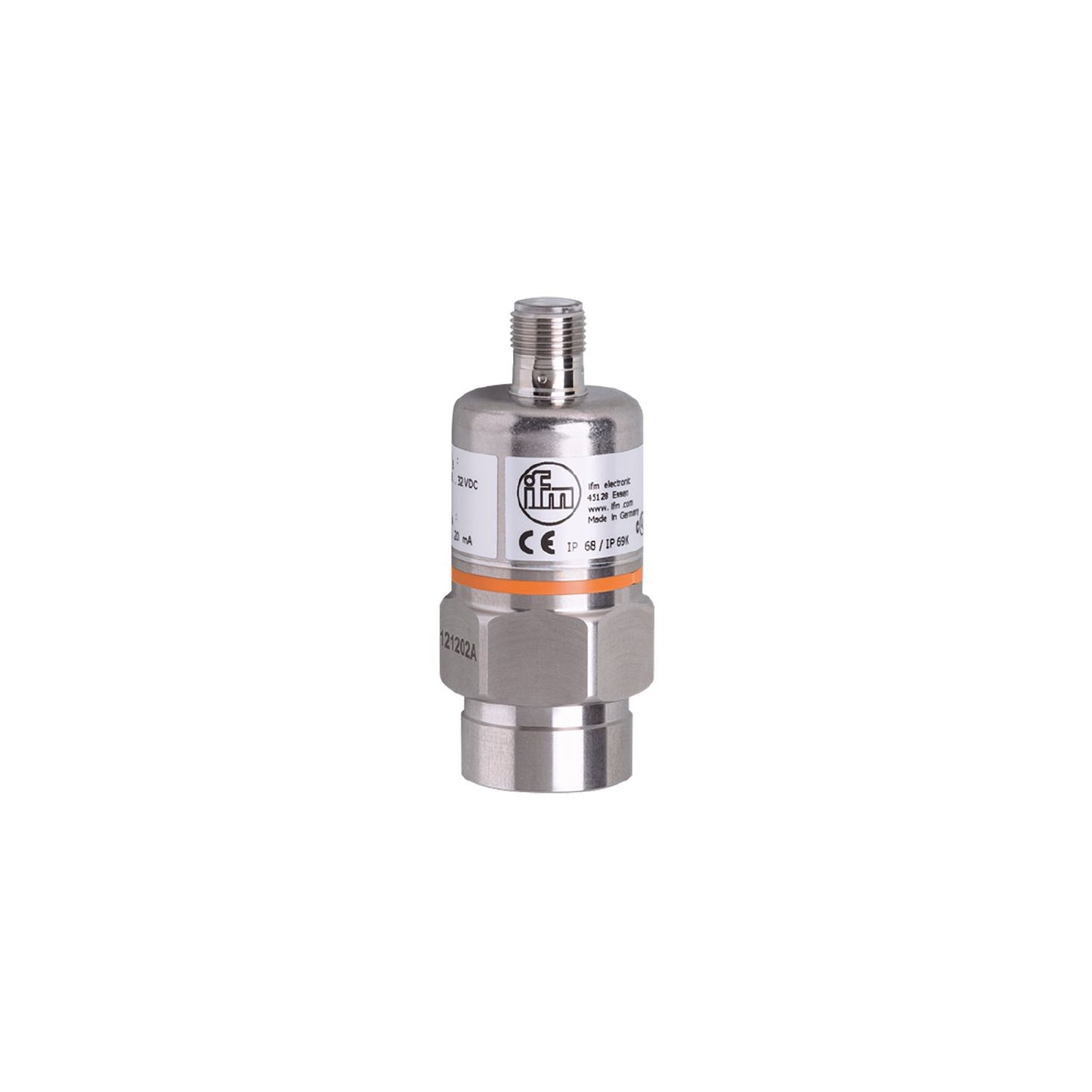

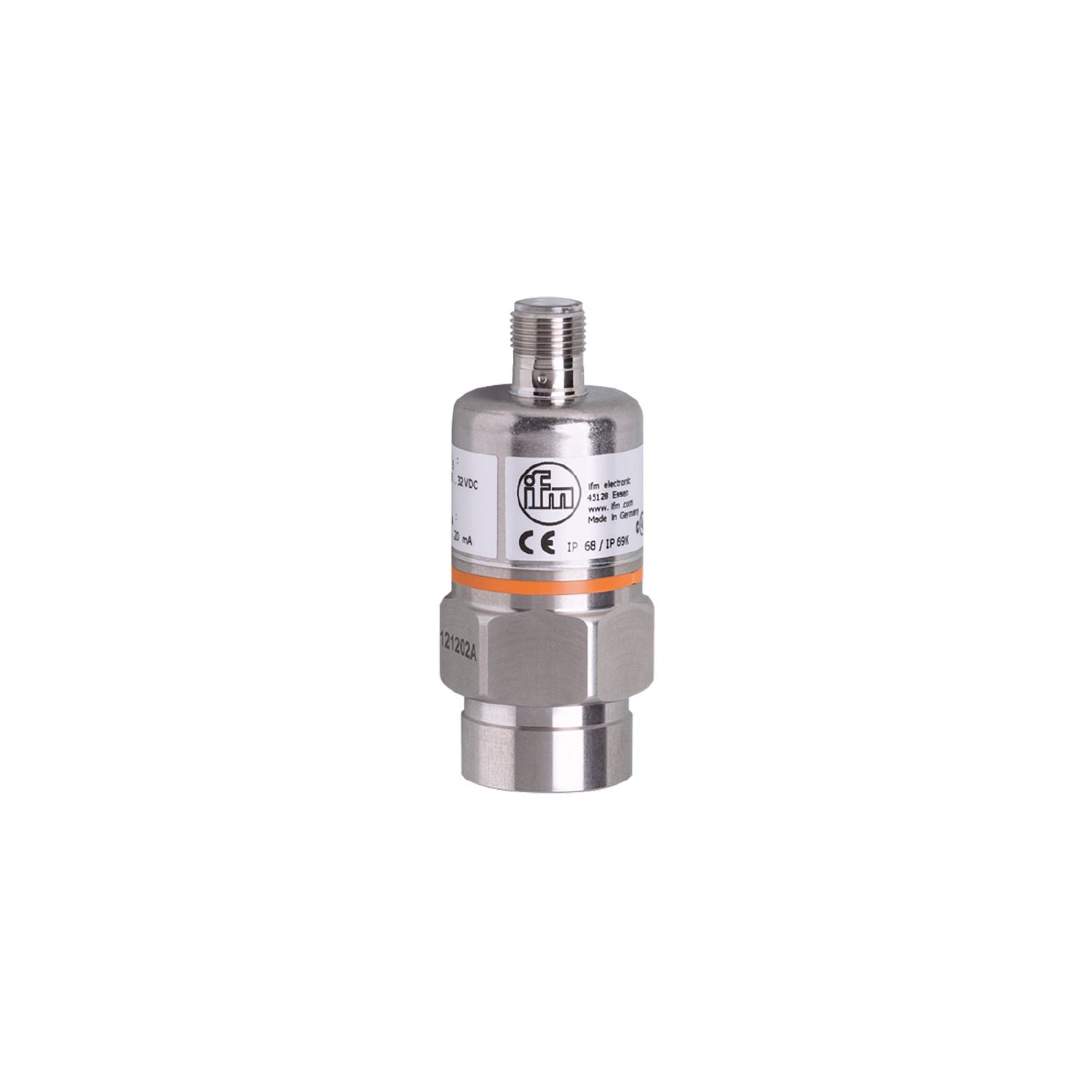

PA3026 - Stainless Steel (316L/1.4404) Relative Pressure Sensor, IP65 (0 bar to 20 bar)

Name: PA3026 - Stainless Steel (316L/1.4404) Relative Pressure Sensor, IP65 (0 bar to 20 bar)
Brand: ifm
SKU: PA3026
Price: 1299.00 AED
Availability: InStock

SKUPA3026Brandifm

AED 1,299.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The PA3026 is a high-precision pressure sensor engineered for reliable relative pressure measurement in demanding industrial applications. Encased in a durable stainless steel (316L/1.4404) housing and featuring IP65 protection, this sensor accurately reads pressures ranging from 0 bar to 20 bar. Operating on a 9.6...32 DC supply voltage and delivering a precise 4...20 mA analogue output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Housing Material: Stainless Steel (316L/1.4404)
IP Rating: IP65
Maximum Operating Temperature: 80°C
Minimum Operating Temperature: -25°C
Series: PA
Standards/Approvals: EMC: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 30 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 10 V; radiation of interference | according to the automotive directive 2004/104/EC; CISPR 25 | ; immunity | according to the automotive directive 2004/104/EC; ISO 11452-2 HF radiated | 100 V/m; ISO 7637-2 pulse | severity level 4; Shock resistance: DIN EN 60068-2-27 | 50 g (11 ms); DIN EN 61373 | category 3; Vibration resistance: DIN EN 60068-2-6 | 20 g (10...2000 Hz); DIN EN 61373 | category 2; Pressure Equipment Directive: Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request; Railway applications: DIN EN 50155 / IEC 60571 | Klasse T3, C1, S1
Supply Voltage: 9.6...32 DC
Electrical Connection: 1 x M12; coding: A; Contacts: gold-plated
