• Omron - XS5W-D421-C81-F
1 1

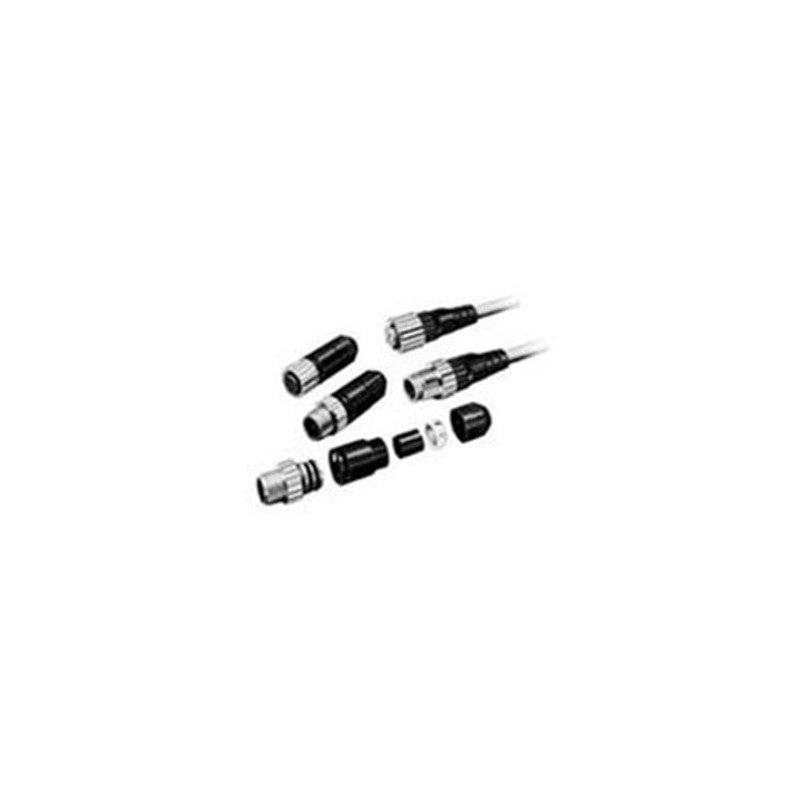

XS5W-D421-C81-F - Omron Sensor & Actuator Cable, 1m M12 (4-Core)

XS5W-D421-C81-F - Omron Sensor & Actuator Cable, 1m M12 (4-Core)

SKUXS5W-D421-C81-FBrandOmron
AED 105.00
AED 105.00
Sale Sold out
Shipping calculated at checkout.

The XS5W-D421-C81-F is a professional-grade sensor and actuator cable from Omron, part of the XS5 series. Measuring 1m in length with 4 cores and 0.75 mm² cross-sectional area, this cable features a M12 Female (Straight) connector. Constructed with a Grey TPE sheath and rated IP67, supporting 250 VDC at 4 A, it is designed for dependable sensor-to-actuator connectivity in industrial automation, robotics, and process control environments.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Omron
  • American Wire Gauge: 20 AWG
  • Connector 1: M12
  • Connector 1 Gender: Female
  • Connector 1 Housing Gender: Female
  • Connector 1 Number of Contacts: 4
  • Connector 1 Orientation: Straight
  • Connector 2: M12
  • Connector 2 Gender: Male
  • Connector 2 Housing Gender: Male
  • Connector 2 Number of Contacts: 4
  • Connector 2 Orientation: Straight
  • Cross Sectional Area: 0.75 mm²
  • Current Rating: 4000 mA
  • IP Rating: IP67
  • Length: 1m
  • Maximum Operating Temperature: 75 °C
  • Minimum Operating Temperature: -25 °C
  • Number of Cores: 4
  • Operating Temperature Range: -25–75 °C
  • Series: XS5
  • Sheath Colour: Grey
  • Sheath Material: TPE
  • Shielded/Unshielded: Unshielded
  • Voltage Rating: 250 VDC
