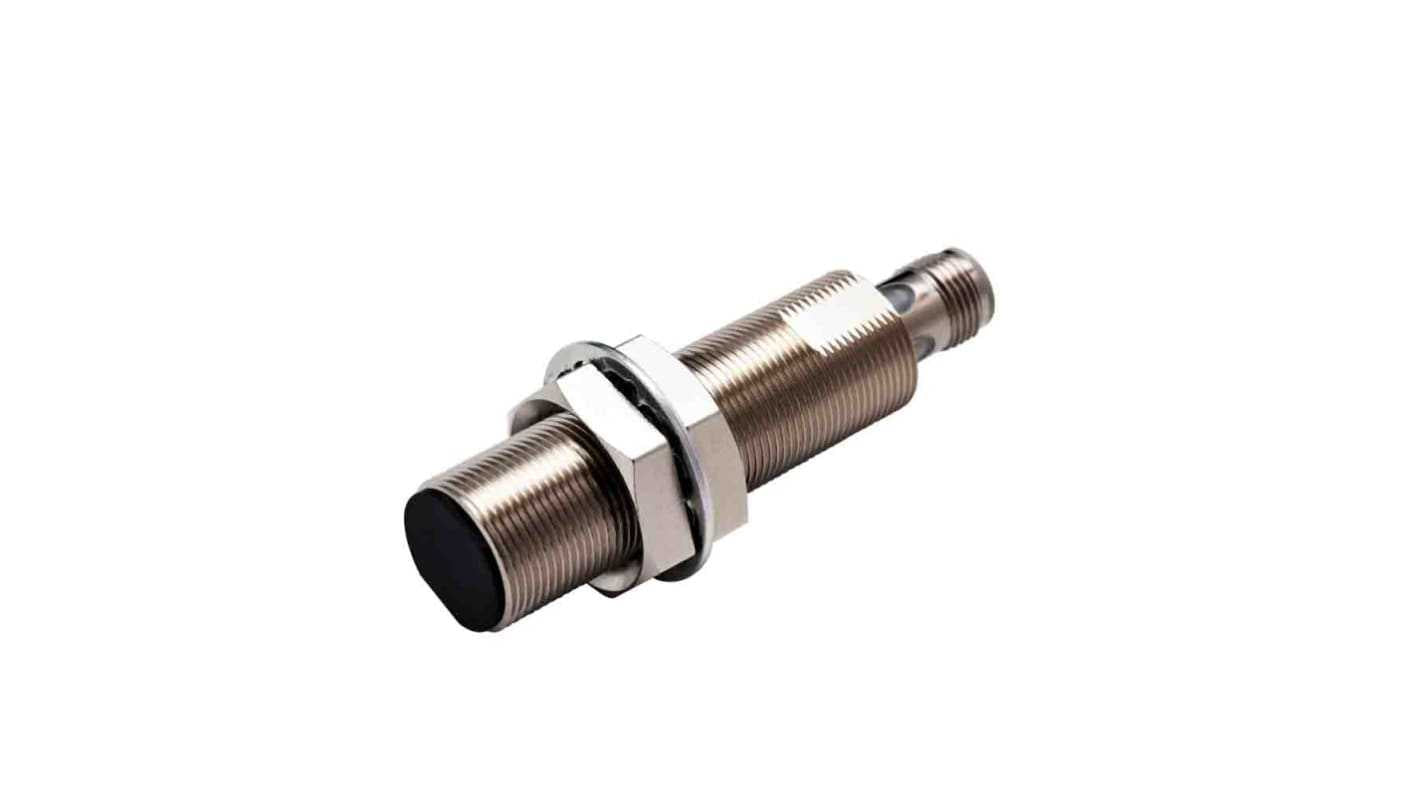

Omron Proximity Sensors E2E-X12B3DL18-M1

Omron Proximity Sensors E2E-X12B3DL18-M1

SKUE2E-X12B3DL18-M1BrandOmron
Regular price AED 251.91
Regular price Sale price AED 251.91
Sale Sold out
Shipping calculated at checkout.

Omron, Cylindrical proximity sensor, PNP, M18 x 1, sensing 12 mm, 10 30 VDC.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Omron
  • Thread Size: M18
  • Sensor Technology: Inductive
  • Detection Range: 12 mm
  • Body Style: Threaded Barrel
  • Digital Switching Output Type: PNP
  • Output Function: NO+NC
  • Connection Type: M12
  • Supply Voltage: 10 ? 30 V dc
  • IP Rating: IP67, IP67G, IP69K
  • Length: 77.3mm
  • Mounting Type: Quasi-Flush
  • Housing Material: Brass
  • Width: 18mm
  • Maximum dc Voltage: 30V
  • Minimum Operating Temperature: -25°C
  • Depth: 18mm
  • Shielding: Shielded
  • Maximum Switching Frequency: 500Hz
  • Communication Protocol: IO-LINK
  • Switching Current: 16 mA
  • Short Circuit Overload Protection: Yes
  • Reverse Polarity Protection: Yes
  • Maximum Operating Temperature: +70°C
  • Switching Frequency: 500 Hz
  • Series: E2E-NEXT
  • Country of Origin: China
