• ifm - OMH554
1 1

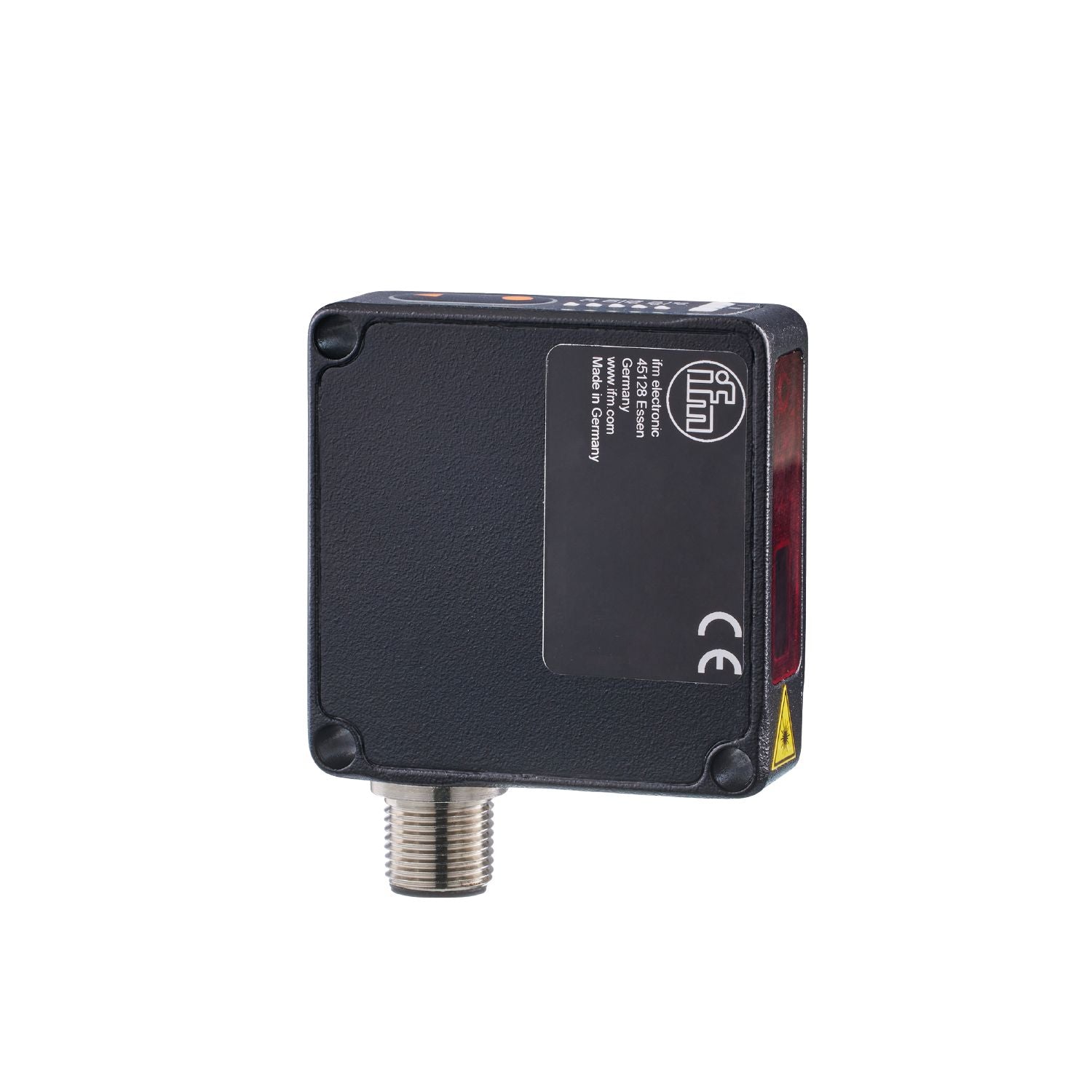

OMH554 - Rectangular Photoelectric Sensor, Distance Measurement (IP65; IP67)

OMH554 - Rectangular Photoelectric Sensor, Distance Measurement (IP65; IP67)

SKUOMH554Brandifm
AED 2,917.00
AED 2,917.00
Sale Sold out
Shipping calculated at checkout.

The OMH554 is a high-performance photoelectric sensor engineered for precise non-contact object detection in industrial environments. Designed in a versatile rectangular style with a rugged housing: diecast zinc; front pane: plastics housing, this sensor features distance measurement detection technology. Equipped with a PNP/NPN; (parameterisable) output and 1 x M12; coding: A connectivity, it offers a dependable solution for your automated manufacturing systems.

View full details
ParameterValue
Brand
ifm
Sensor Style
Rectangular
Detection Type
Distance Measurement
Output Type
PNP/NPN; (Parameterisable)
Switching Mode
normally open / normally closed; (parameterisable)
Electrical Connection
1 x M12; Coding: A
Maximum dc Voltage
2.2
Communication Protocol
1.1
Light Source
red light
ParameterValue
IP Rating
IP65; IP67
Maximum Current
100
Interface
IO-Link
Housing Material
Housing: Diecast Zinc; Front Pane: Plastics
Series
OMH554
Minimum Operating Temperature
0°C
Maximum Operating Temperature
60°C
Standards Met
EN 61000-4-2 ESD | 4 kV CD / plastics; | 8 kV AD / metal; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-6 HF conducted | 10 V; EN 61000-4-4 Burst | 2 kV; EN 55011 | class B
