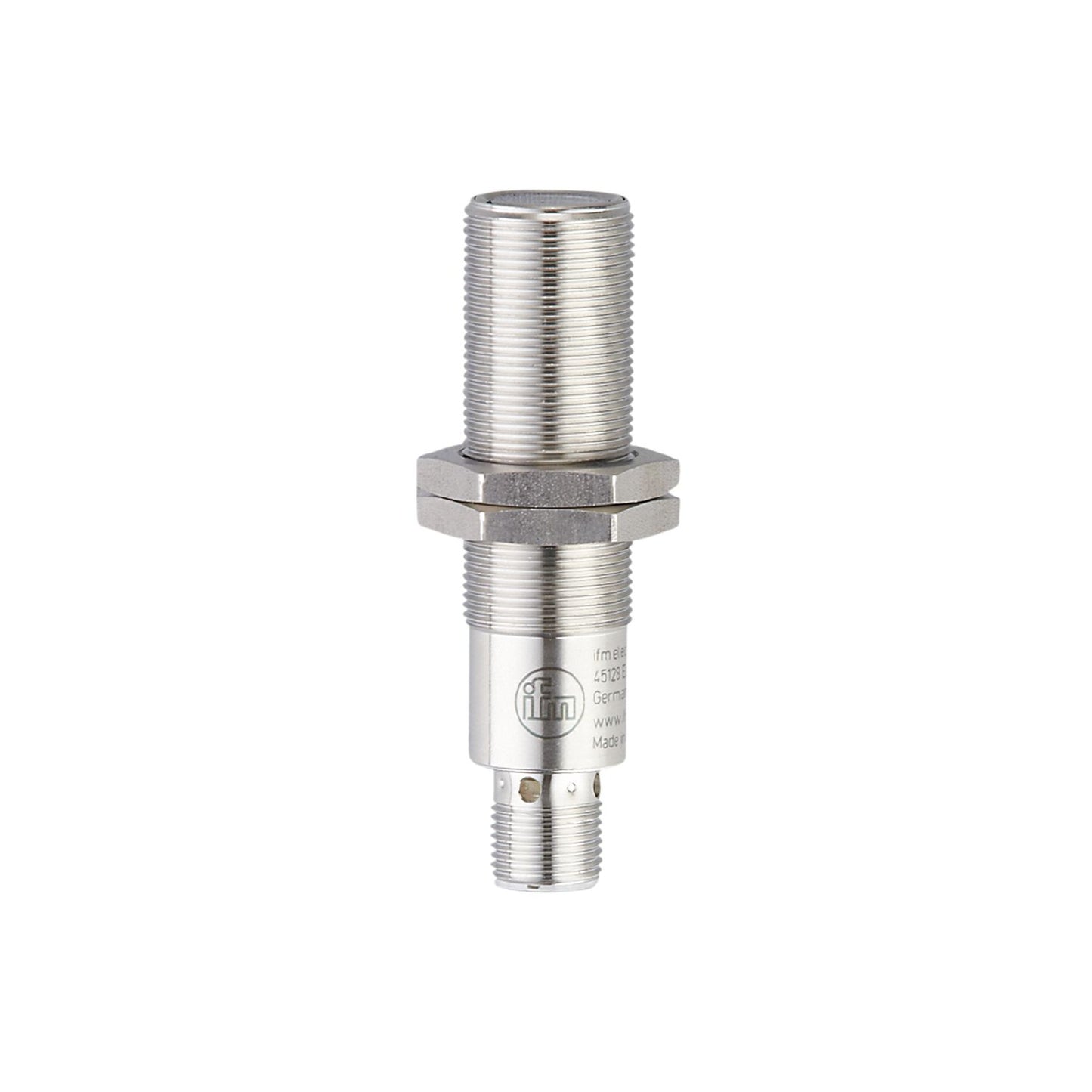

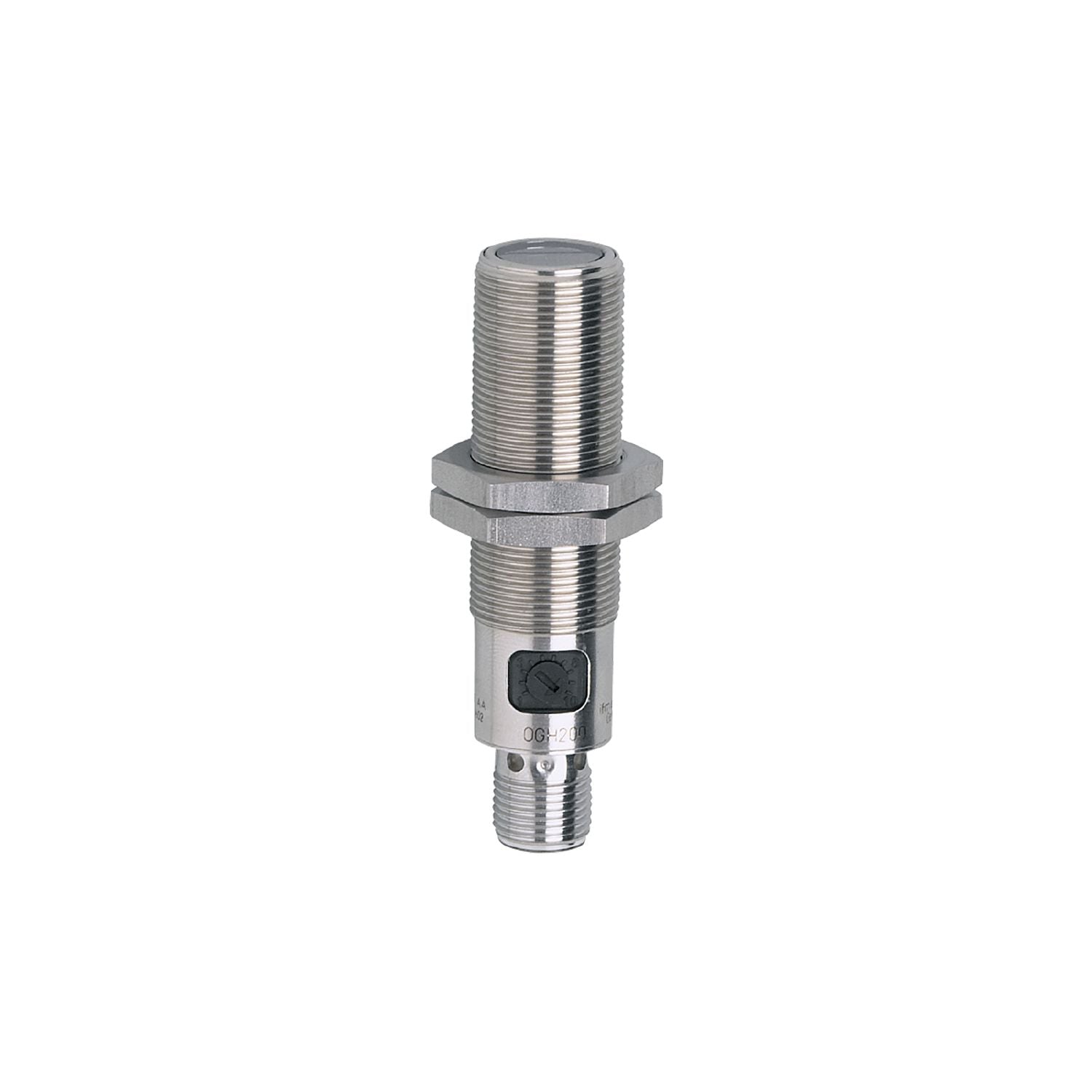

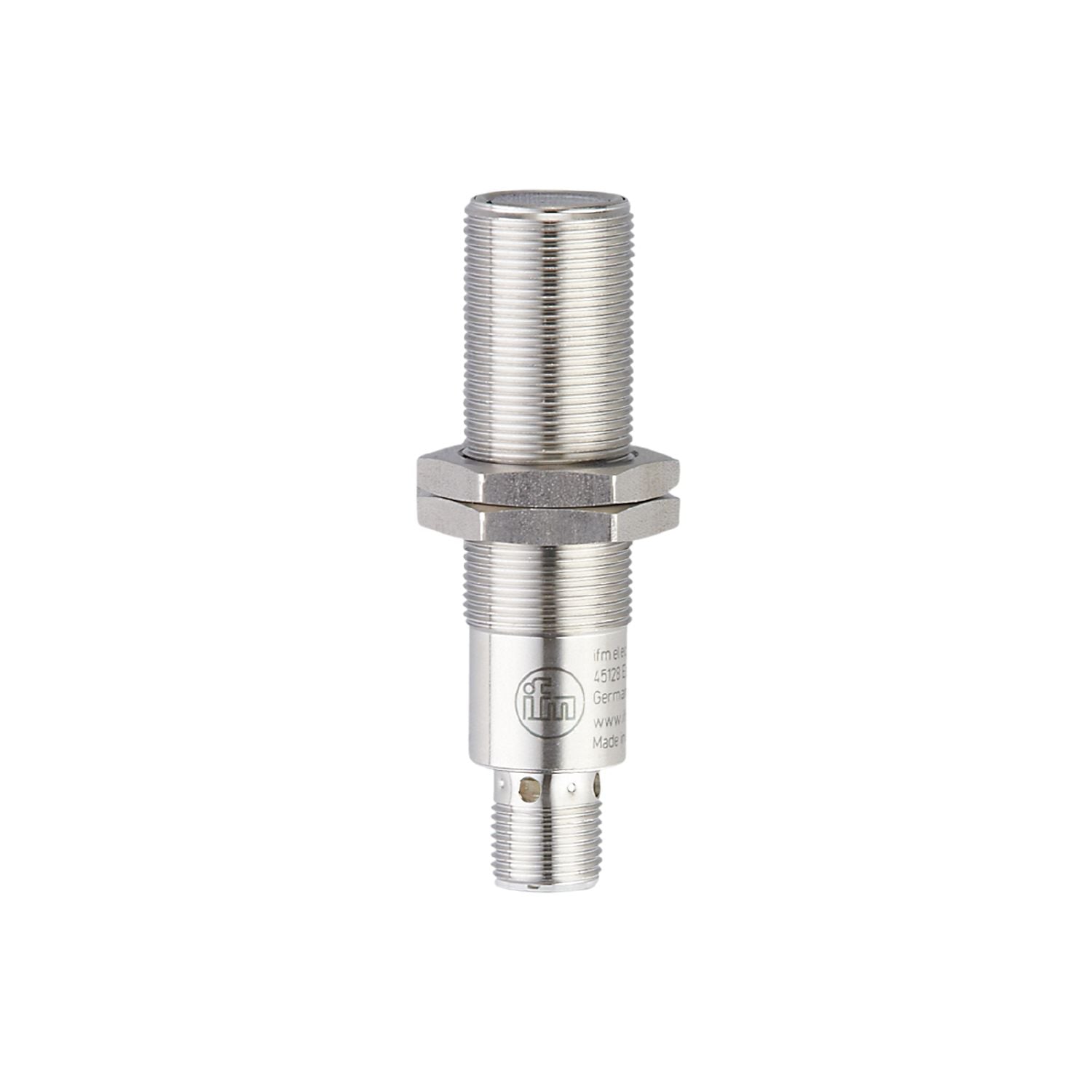

OGH202 - Cylindrical Photoelectric Sensor, Background Suppression (< 100; (white paper 200 x 200 mm 90% remission))

OGH202 - Cylindrical Photoelectric Sensor, Background Suppression (< 100; (white paper 200 x 200 mm 90% remission))

SKUOGH202Brandifm
AED 744.00
AED 744.00
Sale Sold out
Shipping calculated at checkout.

The OGH202 is a high-performance photoelectric sensor engineered for precise non-contact object detection in industrial environments. Designed in a versatile cylindrical style with a rugged housing: stainless steel; PA; Sealing: FKM housing, this sensor features background suppression detection technology with an impressive sensing range of < 100; (white paper 200 x 200 mm 90% remission). Equipped with a PNP output and 1 x M12; coding: A connectivity, it offers a dependable solution for your automated manufacturing systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: ifm
  • Sensor Style: Cylindrical
  • Detection Type: Background Suppression
  • Detection Range: < 100; (White Paper 200 x 200 mm 90% Remission)
  • Output Type: PNP
  • Switching Mode: light-on mode
  • Electrical Connection: 1 x M12; Coding: A
  • Maximum dc Voltage: 2.5
  • Light Source: red light
  • IP Rating: IP67
  • Maximum Current: 200
  • Housing Material: Housing: Stainless Steel; PA; Sealing: FKM
  • Series: OGH202
  • Minimum Operating Temperature: -25°C
  • Maximum Operating Temperature: 60°C
  • Standards Met: EN 60947-5-2 |
  • Thread Size: M18 x 1
