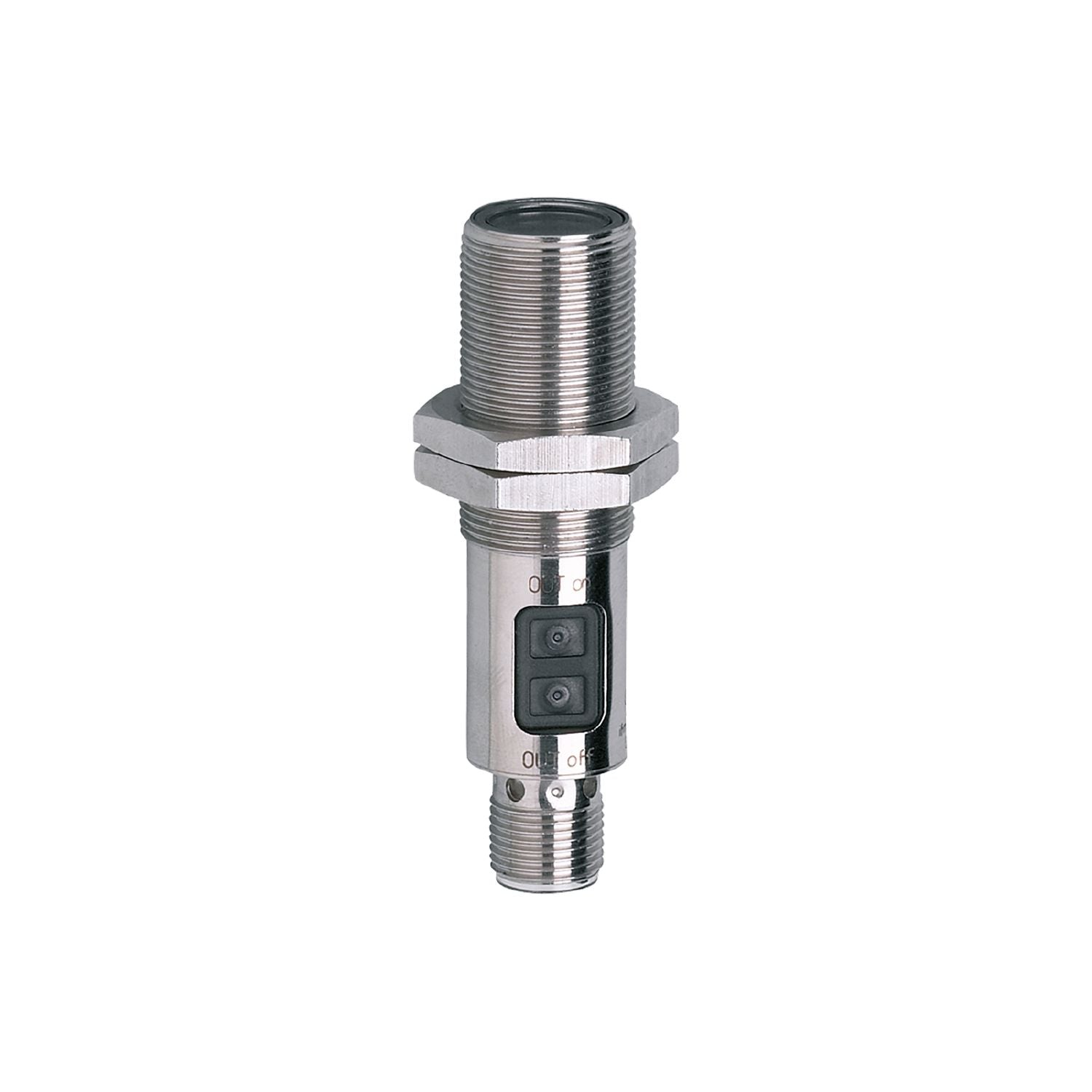

OGE304 - Cylindrical Photoelectric Sensor, Through-Beam Receiver (< 25)

OGE304 - Cylindrical Photoelectric Sensor, Through-Beam Receiver (< 25)

SKUOGE304Brandifm
AED 654.00
AED 654.00
Sale Sold out
Shipping calculated at checkout.

The OGE304 is a high-performance photoelectric sensor engineered for precise non-contact object detection in industrial environments. Designed in a versatile cylindrical style with a rugged stainless steel (316L/1.4404); PA; LCP; EPDM; TPU housing, this sensor features through-beam receiver detection technology with an impressive sensing range of < 25. Equipped with a PNP output and 1 x M12; coding: A connectivity, it offers a dependable solution for your automated manufacturing systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: ifm
  • Sensor Style: Cylindrical
  • Detection Type: Through-Beam Receiver
  • Detection Range: < 25
  • Output Type: PNP
  • Switching Mode: light-on/dark-on mode; (programmable)
  • Electrical Connection: 1 x M12; Coding: A
  • Maximum dc Voltage: 2.5
  • Light Source: red light
  • IP Rating: IP65; IP67; IP68; IP69K
  • Maximum Current: 150; (200 (...60 ∞C))
  • Housing Material: Stainless Steel (316L/1.4404); PA; LCP; EPDM; TPU
  • Series: OGE304
  • Minimum Operating Temperature: -25°C
  • Maximum Operating Temperature: 80°C
  • Standards Met: EN 60947-5-2 |
  • Thread Size: M18 x 1
