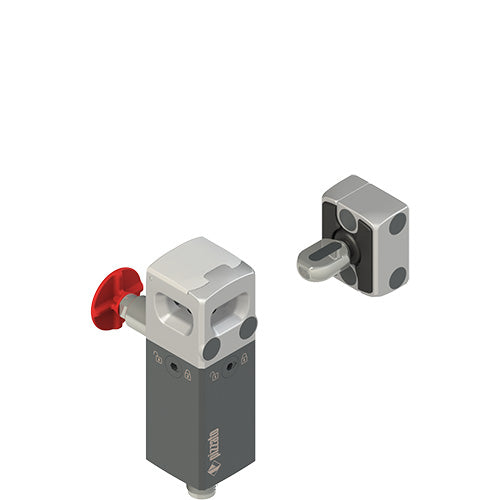

NX P52CE1SMK-F61 - Metal head, glass fibre reinforced technopolymer Safety Interlock Switch with RFID safety switch with lock - Mode 2 Lock

Name: NX P52CE1SMK-F61 - Metal head, glass fibre reinforced technopolymer Safety Interlock Switch with RFID safety switch with lock - Mode 2 Lock
Brand: Pizzato
SKU: NX P52CE1SMK-F61
Price: 1263.00 AED
Availability: InStock

SKUNX P52CE1SMK-F61BrandPizzato

AED 1,263.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The NX P52CE1SMK-F61 is a highly durable safety interlock switch designed to provide reliable access control for industrial machinery. Featuring a robust metal head, glass fibre reinforced technopolymer housing and a bistable solenoid with hex-key release on three sides lock style, this switch ensures that hazardous equipment remains secure during operation. It comes equipped with 2no (os1, os2) - pnp ossd outputs, 0.25 a safety contacts for dependable safety circuit integration and utilizes a standard m12 connector, 12-pole, axial connection type for straightforward installation. This rfid safety switch with lock - mode 2 accessory is an essential component for maintaining a safe and compliant manufacturing environment.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Pizzato
Actuator Type: VN NX-F61 - High coding level - RFID 125 kHz
Lock Style: Bistable Solenoid With Hex-Key Release On Three Sides
Accessory Type: RFID Safety Switch With Lock - Mode 2
Normal State Configuration: Mode 2: Safety outputs active when actuator inserted (for machines without inertia)
Lock Type: Three-side hex-key release - Bistable - 6000 N holding force
Actuator Included: No - Sold separately (VN NX-F61)
Safety Contacts: 2NO (OS1, OS2) - PNP OSSD Outputs, 0.25 A
Maximum AC Voltage: 24 Vdc
Maximum DC Voltage: 24 Vdc
Connection Type: M12 Connector, 12-pole, Axial
Housing Material: Metal Head, Glass Fibre Reinforced Technopolymer
Range: NX series RFID safety switches

IP Rating: IP67, IP69K
Hazardous Area Certification: Not specified
Number of Head Directions: 3 (front + two sides)
Dimensions: 30 mm (W) x 30 mm (D) x 94.3 mm (L)
Series: NX
Maximum Operating Temperature: +50°C
Depth: 30 mm
Standards Met: EN ISO 14119, EN 60947-5-3, EN IEC 60947-1, EN 60204-1, EN ISO 12100, EN 60529, EN IEC 61000-6-2, EN IEC 61000-6-3, EN 61508-1, EN 61508-2, EN 61508-3, EN ISO 13849-1, EN ISO 13849-2, EN IEC 62061, EN IEC 61326-1, EN 61326-3-1, EN IEC 63000, ETSI EN 301 489-1, ETSI EN 301 489-3, ETSI EN 300 330-2, UL 508, CSA C22.2 No.14, ISO 20653 (IP69K)
Minimum Operating Temperature: -20°C
Length: 94.3 mm
Auxiliary Contacts: OS1, OS2: 2NO safety outputs (PNP OSSD, 0.25 A); O3: Actuator inserted signal (PNP, 0.1 A); O4: Actuator locked signal (PNP, 0.1 A); I5: EDM feedback input
Width: 30 mm
Maximum Current: 0.25 A
