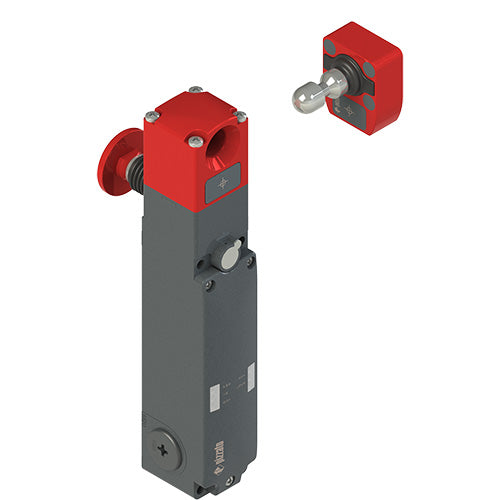

NG 2D7E421A-F31 - Metal (powder coated) Safety Interlock Switch with Solenoid lock (energised to lock) with escape release button Lock

Name: NG 2D7E421A-F31 - Metal (powder coated) Safety Interlock Switch with Solenoid lock (energised to lock) with escape release button Lock
Brand: Pizzato
SKU: NG 2D7E421A-F31
Price: 1886.00 AED
Availability: InStock

SKUNG 2D7E421A-F31BrandPizzato

AED 1,886.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The NG 2D7E421A-F31 is a highly durable safety interlock switch designed to provide reliable access control for industrial machinery. Featuring a robust metal (powder coated) housing and an escape release button lock style, this switch ensures that hazardous equipment remains secure during operation. It comes equipped with 2 x ossd outputs (pnp) safety contacts for dependable safety circuit integration and utilizes a standard m20x1.5 threaded conduit entry connection type for straightforward installation. This solenoid lock (energised to lock) with escape release button accessory is an essential component for maintaining a safe and compliant manufacturing environment.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Pizzato
Actuator Type: RFID transponder (high coding level)
Lock Style: Escape Release Button
Normal State Configuration: 2NO (OSSD outputs active when actuator locked)
Lock Type: Solenoid lock (energised to lock) with escape release button
Actuator Included: Yes
Safety Contacts: 2 x OSSD Outputs (PNP)
Maximum AC Voltage: 24Vdc
Maximum DC Voltage: 24Vdc
Connection Type: Threaded Conduit Entry M20x1.5
Housing Material: Metal, Powder Coated
Range: PL e, SIL 3, Cat. 4
IP Rating: IP67, IP69K

Hazardous Area Certification: No
Number of Head Directions: 1
Dimensions: Dimensions: 59.4mm (L) x 40mm (W) x 144mm (D)
Series: NG
Maximum Operating Temperature: +50°C
Depth: 144mm
Standards Met: EN ISO 14119, EN 60947-5-3, EN 60947-1, IEC 60204-1, EN ISO 12100, IEC 60529, EN ISO 13849-1, EN IEC 62061, UL 508, CSA C22.2 No. 14
Minimum Operating Temperature: -20°C
Length: 59.4mm
Auxiliary Contacts: Yes (2 signalling outputs)
Width: 40mm
Maximum Current: 0.25A
