NG 2D1D314L-F31 - Metal powder coated Safety Interlock Switch with Spring lock (de-energized), Mode 1 (locked) Lock

Name: NG 2D1D314L-F31 - Metal powder coated Safety Interlock Switch with Spring lock (de-energized), Mode 1 (locked) Lock
Brand: Pizzato
SKU: NG 2D1D314L-F31
Price: 2231.00 AED
Availability: InStock

SKUNG 2D1D314L-F31BrandPizzato

AED 2,231.00

Sale Sold out

Shipping calculated at checkout.

Quantity

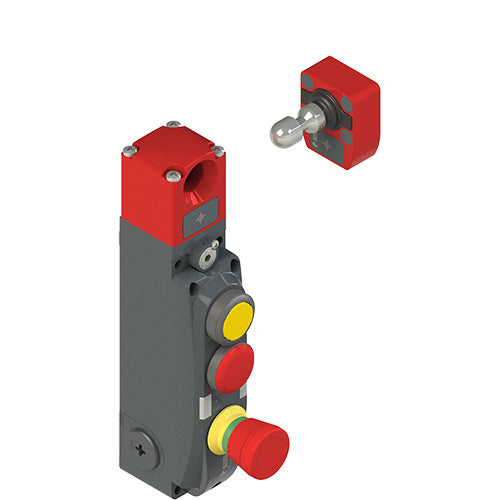

The NG 2D1D314L-F31 is a highly durable safety interlock switch designed to provide reliable access control for industrial machinery. Featuring a robust metal powder coated housing and a solenoid lock style, this switch ensures that hazardous equipment remains secure during operation. It comes equipped with 2 (os1, os2) safety contacts for dependable safety circuit integration and utilizes a standard internal terminal strip connection type for straightforward installation. This spring lock (de-energized), mode 1 (locked) accessory is an essential component for maintaining a safe and compliant manufacturing environment.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Pizzato
Actuator Type: RFID
Lock Style: Solenoid Lock
Accessory Type: Spring Lock (de-Energized), Mode 1 (locked)
Normal State Configuration: Normally open
Lock Type: Solenoid
Actuator Included: No
Safety Contacts: 2 (OS1, OS2)
Maximum AC Voltage: N/A (DC only)
Maximum DC Voltage: 24 Vdc
Connection Type: Internal Terminal Strip

Housing Material: Metal, Powder Coated
Range: NG
IP Rating: IP67, IP69K
Number of Head Directions: 1
Dimensions: 78 x 64 x 42 mm (approx, body)
Series: NG
Maximum Operating Temperature: +50°C
Standards Met: EN ISO 14119, EN 60947-5-3, EN 60947-1, EN 60204-1, EN ISO 12100, EN 60529, EN 61508, EN ISO 13849, EN IEC 62061
Minimum Operating Temperature: -20°C
Auxiliary Contacts: Yes (O3, O4)
Maximum Current: 0.25 A (per output)
