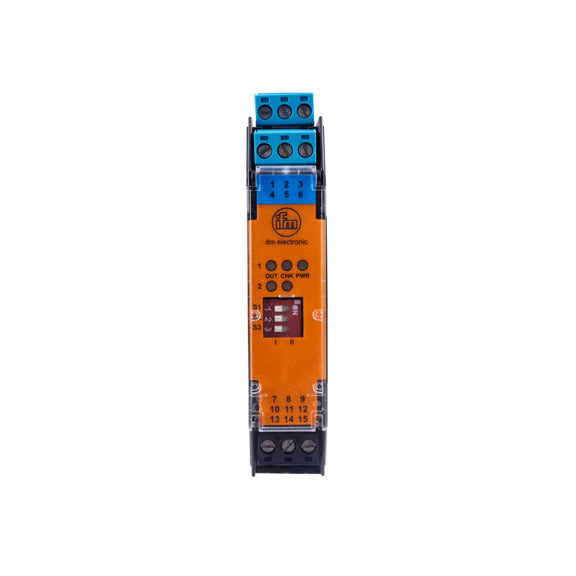

The IFM N0533A is a switching amplifier used to operate intrinsically safe NAMUR sensors located in hazardous areas from a safe-area control cabinet. It is suited for interfacing Ex ia inductive and NAMUR proximity sensors to a PLC while providing galvanic isolation, short-circuit and wire-break monitoring. Its two channels each provide a parameterisable relay changeover output, ATEX [Ex ia] associated apparatus marking, LED indication of operation, switching status and faults, and quick DIN-rail mounting. The amplifier must be mounted outside the hazardous area.
N0533A Specifications
Brand
IFM
Product Type
Switching amplifier for NAMUR sensors
IFM Type Code
NV1221/24VDC/RL/1D/1G
Channels
2
Output
Relay, 1 changeover contact per channel (parameterisable)
Contact Rating
253 V AC / 2 A; 40 V DC / 2 A (ohmic)
Monitoring
Short-circuit and wire-break
ATEX Marking
II (1) G [Ex ia Ga] IIC; II (1) D [Ex ia Da] IIIC (PTB / IECEx)
