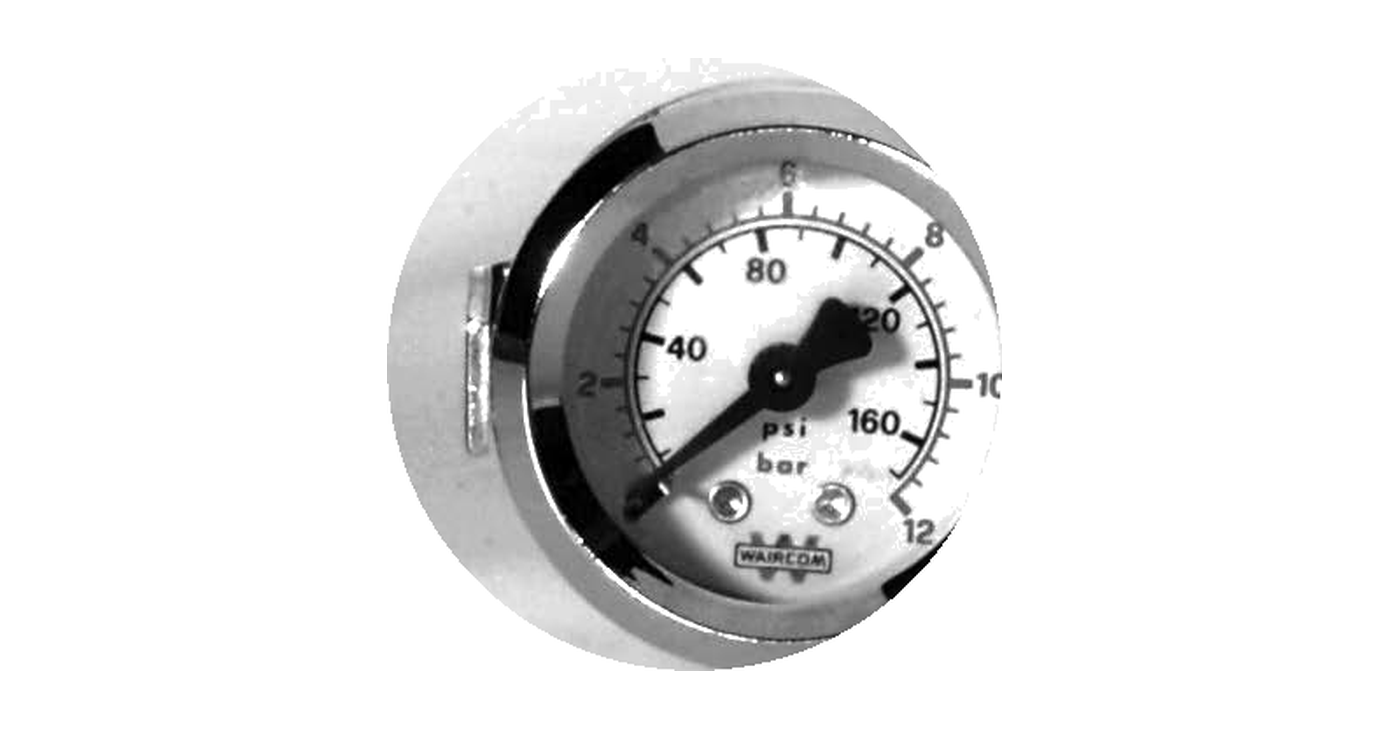

Waircom MP4/12 - MA Series Axial with Bracket Pressure Gauge (0 ÷ 12 bar Scale x Ø40 mm Dial)

Waircom MP4/12 - MA Series Axial with Bracket Pressure Gauge (0 ÷ 12 bar Scale x Ø40 mm Dial)

SKUMP4/12BrandWaircom
AED 87.00
AED 87.00
Sale Sold out
Shipping calculated at checkout.

The Waircom MP4/12 is a precision industrial pressure instrument from the reliable MA Series range. Engineered for panel mounting with bracket, this commercial-grade pressure gauge features a compact Ø40 mm dial diameter and monitors pressure ranges across a 0 ÷ 12 bar scale. Built to Cl. 1.6 (EN 837-1) structural standards, the robust assembly consists of a durable galvanized steel case paired with standard G 1/8 rear pneumatic fluid connections. Designed for versatile process environments, it supports stable operating performance throughout fluid media working temperatures of 0 ÷ +70 (–20 with dry air).

View full details
ParameterValue
Brand
Waircom
Series
MA Series
Gauge Type
Axial with Bracket
Mounting Type
Panel mounting with bracket
Dial Diameter
Ø40 mm
Scale
0 ÷ 12 bar
Port Size
G 1/8
Accuracy
Cl. 1.6 (EN 837-1)
ParameterValue
Case Material
Galvanized steel
Gauge Crystal
Kostil
Port Material
Brass
Spring Material
Copper
Movement Material
Brass
Dial Material
White ABS
Working Temperature
0 ÷ +70 (–20 with dry air)
