Molex Crimp Contacts 50058-8100

Molex Crimp Contacts 50058-8100

SKU50058-8100BrandMolex
AED 0.78
AED 0.78
Sale Sold out
Shipping calculated at checkout.

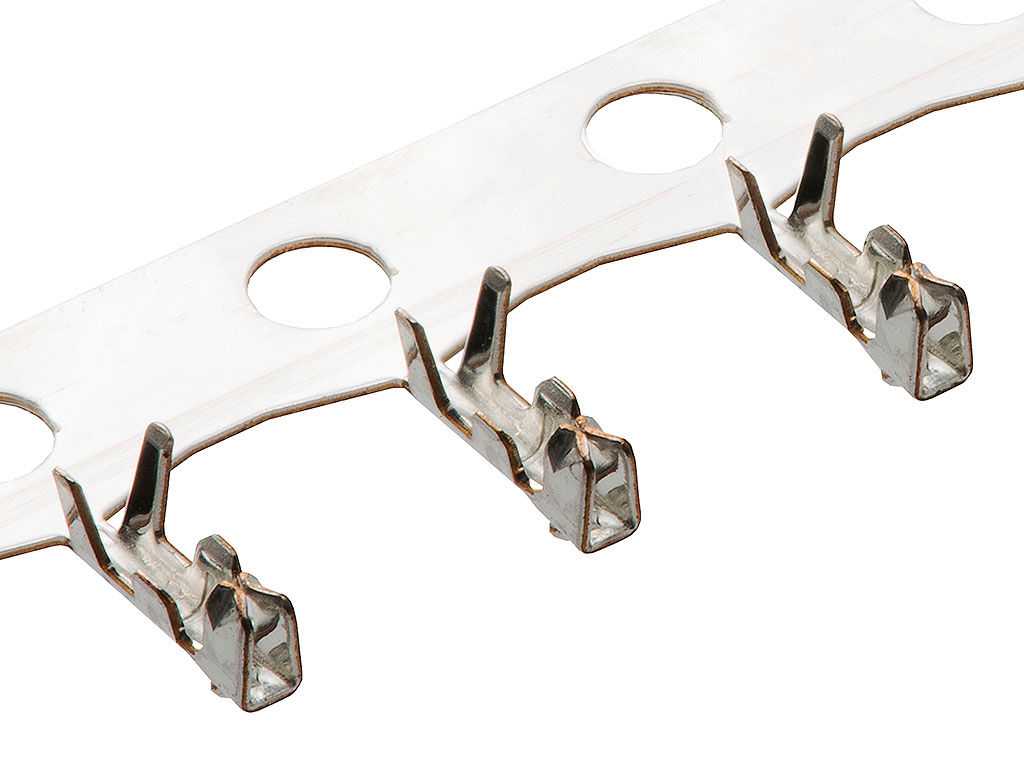

Molex, 1.25mm Pitch, PicoBlade Female Crimp Terminal, Tin (Sn) Plating, 28-32 AWG, Bag

View full details
ParameterValue
Brand
Molex
Gender
Female
For Use With
PicoBlade Connector Housing
Series
PICOBLADE
Minimum Wire Size mm²
0.03mm²
Minimum Wire Size (mm²)
0.03mm²
Termination Method
Crimp
Maximum Wire Size mm²
0.08mm²
Maximum Wire Size (mm²)
0.08mm²
Minimum Wire Size AWG
32AWG
Contact Plating
Tin
ParameterValue
Minimum Wire Size (AWG)
32AWG
Maximum Wire Size AWG
28AWG
Contact Material
Phosphor Bronze
Maximum Wire Size (AWG)
28AWG
Series Number
50058
Maximum Contact Resistance
20m?
Minimum Operating Temperature
-40°C
Maximum Current
1A
Maximum Operating Temperature
+85°C
Country of Origin
Japan
